BlackBox ACX2MT-DLH-SM

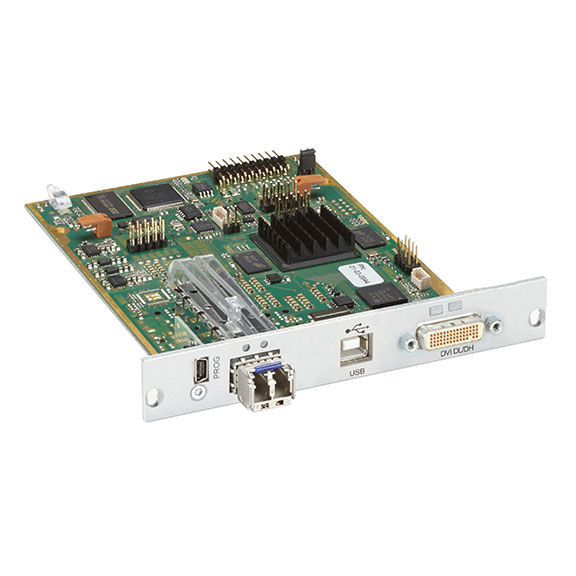

Fiber optic DKM transmitter card, Duallink/Dualhead DVI plus USB-HID, incl. DualLink cable kit

Modular DKM Extender Base Modules:

Configure your KVM Extender with interfaces tailored to your needs.

Base modules support video via DVI-D, DVI-I, HDMI, or DisplayPort with (2) USB keyboard/mouse ports. An optional peripheral module offers (4) transparent Highspeed USB 2.0 ports (480 Mbps). Choose between CATx and fiber links (supporting Multimode and Singlemode) for distances up to 140m (CATx), 1000m (MM), or 10km (SM). These extenders provide pixel-perfect resolutions up to 2048x1152 (Single Link DVI), 2560x1600/2x2K (Dual Link DVI), HDMI up to 1080p, or DisplayPort up to 4K.

Specifications:

• Video resolutions: up to 2048x1152 (Single Link DVI), 2560x1600/2x2K (Dual Link DVI), HDMI up to 1080p, DisplayPort up to 4K
• Connection types: CATx or fiber (Multimode and Singlemode)
• Maximum distances: 140m (CATx), 1000m (MM), 10km (SM)
• Highspeed video options: 2.5 Gbps for demanding graphics applications
• Supported video formats: DVI-D, DVI-I, HDMI, DisplayPort
• USB ports: (2) USB HID for keyboard/mouse, optional transparent USB 2.0 (480 Mbps)
• Special features: Redundant links, 2-port switch for local/remote consoles
• Warranty: 2 years Double Diamond™ (Standard)

Base Modules:

The base modules offer one or two video connections and (2) USB HID ports for keyboard and mouse. These modules allow selection between CATx or LC fiber connections and support a wide range of video resolutions. They provide resolutions up to 2560x1600 for Dual Link DVI, HDMI up to 1080p, and DisplayPort up to 4K. Additionally, there are specialized modules with redundant links and integrated 2-port switches for extended functionality.

Resolutions:

Thanks to lossless digital video transmission, the DKM extenders deliver outstanding image quality, supporting 24-bit color depth and pixel-perfect resolutions up to 2048x1152 (Single Link DVI), 2560x1600 (Dual Link DVI), HDMI up to 1080p, and DisplayPort up to 4K.

DKM Modular Extenders Overview:

The enclosures are available as desktop versions with 2, 4, or 6 slots, or as 19-inch rack versions with 21 slots. For critical applications, enclosures with redundant power supplies and various AC/DC power options are available. Desktop enclosures can be wall-mounted or placed under desks using optional kits. The extenders are ideal for demanding graphic applications and can be integrated with DKM FX and FXC Matrix Switches for complex installations.

Free Expert Consultation:

For the best configuration tailored to your needs, contact our product experts at 0811/5541-110 or use our callback service.

Transmitter Module Connections:

• All: (1) USB Type B, (1) USB Type B mini (upgrade)
• ACX1M1T-DHID-C: (1) DVI-D, (1) RJ-45
• ACX1M1T-DHID-SM/ACX1MT-DHS-SM: (1) DVI-D, (2) LC
• ACX1M1T-DHID-2C: (1) DVI-D, (2) RJ-45
• ACX1M1T-DHID-2S/ACX1MT-DHS-2S: (1) DVI-D, (4) LC
• ACX1MT-VDHID-C: (1) DVI-I, (1) RJ-45
• ACX1MT-VDHID-SM/ACX1MT-VDHS-SM: (1) DVI-D, (2) LC
• ACX1MT-VDHID-2C: (1) DVI-D, (2) RJ-45
• ACX1MT-VDHID-2S: (1) DVI-D, (4) LC
• ACX2MT-DHH-C: (1) DVI-D, (1) RJ-45 with Dual Head cable kit
• ACX2MT-DHH-SM: (2) DVI-D, (2) LC with Dual Head cable kit
• ACX2MT-DHH-2C: (1) DVI-D, (2) RJ-45 with Dual Head cable kit
• ACX2MT-DHH-2S: (2) DVI-D, (2) LC with Dual Head cable kit
• ACX2MT-DLH-C: (1) DVI-D, (1) RJ-45 with Dual Link cable kit
• ACX2MT-DLH-SM: (1) DVI-D, (2) LC with Dual Link cable kit
• ACX2MT-DLH-2C: (1) DVI-D, (2) RJ-45 with Dual Link cable kit
• ACX2MT-DLH-2S: (1) DVI-D, (4) LC with Dual Link cable kit
• ACX1MT-HDMI-C: (1) HDMI, (1) RJ-45
• ACX1MT-HDMI-SM: (1) HDMI, (2) LC
• ACX1MT-HDMI-2C: (1) HDMI, (2) RJ-45
• ACX1MT-HDMI-2S: (1) HDMI, (4) LC
• ACX1MT-HDO-C: Video only module (1) HDMI, (1) RJ-45
• ACX1MT-HDO-SM: Video only module (1) HDMI, (2) LC
• ACX1MT-HDM2-C: (2) HDMI, (1) RJ45
• ACX1MT-HDM2-SM: (2) HDMI, (2) LC
• ACX1MT-HDM2-2C: (2) HDMI, (2) RJ45
• ACX1MT-HDM2-2S: (2) HDMI, (4) LC
• ACX2MT-DPH-C: (1) DisplayPort, (1) RJ-45
• ACX2MT-DPH-SM/ACX2MT-DPHS-SM: (1) DisplayPort, (2) LC
• ACX2MT-DPH-2C: (1) DisplayPort, (2) RJ-45
• ACX2MT-DPH-2S/ACX2MT-DPHS-2S: (1) DisplayPort, (4) LC

Receiver Module Connections:

• All: (2) USB Type A, (1) USB Type B mini (upgrade)
• ACX1M1R-DHID-C: (1) DVI-D, (1) RJ-45
• ACX1M1R-DHID-SM/ACX1MR-DHS-SM: (1) DVI-D, (2) LC
• ACX1M1R-DHID-2C: (1) DVI-D, (2) RJ-45
• ACX1M1T-DHID-2S/ACX1MR-DHS-2S: (1) DVI-D, (4) LC
• ACX2MR-DHH-C: (1) DVI-D, (1) RJ-45 with Dual Head cable kit
• ACX2MR-DHH-SM: (2) DVI-D, (2) LC with Dual Head cable kit
• ACX2MR-DHH-2C: (1) DVI-D, (2) RJ-45 with Dual Head cable kit
• ACX2MR-DHH-2S: (2) DVI-D, (2) LC with Dual Head cable kit
• ACX2MR-DLH-C: (1) DVI-D, (1) RJ-45 with Dual Link cable kit
• ACX2MR-DLH-SM: (1) DVI-D, (2) LC with Dual Link cable kit
• ACX2MR-DLH-2C: (1) DVI-D, (2) RJ-45 with Dual Link cable kit
• ACX2MR-DLH-2S: (1) DVI-D, (4) LC with Dual Link cable kit
• ACX1MR-HDMI-C: (1) HDMI, (1) RJ-45
• ACX1MR-HDMI-SM: (1) HDMI, (2) LC
• ACX1MR-HDMI-2C: (1) HDMI, (2) RJ-45
• ACX1MR-HDMI-2S: (1) HDMI, (4) LC
• ACX1MR-HDO-C: Video only module (1) HDMI, (1) RJ-45
• ACX1MR-HDO-SM: Video only module (1) HDMI, (2) LC
• ACX1MR-HDSW-C: (2) HDMI, (1) RJ45, (1) USB Type B (requires 2 slots)
• ACX1MR-HDSW-SM: (2) HDMI, (2) LC, (1) USB Type B (requires 2 slots)
• ACX1MR-HDSW-2C: (2) HDMI, (2) RJ45, (1) USB Type B (requires 2 slots)
• ACX1MR-HDSW-2S: (2) HDMI, (4) LC, (1) USB Type B (requires 2 slots)
• ACX2MR-DPH-C: (1) DisplayPort, (1) RJ-45
• ACX2MR-DPH-SM/ACX2MR-DPHS-SM: (1) DisplayPort, (2) LC
• ACX2MR-DPH-2C: (1) DisplayPort, (2) RJ-45
• ACX2MR-DPH-2S/ACX2MR-DPHS-2S: (1) DisplayPort, (4) LC

TAA compliance: Yes, except ACX2MT-DLHS-2S
