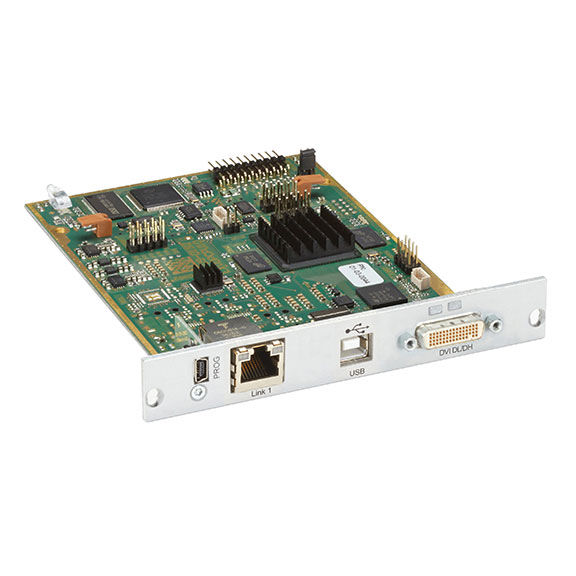

BlackBox ACX2MT-DLH-C
CATx DKM transmitter card, Duallink/Dualhead DVI plus USB-HID, incl. DualLink cable kit

Modular DKM Extender Base Modules:

Equip your KVM extender with interfaces tailored to your specific needs.

The modular DKM extenders offer flexible combinations of video and peripheral signals. Choose base modules with DVI-D, DVI-I, HDMI, or DisplayPort, and (2) USB ports for keyboard/mouse. Peripheral options include (4) transparent high-speed USB 2.0 ports (480 Mbps). The modules support CATx or fiber connections (Multimode and Singlemode) with distances up to 140m (CATx), 1000m (Multimode), or 10km (Singlemode).

Specifications:

• Video resolutions: up to 2048 x 1152 (Single Link DVI), 2560 x 1600/2x2K (Dual Link DVI), HDMI up to 1080p, DisplayPort up to 4K
• Connections: CATx or fiber (Multimode and Singlemode)
• Maximum distances: up to 140m (CATx), 1000m (Multimode), 10km (Singlemode)
• Bandwidth: High-speed options with 2.5 Gbps for demanding graphic applications
• Supported video formats: DVI-D, DVI-I, HDMI, DisplayPort
• USB ports: (2) USB HID for keyboard/mouse; optional transparent USB 2.0 ports (480 Mbps)
• Special functions: Redundant links, 2-port switch for local and remote consoles
• Warranty: 2 years Double Diamond™ (Standard)

Base Modules:

These modules feature one or two video ports and (2) USB HID ports for keyboard and mouse. You can choose CATx or LC fiber connections based on distance and bandwidth needs. They support resolutions up to 2560 x 1600 for Dual Link DVI, 1080p for HDMI, and 4K for DisplayPort. Modules with special functions like redundant links or integrated 2-port switches provide additional flexibility.

Resolutions:

With lossless digital video transmission, DKM extenders deliver superior image quality. The extenders support 24-bit color depth and pixel-perfect resolutions up to 2048 x 1152 (Single Link DVI), 2560 x 1600 (Dual Link DVI), HDMI up to 1080p, and DisplayPort up to 4K over the full distance.

DKM Modular Extenders Overview:

The enclosures are available in desktop versions with 2, 4, or 6 slots, and as a 19-inch version with 21 slots. For critical applications, enclosures with redundant power supplies and various AC/DC power options are available. FXC switching modules can integrate up to 8 CATx or fiber ports.

TAA-compliant: Yes
