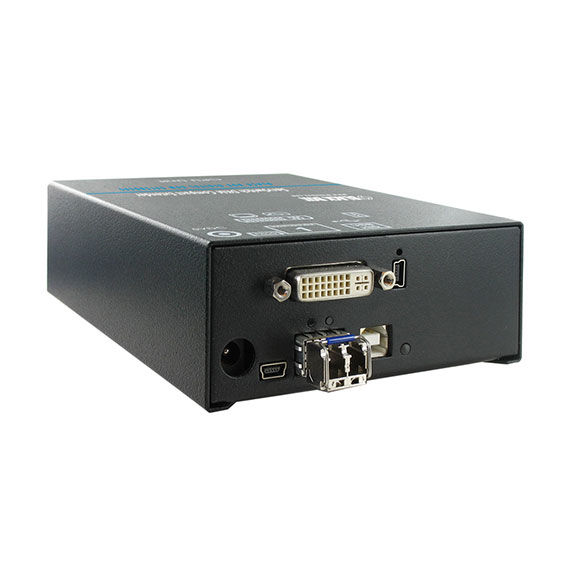

BlackBox ACX1T-11V-SM SM DKM transmitter: 1x SL DVI-I, 2x USB HID, no audio

The compact DKM Extender single units are the perfect solution for connecting user consoles and computers to your DKM FX or DFM FXC switching system. With a range of up to 140 meters over CATx cable, 1,000 meters over multimode fiber optic cable or up to 10 kilometers over singlemode fiber optic, they offer pixel-perfect video transmission in impressive quality. These extenders support a resolution of up to 2048 x 1152 at 60Hz and 24-bit color depth, which guarantees sharp and clear image displays. They also offer USB HID connections for keyboard and mouse with true USB emulation, which enables the use of advanced features.

These compact devices are ideal for high-bandwidth video applications as they are available in special high-speed versions with 2.5 Gbps. For additional flexibility, there are models with options for analog and digital audio, serial data transmission and USB 2.0 interfaces. Local monitoring capabilities with separate splitter cables and the option of rack mounting or DIN rail mounting make the extenders a versatile choice for industrial or business applications. Its compact design saves space, and thanks to the 48,3 cm ( 19 inch ) rack mounting, up to four units can be installed in one height unit (1U).- Maximum

Technical specifivations:

Range:
- Up to 140 m over CATx cables
- Up to 1,000 m over multimode fiber
- Up to 10 km over single-mode fiber

• Video Resolution:
- DVI-D: Up to 2048 x 1152 at 60Hz, 24-bit color depth
- VGA: Scalable up to 1920 x 1200

• Interfaces:
- Transmitter: DVI-I, USB Type B, RJ45 (CATx) or LC (fiber), Mini-USB for flash upgrade, power connector
- Receiver: DVI-I, USB Type A, RJ45 (CATx) or LC (fiber), Mini-USB for flash upgrade, power connector

• Audio: Analog and digital audio transmission (depending on model)
• USB Support: USB HID and USB 2.0 (depending on model)
• Serial Interface: RS232/V.24 up to 19.2 Kbps
• Mounting: 48,3 cm ( 19 inch ) rack-mount (up to 4 devices in 1U) or DIN-rail mounting
• Power Supply: 90 to 240 VAC, 47 to 63 Hz, external power supply with IEC320 connection
• Dimensions:
- ACX1T-11V: 2.9H x 10.3W x 14.3D cm
- Other models: 4.3H x 10.3W x 14.3D cm

• Package Contents:
- (1) Transmitter
- (1) Receiver
- (1) Power supply
- (1) Power cable
- Quick Starter Guide
- Additional cables depending on model: USB, DVI-I to VGA, Toslink, Cinch, DB9, audio cables
