BlackBox ACX1MR-DHID-2S

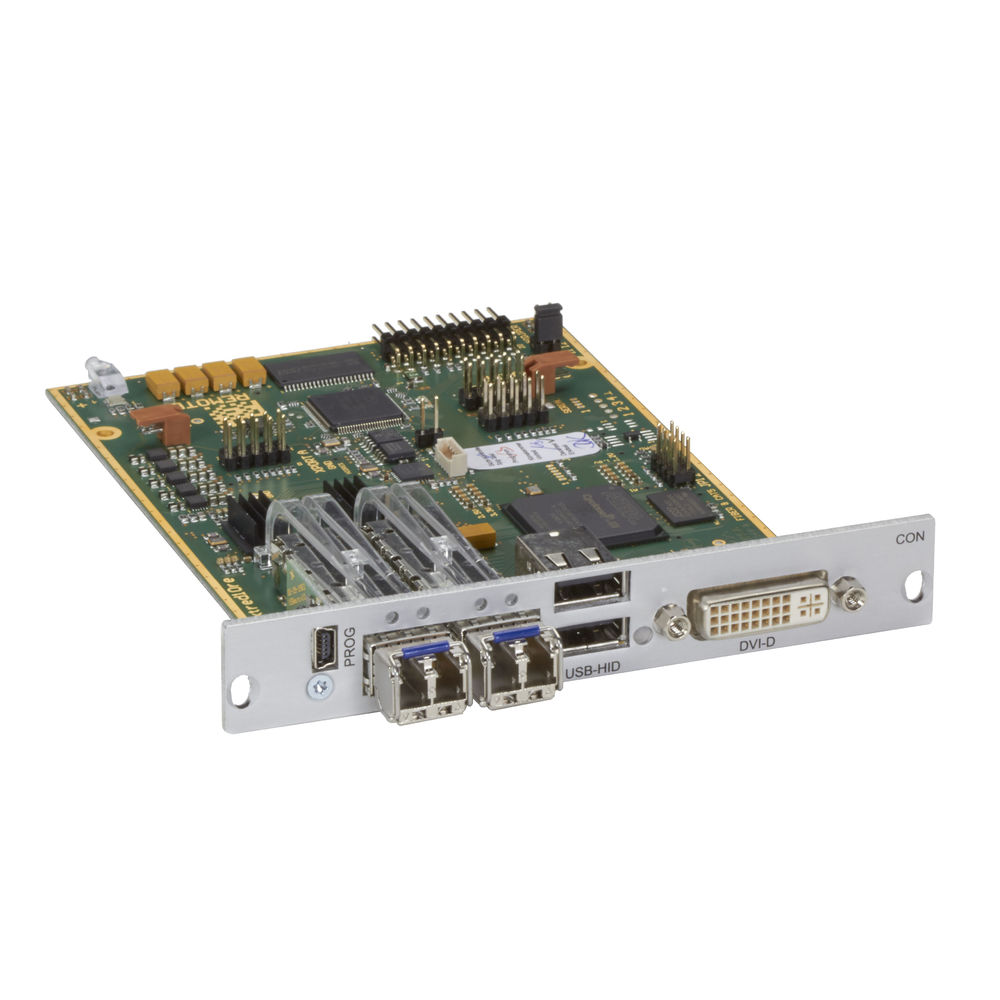

SM DKM receiver card, dual DVI plus USB HID for modular housing, dual single mode

Modular DKM Extender Base Modules

Customize your KVM extender with interfaces tailored to your needs.

Base modules with DVI-D, DVI-I, HDMI, or DisplayPort video and (2) USB keyboard/mouse ports.
Peripheral option with (4) transparent High-Speed USB 2.0 ports (480 Mbps).
Choose between CATx and fiber links (fiber supports multimode and singlemode).
Distances up to 140m (CATx), 1000m (Multimode), or 10km (Singlemode).
Pixel-perfect resolutions up to 2048 x 1152 (Single Link DVI), up to 2560 x 1600/2x2K (Dual Link DVI), HDMI up to 1080p, or DisplayPort up to 4K across full distance.
High-speed video options with 2.5 Gbps bandwidth for demanding graphic applications.
Supports multiple video channels for advanced graphic applications.
Use the modules in modular DKM extender chassis.
Combine various interfaces and extend KVM signals according to your needs.
Configure one chassis with transmitter cards at the computer and one with receiver cards at the console.
Use these extenders for point-to-point KVM extensions or in the KVM matrix switching systems of the DKM FX and DKM FXC series.
Warranty: 2 years Double Diamond™ (Standard)

The modular DKM KVM extenders offer the broadest selection of combinations for video and peripheral signals, ensuring that you can find the right KVM extender for even the most specific application.

Base Modules:

The modules on this page provide one or two video ports and two USB HID ports for keyboard and mouse. They also offer CATx or LC fiber connections for the remote end or, in a switched environment, for the central KVM switch. Each modular DKM extender chassis must be equipped with at least one base module.

Choose between CATx cables, fiber with 1 Gbps, or high-speed fiber with 2.5 Gbps depending on the desired distance and video bandwidth. CATx connections are ideal for shorter distances up to 140m. The fiber modules support multimode up to 1 km and singlemode cables up to 10 km. The 2.5 Gbps high-speed modules are designed for demanding graphic applications, offering double the normal bandwidth.

Base modules are available in different video formats:

• Single Link DVI-D
• DVI-I with VGA input and DVI-D output
• Dual Head DVI-D
• HDMI
• DisplayPort – each with two USB HID ports for keyboard and mouse.

Resolutions:

By transmitting the video signal digitally without loss of quality, the images are as sharp as if they were connected directly to the workstation. Advanced video compression algorithms support 24-bit color depth for smooth color gradients. Single Link DVI delivers pixel-perfect resolutions up to 2048 x 1152, Dual Link DVI up to 2560 x 1600/2x2K, HDMI up to 1080p, and DisplayPort up to 4K across the full distance.

Chassis Options:

• Desktop chassis with two, four, or six slots.
• 48,3 cm ( 19 inch ) rackmount chassis with 21 slots.
• Available with redundant power supplies, internal or external power supplies, AC or DC power (12V, 24V, 48V).

Transmitter Module Connections:

• All: (1) USB Type B, (1) Mini USB Type B (Upgrade)

Base Module Examples:

• ACX1M1T-DHID-C: (1) DVI-D, (1) RJ-45
• ACX2MT-DHH-SM: (2) DVI-D, (2) LC with Dual Head cable kit
• ACX2MT-DLH-C: (1) DVI-D, (1) RJ-45 with Dual Link cable kit
• ACX1MT-HDMI-C: (1) HDMI, (1) RJ-45
• ACX2MR-DPH-2S: (1) DisplayPort, (4) LC

Receiver Module Connections:

• All: (2) USB Type A, (1) Mini USB Type B (Upgrade)

TAA Compliant:

Yes (except ACX2MT-DLHS-2S)
