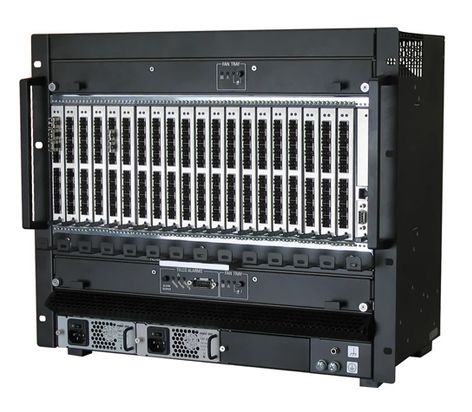

BlackBox ACX080-R2 SERVSWITCH DKM FX 80 W/CTRL CARD+PWR SUPPLY R2

Product Description:

The DKM FX Professional KVM Switching and Extension System provides flexible and instant matrix switching with full HD video in professional KVM environments. This scalable, highly available KVM crossbar system allows each port to be used as either an input or an output. With a backplane offering terabit-level switching speeds and near-zero latency video switching, this system is ideal for large enterprises, control rooms, or video production environments where HD video is critical.

The system supports full HD resolutions up to 4K at 60 fps (DisplayPort), 2560x1600 (DVI), and 1080p (HDMI), all with virtually no latency. It can handle both digital and analog video, USB, audio, and serial signals. The modular design allows for easy moves, adds, and changes, and with DKM extenders, users and servers can be connected over long distances using either CATx or fiber connections.

DKM FX can also be integrated with external controllers for fully automated processes and supports control via KVM, network, or serial console. Advanced features such as macros, favorites, and redundancy ensure reliable and uninterrupted performance.

Technical Data:

• Ports:
- Up to 36 modules, max. 576 I/O ports (scalable to 4,096 ports)
- Supports mixed CATx and fiber connections
- Supports a wide range of interfaces: digital/analog video, USB, audio, serial

• Resolutions:
- DisplayPort: up to 4K @ 60 fps
- DVI: up to 2560x1600 (Dual-Link), 1080p (Single-Link)
- HDMI: up to 1080p

• Signal transmission:
- CATx: up to 140 m
- Single-mode fiber: up to 10 km
- Multi-mode fiber (OM3): up to 1 km

• Redundancy: Multi-level redundancy (dual/triple power supplies on certain models)
• Control:
- Integrated controller card with USB, DVI, and RJ-45 (1000BASE-TX) ports
- Serial control via RS-232
- Supports macros, favorites, and external controllers such as Crestron® or AMX®
- OS independent (Windows, Linux, Mac)

• Power supply:
- ACX048/ACX080: 90-240 VAC, 50-60 Hz, max. 300W
- ACX160/ACX288: 90-240 VAC, 50-60 Hz, max. 300W (triple power supply on ACX288)
- Consumption: 94-202 watts (depending on model)

• Dimensions:
- ACX048: 13.3 H x 48.3 W x 23.1 D cm (4U)
- ACX080: 17.8 H x 48.3 W x 23.1 D cm (4U)
- ACX160: 40 H x 48.3 W x 33 D cm (9U)
- ACX288: 57.8 H x 48.3 W x 33 D cm (13U)

• Weight:
- ACX048: 8.9 kg
- ACX080: 11.1 kg
- ACX160: 26.3 kg
- ACX288: 36.6 kg

• Certifications: CE, FCC (Part 15, Class A), RoHS, TUV, UL
• Warranty: 2 years Double Diamond™

Included Items:

• 1x DKM FX Switch chassis (depending on model)
• 1x Integrated controller card
• 1x Power supply (depending on model)
• User manual
