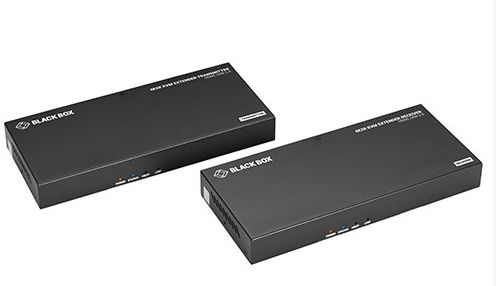

BlackBox ACU1700A KVM EXTENDER, HDMI 1.4, USB 2.0, HDBT 2.0, CATX

KVM Extender – 4K 60Hz, HDMI 1.4, USB 2.0, CAT5e/6/6A

Transmit 4K60 HDMI signals up to 100 meters over CAT5e, CAT6, and CAT6A cable.

Extend uncompressed 4Kx2K at 60Hz and 1080p at 60Hz up to 100 meters over CAT6, CAT6A cables, and up to 90 meters over CAT5 cable.
Transmit video, analog stereo, power, RS-232, and USB 2.0 signals.
With integrated 48V PoC (Power over Cable), only one power supply is needed to power both units.
Locking power supply prevents accidental disconnection.
An analog audio pass-through from Transmitter to Receiver.
HDMI 1.4 compliant.
Four USB Type-A inputs for keyboard, mouse, or additional peripherals.
Warranty: 3 Years Double Diamond™ (Standard)

Use the KVM Extenders to send high-resolution 4K at 60Hz (4:2:0 8-bit) video as well as signals for USB keyboards, mice, and other HID (Human Interface Devices), along with power and control signals. The extender includes a local unit that connects to the CPU and a remote unit that connects to the user’s KVM console. You can also plug in a monitor on the local side, which is ideal for monitoring and administration right at the computer. Only one power supply is required.

Technical Specifications:

Video Impedance: 100 Ohms
Audio/Video Signal:
Transmitter:

• Input: HDMI 1.4, video level: 0.5–1.0 V p-p
• Output: (1) RJ-45, (1) 3.5-mm stereo

Receiver:

• Input: RJ-45, video level: 0.5–1.0 V p-p
• Output: (1) HDMI 1.4, (1) 3.5-mm stereo

Pixel Clock: 297 MHz
Supported Resolutions:

• 4096x2160@24/25/30/50/60 Hz
• 3840x2160@24/25/30/50/60 Hz
• Up to 1080p

Audio Support:

• Transmitter: Input: 3.5-mm stereo pass-through; Output: 3.5-mm stereo pass-through
• Receiver: Input: 3.5-mm stereo pass-through; Output: 3.5-mm stereo pass-through

Connectors:

Transmitter:

• (1) HDMI
• (2) 3.5 mm stereo (in and out)
• (1) USB Type B female input
• (1) RJ-45 (link)
• (1) 3-position Phoenix (power)

Receiver:

• (1) HDMI
• (2) 3.5 mm stereo (in and out)
• (4) USB Type A female
• (1) RJ-45 (link)
• (1) 3-position Phoenix (power)

Distance:

• CAT5e: 3840x2160 @ 90 m; 1080p @ 100 m
• CAT6/CAT6A: 3840x2160 @ 100 m; 1080p @ 100 m

Power: 12 VDC power supply
Operating Humidity: 10–90%, non-condensing
Operating Temperature: 0 to +45 °C
Storage Temperature: -20 to +70 °C

Dimensions:

• Receiver: 2.5 H x 9 W x 20.8 D cm
• Transmitter: 2.5 H x 9 W x 20.8 D cm

Weight:

• Receiver: 0.16 kg
• Transmitter: 0.16 kg

Included Items:

• (1) Transmitter
• (1) Receiver
• (1) 12VDC, 2A Power Supply
• (4) Power Cords (US, UK, EU, AU)
• (2) 3-Pin Phoenix Connectors
• (2) Mounting Brackets + 4 Screws
