BlackBox ACU1500A-R3 DVI-D USB 2.0 CAT5E EXTENDER - 100 METERS

KVM Extender – DVI-D, USB 2.0

Extend Full HD video and USB 2.0 up to 100 meters over a single CATx cable.

Uncompressed digital Full HD extension up to 100 meters.
Transparent USB 2.0 transmission with data rates of 38 Mbit/s.
Ideal for connecting keyboards, mice, touchscreens, storage devices, etc.
Compact form factor for space-saving installation.
Plug-and-play operation for quick installation.
Warranty: 1 Year Double Diamond™ (Standard)

This KVM extender provides a remote user with access to their computer over distances of up to 100 meters using a single, cost-effective CATx cable. The KVM extender supports DVI-D video extension in Full HD and transparent USB, including control of keyboards, mice, USB sticks, and other USB 2.0 and USB 1.1 devices.

Single Link DVI video is transmitted uncompressed at resolutions up to 1920x1200 and 24-bit color depth, with no loss in image quality. The KVM extender reads and clones the EDID information from the connected device, ensuring true plug-and-play installation with a crisp image on your monitor.

The receiver features three USB ports that can connect to various USB 1.1 and USB 2.0 devices at data rates of up to 38 Mbit/s. Black Box recommends connecting keyboards, mice, USB sticks, printers, USB 1.1 webcams, and similar devices with moderate bandwidth requirements.

Use the DVI-D and USB 2.0 extender to enhance IT security by placing computers in secured, centrally maintained rooms. The KVM extender has proven effective in the following applications:

Medical sector
Control rooms and operations centers
Industrial plant operators
DTP and similar graphic work
Other security applications where the computer needs to be remote from the user.

Technical Specifications:

Maximum Distance: 100 m over solid CAT5 cable or higher (solid CAT6 STP cable recommended for best performance)
Maximum Number of Connected USB Devices: 13
USB Device Support:

• High-speed devices (USB 2.0) with reduced bandwidth
• Full-speed USB devices (USB 1.1)
• Low-speed USB devices (USB 1.1)
USB Hub: Chain up to four USB hubs
USB Host Support: EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)

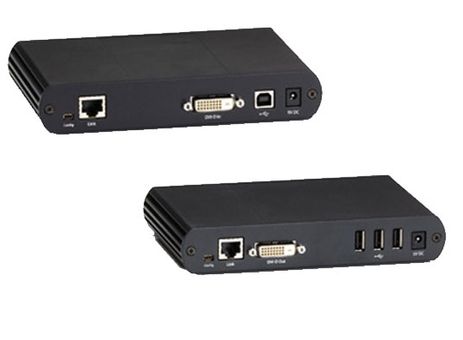

Connectors:

Transmitter:

• Video: (1) 24-pin DVI-D input
• USB: (1) USB Type B
• Link: (1) RJ-45

Receiver:

• Video/Audio: (1) 24-pin DVI-D output
• Link: (1) RJ-45
• USB: (3) USB Type A

Temperature Range:

• Operating: 0° to +40° C
• Storage: -20° to +70° C
Humidity: 20 to 80% RH, non-condensing


Power:

• Input: 100 to 240 V AC power supply, 50 to 60 Hz
• Output: 5 VDC, 3 A (15 W)
USB Power on Receiver: 500 mA per port


Dimensions:

• Each unit: 11.2 H x 17.5 W x 3 D cm

Certifications: FCC Class A, CE, ICES-003, RoHS
HDCP: not supported

Included Items:

• (1) Transmitter
• (1) Receiver
• (2) 5-VDC power supplies
• (1) 1.8 m USB Type A to Type B cable
• (1) 1.5 m DVI cable
• Quick start guide
