BlackBox ACR500DV-T Agility Zero U, IP Based, DVI Transmitter

The Agility ZeroU KVM Transmitters are ultra-compact KVM-over-IP dongles designed to deliver high-performance switching and extension across an existing or dedicated LAN—all while taking up zero rack space. Measuring just 110 mm x 55 mm x 25 mm (10,9 cm ( 4,3 inch ) x 5,5 cm ( 2,2 inch ) x 2,5 cm ( 1 inch )), they’re perfect for retrofitting into crowded or space-constrained server environments.

Pair these transmitters with Agility receivers to build a flexible KVM matrix that enables users at remote workstations to securely access computers housed in a central server room. Power can be supplied via USB from the host device or through an optional external power supply—no rack hardware required.

These transmitters provide pixel-perfect digital video at resolutions up to 1080p @ 60 Hz (for VGA, DVI, HDMI, or DisplayPort models), or up to 2560 x 1600 @ 60 Hz for dual-link HDMI and DisplayPort models. Their no-loss compression minimizes bandwidth usage while preserving flawless visual fidelity.

Enjoy full USB 2.0 support for Full and Low Speed HID devices such as keyboards, mice, tablets, jog shuttles, joysticks, and 3D explorers—at data rates up to 50 Mbps. USBr support ensures that all USB devices appear to the host system as if locally attached.

The dongles support stereo USB audio (bi-directional) and embedded video-based stereo audio (uni-directional). Built for 24/7 mission-critical environments, the transmitters offer power redundancy, receiver-based link redundancy, and hub/spoke architecture support with primary/backup system managers.

General Specifications:

• Video Resolution:
• Up to 1080p @ 60 Hz (VGA, DVI, HDMI, DisplayPort)
• Up to 2560 x 1600 @ 60 Hz (Dual-Link HDMI/DisplayPort only)
• USB Support:
• USB 2.0 Full and Low Speed up to 50 Mbps
• Supports HID devices, tablets, joysticks, 3D explorers
• USBr functionality for complete remote recognition
• Audio:
• USB stereo audio (bi-directional)
• Embedded stereo audio via video (uni-directional)
• Power Options:
• USB-powered or via optional external PSU
• Software Compatibility:
• Compatible with all major OS: Windows, Linux, Unix, BSD, Sun OS, Mac OS, NetWare
• Network:
• Existing or dedicated LAN
• Redundancy:
• Power redundancy
• Link redundancy via receiver
• Hub/spoke topology with primary/backup KVM manager
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Approvals: CE, FCC

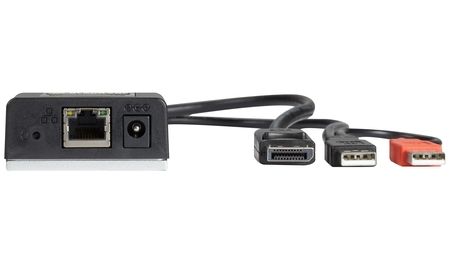

Connectors:

• 1x DisplayPort
• 1x RJ45 (network)
• 1x Optional external power input
• 2x USB

Physical Specifications:

• Dimensions: 4.3 in. (L) x 2.17 in. (W) x 1 in. (H) / 110 x 55 x 25 mm
• Country of Origin: United Kingdom

*Note: Technical specification weight refers to the unit only. For shipping weight, contact Black Box customer service at 1-877-877-2269.
