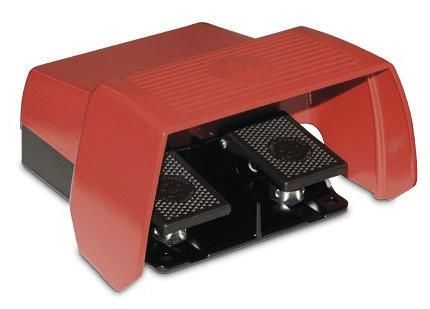

Bernstein 6162000338 footswitch F2 SU1ZUV1D / SU1ZUV1D UN

Suitable for high demands in industrial applications. Existing mounting holes offer the option of screwing the foot switches to the surface. Each foot switch is equipped with four rubber feet to prevent slipping. In the case of multi-pedal foot switches, bars prevent several pedals from being accidentally operated at the same time (versions without bars on request). The foot levers are made of thermoplastic. An accident protection cover made of die-cast aluminum completely shields the pedal from above and from the sides and, with its wide outreach, ensures high stability. Accidental operation by falling objects from above or carelessness from the side is thus prevented. Due to its stability, the cover can withstand a drop weight of 20 kg from a height of 1 m. Foot switch with safety catch and manual release:
Pressing the pedal up to the pressure point:
The working contact is closed, the work process is initiated.
In an emergency situation, pressing
beyond the resistance of the pressure point:
The working contact is interrupted and locked, the work process interrupted. Even if the pedal is not pressed, the lock remains in the OFF position during this phase.
This safely prevents uncontrolled restarting or a new start of moving machine parts.
Unlocking:
Only after the dangerous situation has been eliminated does manual unlocking (push button on the side of the housing) release the contacts again. The work process can be restarted by pressing the pedal up to the pressure point.
Type: 6162000338
