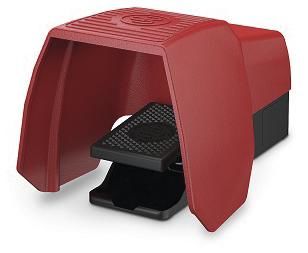

Bernstein F1-AI4-20mA UN foot switch 1-pedal analogue module hood 6161000730

Suitable for high demands in industrial applications. Existing mounting holes offer the option of screwing the foot switches to the surface. Each foot switch is equipped with four rubber feet to prevent slipping. The foot lever is made of thermoplastic. An accident protection cover made of die-cast aluminum completely shields the pedal from above and from the sides and, with its wide extension, ensures high stability. Accidental actuation by falling objects from above or carelessness from the side is thus prevented. Due to its stability, the cover can withstand a drop weight of 20 kg from a height of 1 m. The foot switch with linear voltage or current output enables continuous control tasks via an analog output depending on the pedal position. There is also a programmable signal output (PNP) that switches at a certain, previously set pedal position. The analog output is available in a 0 -5 V, 0 -10 V, 0 -20 mA or 4 -20 mA variant. This foot switch is available in a single-pedal version. Also available in two- and three-pedal versions on request.
Type: F1-AI4-20mA UN
