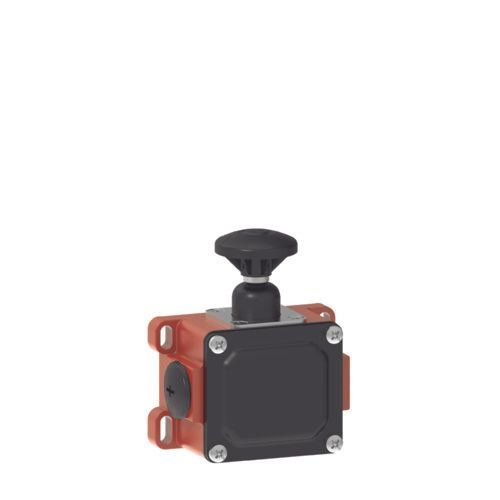

Bernstein 6141114535 D-U1 PA-LINKS two-hand pushbutton metal position switch content_copy

The D-U1 PA-LINKS from Bernstein is a metal-encapsulated limit switch, designed for use in harsh environmental conditions due to its heavy encapsulation and robust construction of the actuator and switching systems. The device serves as a position switch in industrial applications where reliable mechanical switching function is required under high mechanical and environmental stresses. The construction using aluminium die-cast for the housing and aluminium sheet for the cover ensures high mechanical stability and resistance to external influences.

Applications
This switch is designed for use in industrial environments, particularly in systems exposed to high mechanical loads, dust, humidity, or splashing water. The IP 65 protection rating ensures dust-tight and water-tight sealing, making it suitable for outdoor use as long as environmental conditions remain within specified limits. Its robust design makes it an appropriate component in machine building, conveyor technology, or machine tools, where secure and long-lasting switching function is necessary.

Functions and Equipment in Detail
The D-U1 PA-LINKS features two cable entries, enabling through-wiring. This simplifies integration into existing electrical systems, as cables can be routed directly through the housing without requiring additional connection components. The cover screws are designed to be non-removable, simplifying assembly and maintenance while minimizing the risk of losing a screw component. Operation is mechanical via an integrated actuator, designed for precise and repeatable switching function.

Technology Explained Simply
The IP 65 protection rating means the device is fully protected against dust and resistant to water spray from any direction. This makes the switch suitable for environments where moisture or dust are present, such as in production halls or outdoor machinery. The housing made of aluminium die-cast offers high strength and heat dissipation, while the cover made of aluminium sheet is lightweight yet durable. The combination of materials and construction ensures long service life under industrial conditions.

Compatibility and Accessories
The switch is designed as a mechanical end switch and can be integrated into existing electrical circuits requiring mechanical actuation. The cable entries allow for flexible wiring, with exact electrical compatibility depending on the switching function used and the connected system.

Mounting and Installation
Mounting is done via the integrated fastening elements on the housing. The non-removable cover screws simplify mounting and maintenance, as no additional screws or brackets are required. The cable entries enable direct wiring, accelerating installation in existing systems.

Operational Advantages
The switch offers high mechanical robustness and reliability under harsh operating conditions. The IP 65 protection rating safeguards against dust and splashing water, increasing service life and reducing maintenance. The through-wiring capability via cable entries allows flexible and fast integration into existing systems. The non-removable cover screws reduce the risk of assembly errors and simplify maintenance.

General
Degree of protection	IP 65
Housing	AL die-cast
Cover	AL sheet metal
Cable entries	2
Cover screws	non-removable

---
