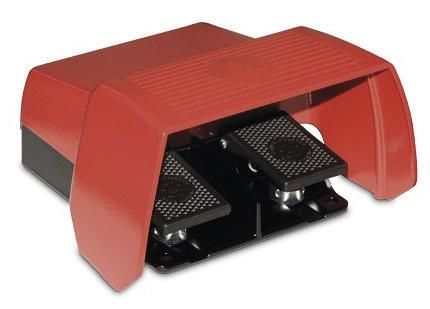

Bernstein 6062720020 footswitch 2ped., Guard pressure point

Suitable for high demands in industrial applications. Existing mounting holes offer the option of screwing the foot switches to the surface. Each foot switch is equipped with four rubber feet to prevent slipping. In the case of multi-pedal foot switches, bars prevent several pedals from being accidentally operated at the same time (versions without bars on request). The foot levers are made of thermoplastic. An accident protection cover made of die-cast aluminum completely shields the pedal from above and from the sides and, with its wide outreach, ensures high stability. Accidental operation by falling objects from above or through carelessness from the side is thus prevented. Due to its stability, the cover can withstand a drop weight of 20 kg from a height of 1 m. The pressure point is a mechanical resistance in the actuation path of the pedal. This gives the user an additional physical message about the actuation position (tactile feedback). The pressure point is used when using two switching systems with differently set pre-travel (2-stage switching)
. Actuation up to the pressure point: switching point for the first switching system
. Actuation beyond the pressure point up to the stop: switching point for the second switching system. The first switching system remains actuated.
Type: 6062720020
