Berker 85745289
KNX radio timer quicklink S.1/B.3/B.7 polar white, glossy content_copy

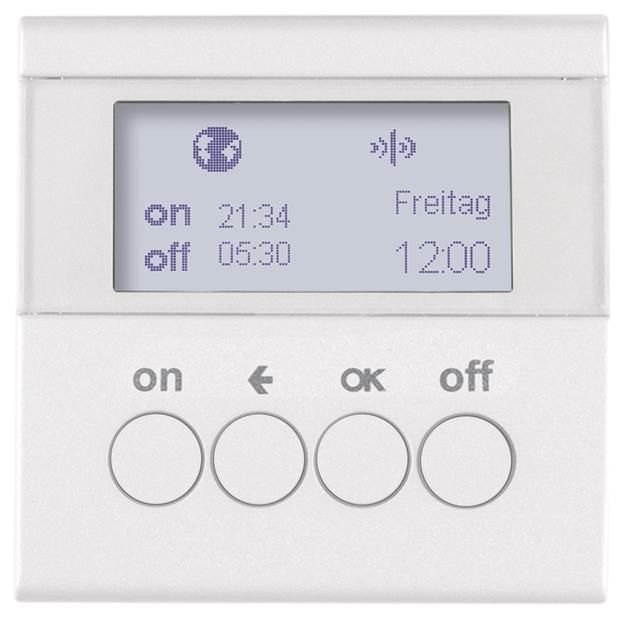

KNX radio timer quicklink S.1/B.3/B.7 polar white, glossy. KNX radio timer quicklink with display for attaching to suitable inserts. Integration via KNX radio media coupler AP into the KNX-TP system. LC display lights up during operation, display of attachment/insert compatibility in the display, LC display contrast adjustable. With automatic summer/winter time changeover (can be switched off), reset function (to factory setting), sending and/or receiving behavior can be configured, party function, no execution of automatic, radio and extension commands (switching protection), with key lock, with switching between manual and automatic operation. Astro program for switching at sunrise/sunset with city/country or coordinate input, individually customizable, standalone program. Radio and extension commands are not executed, holiday program for random variation of the switching times in automatic mode, 2 independent preset program memories individually customizable. Menu navigation can be set in German, English or French. quicklink functions: switching, 2 scenes, timer, button normally open, forced control. easy additional function: +6 scenes, dimming, 1 button control on/off, forced control. ETS additional functions: +6 scenes, operating mode on/off, scene time call, time dimming value, button, status display.

General
Other bus systems	None
Mounting method	Flush mounted (plaster)
Width in number of modular spacings	0
Number of channels	1
Number of outputs	1
Autonomy	0 h
Degree of protection (IP)	IP20
Bus system KNX
Bus system KNX radio
Bus system radio frequent
Bus system LON
Bus system Powernet
Radio frequent bidirectional
Daily program
Weekly program
Annual program
Astro program
External programming
Presence simulation
Summer-/winter switchover
Radio-controlled (DCF77)
GPS (global positioning system)
Bus connection included
Memory card included
Days off programmable
Sub-clocks controllable over bus-system

---
