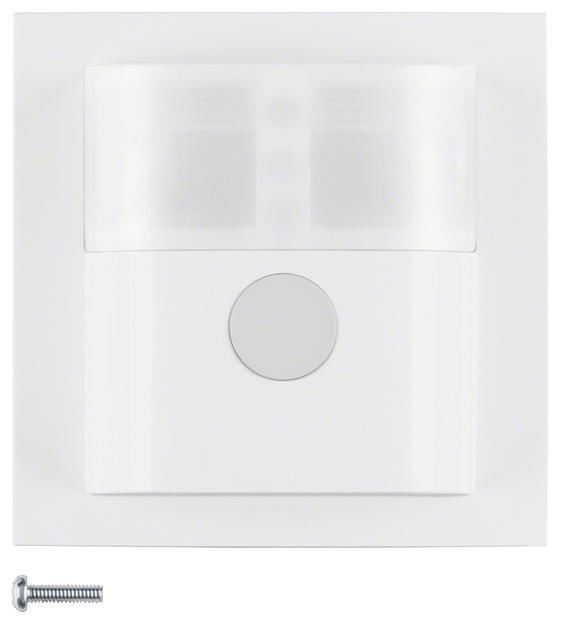

Berker 85346189 KNX radio motion detectors, comfort 2.2m QuickLink S.1 / Bolarweiß, content_copy

KNX wireless motion detector comfort 2.2 m quicklink S.1/B.3/B.7 polar white, glossy. KNX wireless motion detector comfort 2.2 m quicklink for attaching to suitable inserts. For automatic switching of lighting, depending on heat movement and ambient brightness. Integration via KNX wireless media coupler AP into the KNX-TP system. Extension operation optionally via installation button. Functions: Reset function (to factory setting), party function for switching on for 2 hours, with memory function for simulating presence, with key lock, switch-off advance warning on dimmer inserts, teach function for the response brightness via button, configuration and function button, button for on/off/automatic/memory/party function. LED attachment/insert compatibility display, with configuration and function LED, with operation and status LED red/green/orange. Calling up scenes via KNX radio devices, saving scenes can be locked. quicklink functions: switching, dimming, 2 scenes, timer, button normally open, memory, forced control, master-slave, remote control via quicklink transmitter. ETS additional functions: +6 scenes, operating mode on/off, button, status display, dimming value, brightness display, scene call-up when there is movement/no movement. Note: Permanent direct sunlight on the upward-facing detection level can lead to the motion detector failing. Only suitable for indoor use!

General
Mounting method	Flush mounted (plaster)
Material	Plastic
Material quality	Thermoplastic
Surface protection	Untreated
Surface finishing	Glossy
RAL-number (akin)	9010
Max. transmission range sideways	6 m
Max. transmission range frontally	8 m
Detection angle vertical	45
Detection angle horizontal	180
Number of channels	1
Switching power	0
Min. switch-on time	1 s
Max. duty cycle	180 min
Bus system KNX
Bus system KNX radio
Bus system radio frequent
Bus system LON
Bus system Powernet
Radio frequent bidirectional
Transparent
Bus connection included
Substation input
Creep-under protection
Operation mode switch
Animal zone
Staircase monitoring
Response value luminosity adjustable
Teach-function for response value luminosity
Switch-off delay self-learning

---
