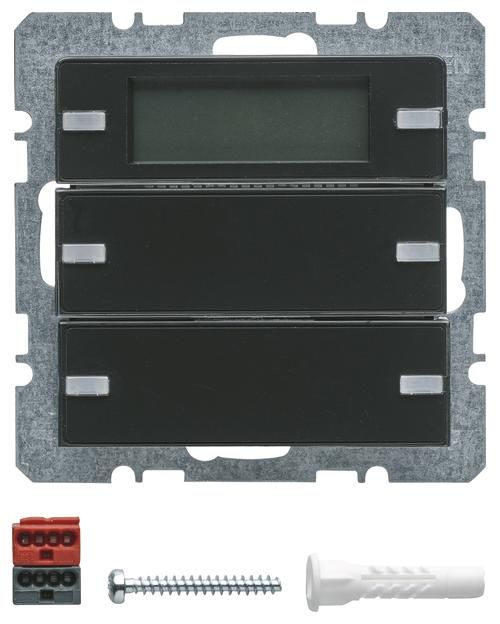

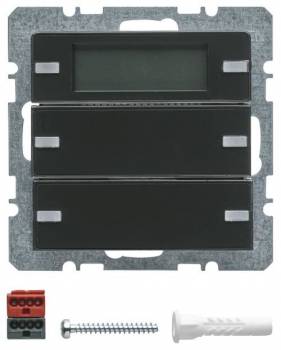

Berker 75662726
touch sensor 2f RTR display Q.1/Q.3 anthracite velvet content_copy

2-way push button sensor with labeling fields, RTR, display Q.1/Q.3 anthracite, velvet. 2-way push button sensor with room temperature controller display with integrated bus coupler, for local operation of switching, touch, dimming, blinds, room temperature controller functions, with dismantling protection, with white operating and four orange status LEDs, LC display with symbol representation, buttons can be labeled over the entire surface, with 2 additional display buttons for programming via display. Application properties: display menu scope for operation can be parameterized, display of operating mode, controller lock, room and outside temperature, time (timer required), operating LED can be switched via object alarm telegram after disconnecting the bus coupler 1 bit or 1 byte. Touch sensor functions: switching, touch, dimming, blind functions programmable, function 2 telegrams programmable, value transmitter for dimming, brightness and temperature values 1 and 2 bytes, calling up, setting and saving of 8 light scenes, cyclical sending also possible via extension, buttons or rockers can be parameterized, single-surface operation for switching, buttons, blinds and dimming, area dimming, blind operating concepts short-long-short and long-short can be parameterized, rockers or touch sensor can be locked via object Room temperature control function: with room temperature timer. For individual single room control, controller operating modes comfort, standby, night and frost/heat protection operation. For heating and/or cooling operation with/without additional stage, control parameters for heating or cooling elements preset. For continuous or switching control of max. 2 control circuits, temperature measurement via internal and/or external sensor with averaging, presence button programmable on touch sensor for comfort extension, touch sensor buttons as controller extension and for operating mode switching, setpoint shift, room temperature timer operation programmable, separate window contact object, reporting objects for heating and cooling, with valve protection function, object for controller status. Flush-mounted installation, surface program. Material: plastic, thermoplastic, shatter-proof, high-gloss surface, halogen-free.

General
Other bus systems	None
Mounting method	Flush mounted (plaster)
Number of actuation points	6
Number of buttons	2
Material	Plastic
Material quality	Thermoplastic
Surface protection	Untreated
Surface finishing	Glossy
Colour	Anthracite
RAL-number (akin)	7021
Degree of protection (IP)	IP20
Min. depth of built-in installation box	25 mm
Power consumption	0.15 W
Bus system KNX
Bus system KNX radio
Bus system radio frequent
Bus system LON
Bus system Powernet
Radio frequent bidirectional
With anti-theft/dismantling protection
Bus connection included
With LED indication
With label area
With display
Transparent
With room temperature controller
With IR sensor

---
