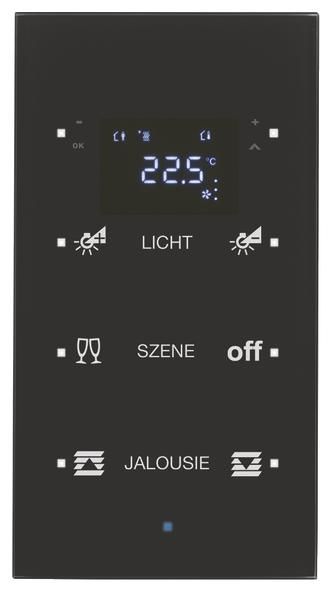

Berker 75643135 glass sensor 3x, m.Raumtemperatur controller TS Sensor Glass content_copy

3-way glass sensor configured with TS sensor temperature controller, black. 3-way glass sensor with labeling, with all-round bevel, creation of individual labeling via Internet configuration software, without visible fastening elements, with six control surfaces, LED display with symbol representation to show operating mode, controller lock, room and outside temperature, time (timer required), with 2 additional display sensor surfaces, with a blue operating LED, with four white status LEDs, flush-mounted installation, special program. Control element for room-specific and cross-room control of functions. For individual single-room temperature control, actuation by touching the glass plate (capacitive detection), flat design and high switching reliability by applying the conductor tracks directly to the glass plate, for installation in a special mounting box for flush-mounting and hollow walls, height and side compensation when installed in a special mounting box, with adapter ring for dismantling protection and shadow gap formation. For vertical installation, with dismantling tool, with integrated bus coupler, bus connection via connection terminal. Display menu scope for operation can be parameterized. For switching, touch, dimming, blinds, room temperature controller functions, value transmitter for dimming, position, brightness and temperature values 1 and 2 bytes, single and double surface operation can be parameterized, sensor surfaces can be locked via object, controller operating modes: comfort, standby, night and frost/heat protection operation. For heating and/or cooling operation with/without additional stage, control parameters for heating or cooling elements preset. For continuous (PI) or switching (2-point) control, temperature measurement via internal and/or external, connectable sensor with averaging, signal objects for heating and cooling, with valve protection function, object for controller status, with key lock function.

General
Other bus systems	None
Mounting method	Flush mounted (plaster)
Number of actuation points	8
Number of buttons	0
Material	Glass
Material quality	Other
Surface protection	Untreated
Surface finishing	Glossy
Colour	Black
RAL-number (akin)	9005
Degree of protection (IP)	IP20
Min. depth of built-in installation box	27 mm
Power consumption	0.6 W
Bus system KNX
Bus system KNX radio
Bus system radio frequent
Bus system LON
Bus system Powernet
Radio frequent bidirectional
With anti-theft/dismantling protection
Bus connection included
With LED indication
With label area
With display
Transparent
With room temperature controller
With IR sensor

---
