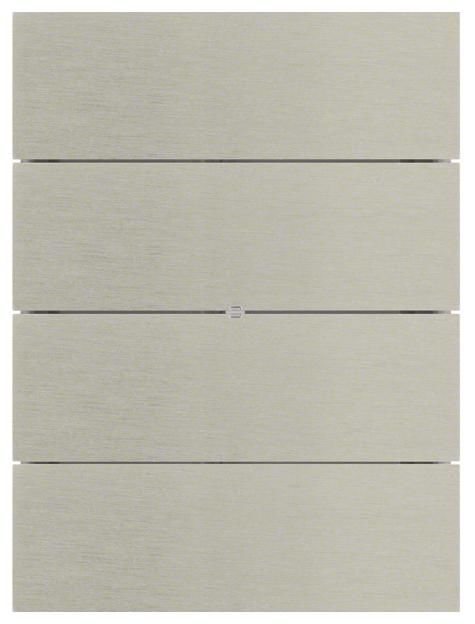

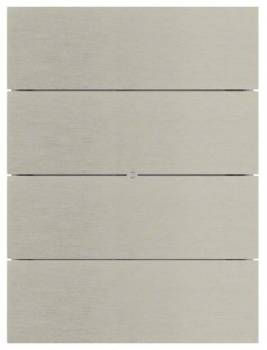

Berker 75168693 Lichtszenentasts.8f. , comfort

Light scene pushbutton sensor 8-way comfort B.IQ made of stainless steel. Light scene pushbutton sensor comfort B.IQ with dismantling protection, with one operating and eight status LEDs. Flush-mounted installation. When a button is pressed, the light scene pushbutton sensor comfort sends telegrams to the instabus EIB, which trigger corresponding functions in actuators. Depending on the loaded application, up to 8 light scenes can be saved and recalled, or 4 telegram sequences with a maximum of 8 outputs can be generated. User module for plugging onto the flush-mounted bus coupling with dismantling protection by screwing with a bus coupling unit. Each actuation button is assigned an LED, the functions of which can be determined via the parameter settings. Each button can be freely configured. Depending on the selected application and parameter settings for controlling switching, dimming or blind actuators, as well as for use as a value transmitter in connection with scenes and telegram sequences. The pushbutton sensor has 2 operating levels that can be set manually. The operating resources can be set on the 2nd operating level. Additional sensors can be omitted. An alarm object enables an alarm command to be sent in the event that the user module is disconnected from the bus coupler. Application properties: Light scene/dimming: locking function via object, cascade operation of several light scene push buttons, actuation display: variable lighting duration of the status LED, second operating level: setting the lights, telegrams can be sent at different times, dimming function adjustable, outputs can be removed separately from light scenes, option to divide the 8 outputs into two independent light scene areas, single-surface actuation, dimming function, extension function. Telegram sequence: alarm function, 4 telegram sequences, random operation, endless operation, 8 outputs, outputs can be locked, single-surface actuation, dimming function, extension function.
