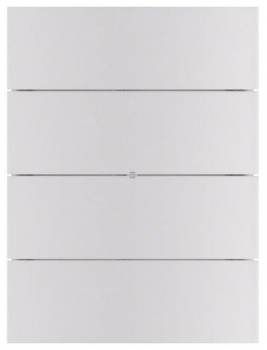

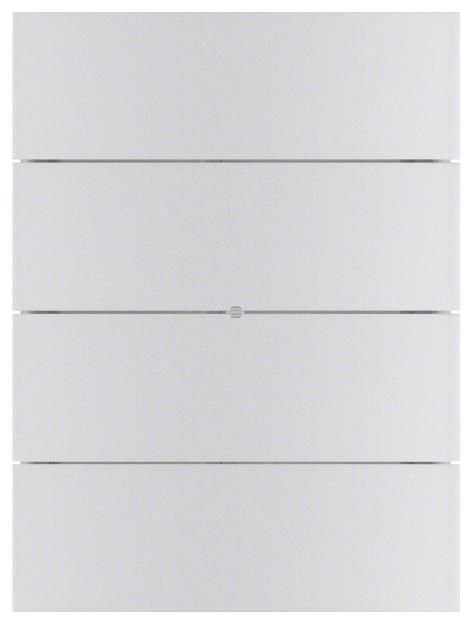

Berker 75164594 Push-button 4-gang comfort, aluminum B.IQ content_copy

4-way push button sensor comfort B.IQ Alu. 4-way push button sensor comfort B.IQ with dismantling protection, with one operating and eight status LEDs. Flush-mounted installation. The 4-way push button sensor comfort is an instabus user module. It is used to plug onto a bus coupler up. Dismantling protection is provided by screwing the push button sensor to the up bus coupler. The data exchange between the push button sensor and the bus coupler takes place via the user interface (AST). Every button press on the 4-way push button sensor comfort causes the bus coupler to generate a telegram and send it to the bus. The telegram format depends on the parameterization of the application. Depending on the parameterization selected, switching, dimming, blind and value transmitter functions can be combined as desired. Application properties: Key functions (keys, switching), switching in toggle mode, dimming with one/two-surface operation, blind control with one/two-surface operation, value transmitter/light scene extension with 1-byte value transmitter function, light scene recall with/without memory function, brightness value transmitter, temperature value transmitter, 2-byte value transmitter, cyclical sending, control function, forced operation. Other functions: Two operating levels, second operating level with selectable reduced functionality, switching of operating levels manually via key code or via object. LED: Status LED for each key, operating LED. Dismantling protection: with mechanical dismantling protection, with software-controlled dismantling protection.
Type: 75164594
