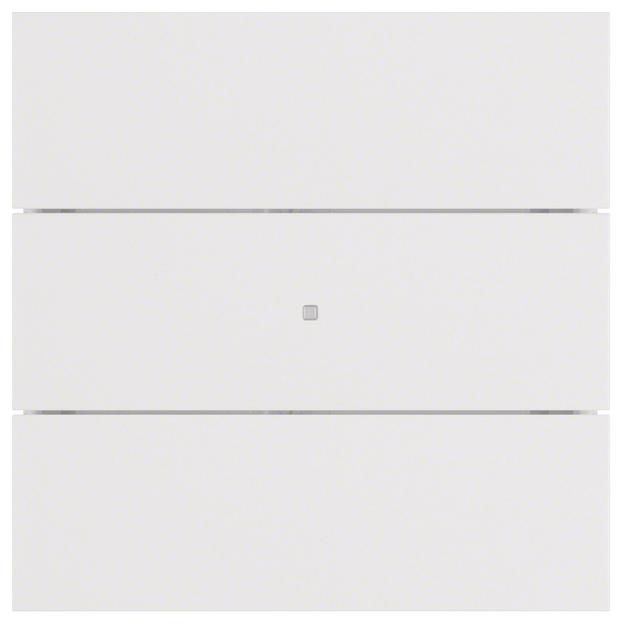

Berker 75163599
touch sensor 3f comfort B.IQ polar white matt

3-way comfort push button sensor B.IQ polar white, matt. 3-way comfort push button sensor B.IQ with dismantling protection, with one operating and six status LEDs. Flush-mounted installation. The 3-way comfort push button sensor is an instabus user module. It is used to plug onto a flush-mounted bus coupler. Dismantling protection is provided by screwing the push button sensor to the flush-mounted bus coupler. Data is exchanged between the push button sensor and the bus coupler via the user interface (AST). Each button press on the 3-way comfort push button sensor causes the bus coupler to generate a telegram and send it to the bus. The telegram format depends on the parameterization of the application. Depending on the parameterization selected, switching, dimming, blind and value transmitter functions can be combined as desired. Application properties: Button functions (buttons, switching), switching in toggle mode, dimming with one/two-surface operation, blind control with one/two-surface operation, value transmitter/light scene extension with 1-byte value transmitter function, light scene recall with/without memory function, brightness value transmitter, temperature value transmitter, 2-byte value transmitter, cyclical sending, control function, forced operation. Other functions: Two operating levels, second operating level with selectable reduced functionality, switching of operating levels via object. LED: Status LED per button, operating LED. Dismantling protection: with mechanical dismantling protection, with software-controlled dismantling protection.
