Berker 3036 toggle switch module insert changeover

Your rating:
Average rating
product review for Berker 3036 toggle switch module insert changeover
( 4.6 / 5 ) 33 ratings

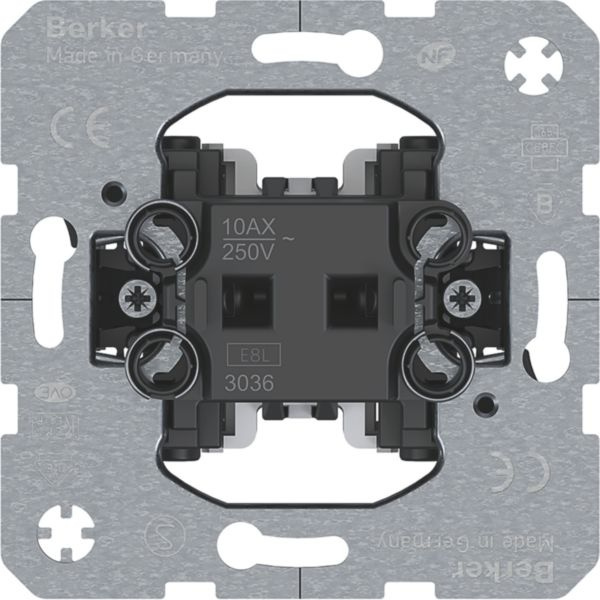

Berker 3036
This image may differ from the desired article.
Berker 3036Berker 3036
9,69 EUR 10,10 EUR
( 11,53 EUR incl. VAT )
≈ £8.07  |  ≈ $10.63
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Berker 3036 toggle switch module insert changeover
Datasheet:file_download Download
Lieske Part No.:997454
Mfg Part No: 3036
UPC/EAN: 4011334023388
Weight:0.0584 kg
Type:3036
Graduated prices net
From piecesPrice per pieces
259,11 EUR
508,53 EUR
1007,95 EUR
2507,36 EUR

Product information for Berker 3036:

The Berker changeover switch type 3036 is an underfloor switch module for use in lighting control systems. Designed as a basic element, it is intended for implementing changeover switching circuits, where multiple switches are involved in a single lighting circuit. Operation is performed via a single toggle, manufactured in a matte-finished plastic design. The device is halogen-free and complies with the requirements of the RoHS directive, ensuring safe and environmentally compatible use in indoor spaces.

Changeover switch for indoor use with a rated voltage of 250 V and a nominal current of 10 A. The switching capacity is 10 AX, sufficient for controlling fluorescent lamps. The switching function is designed for 50- to 60-Hz mains voltage. Installation is carried out using claw fastening in underfloor boxes, requiring a minimum depth of the box of 35 mm. The installation depth of the switch is 31 mm, with overall dimensions of 71 mm width and 71 mm height. The device depth is 41.6 mm.

Applications include residential and commercial rooms where reliable lighting control is required. The switch is designed for indoor use and complies with protection class IP20, protecting against finger contact and solid foreign objects. The impact resistance is IK07, providing a certain level of mechanical durability against light impacts and vibrations. The surface is untreated and matte, enabling unobtrusive integration into standard installations.

Functions and equipment in detail include a push-in terminal connection type, enabling quick and secure connection of wires. The switch is not designed as a push-button switch, but features a toggle. No text field or labelling surface is integrated. Illumination is optional and can be implemented using neon or incandescent units with N-clamp. This illumination serves control and orientation purposes, particularly in accordance with workplace regulations, where visual feedback may be required.

Technology explained simply shows that the switch is designed as a module insert, to be integrated into a suitable underfloor system. The push-in terminals allow for easy and secure connection of electrical wires. The toggle serves as the operating element, enabling switching between two positions, which is typical for changeover switching circuits. The switching function is designed for controlling light sources such as fluorescent lamps, with a switching capacity of 10 AX being sufficient.

Examples include toggles in various colours and finishes such as anthracite velvet, polar white glossy, or stainless steel. Toggles with integrated lenses and labelling fields are also available. For illumination, neon units in various colours (yellow, orange, grey) with N-clamp can be used. These units are designed for mounting into the switch module and enable visual indication of the switching state.

Installation and mounting is carried out in underfloor boxes using claw fastening. The installation depth of 31 mm and the required minimum depth of the box of 35 mm must be taken into account. The mounting is designed for electricians who have the necessary tools and knowledge. The push-in terminals allow for quick and secure wire connection without additional tools.

A benefit in operation is the combinability with various toggles and illumination modules, enabling flexible design of the switch surface. The halogen-free design and RoHS compliance ensure environmentally compatible and safe use. The robust construction with IK07 impact resistance ensures long service life even under normal indoor conditions. The IP20 protection class safeguards against contact and solid foreign objects, which is sufficient for use in residential and commercial rooms.

The switch is not equipped with a mounting plate, but is designed as a basic element for integration into an underfloor system. The push-in terminals are integrated and allow direct connection of wires.

Note: No mounting plate is included in the delivery scope.

General
Wiring systemTwo-way switch
Method of operationRocker/button
Assembly arrangementBasic element
Number of rockers1
Mounting methodFlush mounted (plaster)
Type of fasteningMounting with claw
MaterialPlastic
Material qualityOther
Surface protectionUntreated
Surface finishingMatt
ColourOther
IlluminationOptional
Function lightingControl and orientation
Type of lightingGlow lamp
Suitable for degree of protection (IP)IP20
Nominal voltage250 V
Rated current10 A
Switching current for fluorescent lamps10 AX
Connection typePlug clamp
Width of device71 mm
Height of device71 mm
Depth of device41.6 mm
Built-in depth31 mm
Min. depth of built-in installation box35 mm
Impact strengthIK07
Push button switchno
With mounting plateno
Halogen freeyes
Label space/information surfaceNo
Feedback-signal contactno
Washing machine switchno
Antibacterial treatmentno
IFTTT support availableno


Product data sheet
Datasheet for Berker 3036, EAN: 4011334023388

Questions & answers

What is the delivery time of Berker 3036 toggle switch module insert changeover?

The article Berker 3036 toggle switch module insert changeover is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Berker 3036 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Berker 3036 toggle switch module insert changeover always at the best possible price. We can give you a discount of 2% on Berker 3036 toggle switch module insert changeover if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Berker 3036 toggle switch module insert changeover we can offer you a price of 9,11 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
