Berker 294810 time relay switch insert home electronics

Your rating:
Average rating
product review for Berker 294810 time relay switch insert home electronics
( 4.4 / 5 ) 5 ratings

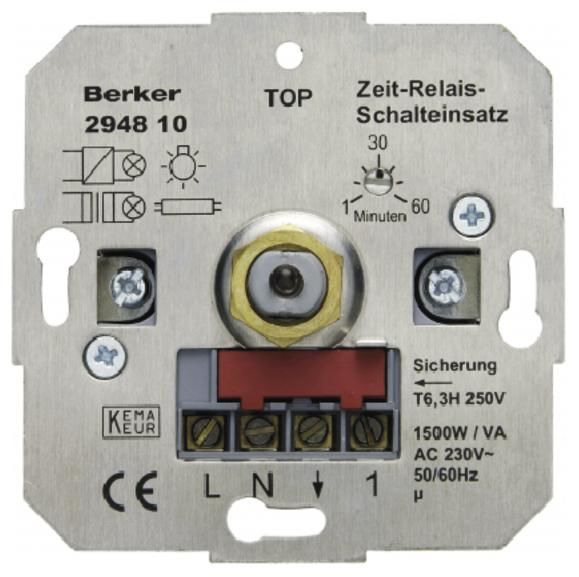

Berker 294810
This image may differ from the desired article.
Berker 294810Berker 294810
89,39 EUR
( 106,37 EUR incl. VAT )
≈ £74.82  |  ≈ $98.24
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Berker 294810 time relay switch insert home electronics
Datasheet:file_download Download
Lieske Part No.:893059
Mfg Part No: 294810
UPC/EAN: 4011334245025
Weight:0.089 kg
Type:294810
Graduated prices net
From piecesPrice per pieces
686,04 EUR
1282,69 EUR
2479,33 EUR
3675,98 EUR

Product information for Berker 294810:

The article 294810 from Berker is a time relay switch module for home electronics, used as a basic element in EIB systems. It is designed for time-controlled switching of electrical loads, such as lighting or heating, within a building automation system. The device is intended for installation in standard installation switch boxes and enables integration into existing EIB infrastructures. The function is based on a relay that closes or opens the circuit after a pre-set time interval, with precise time control managed via the EIB bus line. The device is not equipped with battery backup, so pre-set time functions cannot be maintained during a power failure.

Applications
This time relay switch module is suitable for use in residential and commercial buildings where automated, time-controlled switching is required. Typical applications include automatic switching off of lighting after a set time, control of ventilation systems, or integration into security systems. The device is designed for indoor use and requires a minimum depth of 40 mm for the switch box to ensure secure installation. The device’s installation depth is 32.5 mm, making it compatible with standard switch boxes that provide sufficient space for mounting.

Functions and Features in Detail
The device includes a secondary input, enabling connection to additional control sources, such as a separate switch or another EIB device. It does not feature a light sensor connection, so dusk detection or brightness-dependent control is not possible. The switching function is performed by a relay with a rated current of 6 A, sufficient for controlling lamps, radiators, or small motors. The device dimensions are 70.9 mm in width and height, and 50 mm in depth, making it compatible with standard installation switch boxes.

Technology Explained Simply
The device operates as a basic element within an EIB system, with control managed via the bus line. The time control is set through EIB software or hardware, and the device maintains the specified time duration, switching the circuit accordingly. It does not include a random generator or astro program, so the switching function is based solely on pre-set time intervals. The device construction consists of metal and plastic, with materials being halogen-free and RoHS-compliant, ensuring environmental compatibility and compliance with REACh SVHC regulations.

Compatibility and Accessories
The time relay switch module is designed for use in EIB systems and requires a corresponding bus connection. It is not WiFi-compatible and does not support IFTTT integration, so control is exclusively via the EIB network. Compatibility is limited to EIB-compliant installation systems, with mounting carried out in standard installation switch boxes.

Installation
Mounting is performed in a standard installation switch box with a minimum depth of 40 mm. The device’s installation depth is 32.5 mm, ensuring it fits into the box without requiring additional modifications. The device dimensions of 70.9 mm in width and height allow for compatibility with standard switch boxes. No special tools or additional mounting equipment are required, as the device is installed and secured in the box using standard screws.

Operational Advantages
The use of the time relay switch module enables precise, time-controlled switching of electrical loads within an EIB system. Integration into existing building automation systems is straightforward, as the device functions as a basic element and is controlled via the bus line. The use of halogen-free and RoHS-compliant materials ensures environmentally friendly production and disposal. The switching function with a rated current of 6 A is sufficient for most applications in residential and commercial environments. The device dimensions and installation depth are designed to allow seamless integration into standard installations.

Note: Batteries are not included in the delivery scope.

General
Assembly arrangementBasic element
Twilight value adjustable0
Autonomy0 h
Rated current6 A
Built-in depth32.5 mm
Min. depth of built-in installation box40 mm
Depth of device50 mm
Height of device70.9 mm
Width of device70.9 mm
Transparentno
Random generatorno
Astro programno
Substation inputyes
With brightness sensor connectionno
IFTTT support availableno
WiFi-Compatibleno


Product data sheet
Datasheet for Berker 294810, EAN: 4011334245025

Questions & answers

What is the delivery time of Berker 294810 time relay switch insert home electronics?

The article Berker 294810 time relay switch insert home electronics is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Berker 294810 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Berker 294810 time relay switch insert home electronics always at the best possible price. We can give you a discount of 2% on Berker 294810 time relay switch insert home electronics if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Berker 294810 time relay switch insert home electronics we can offer you a price of 86,04 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
