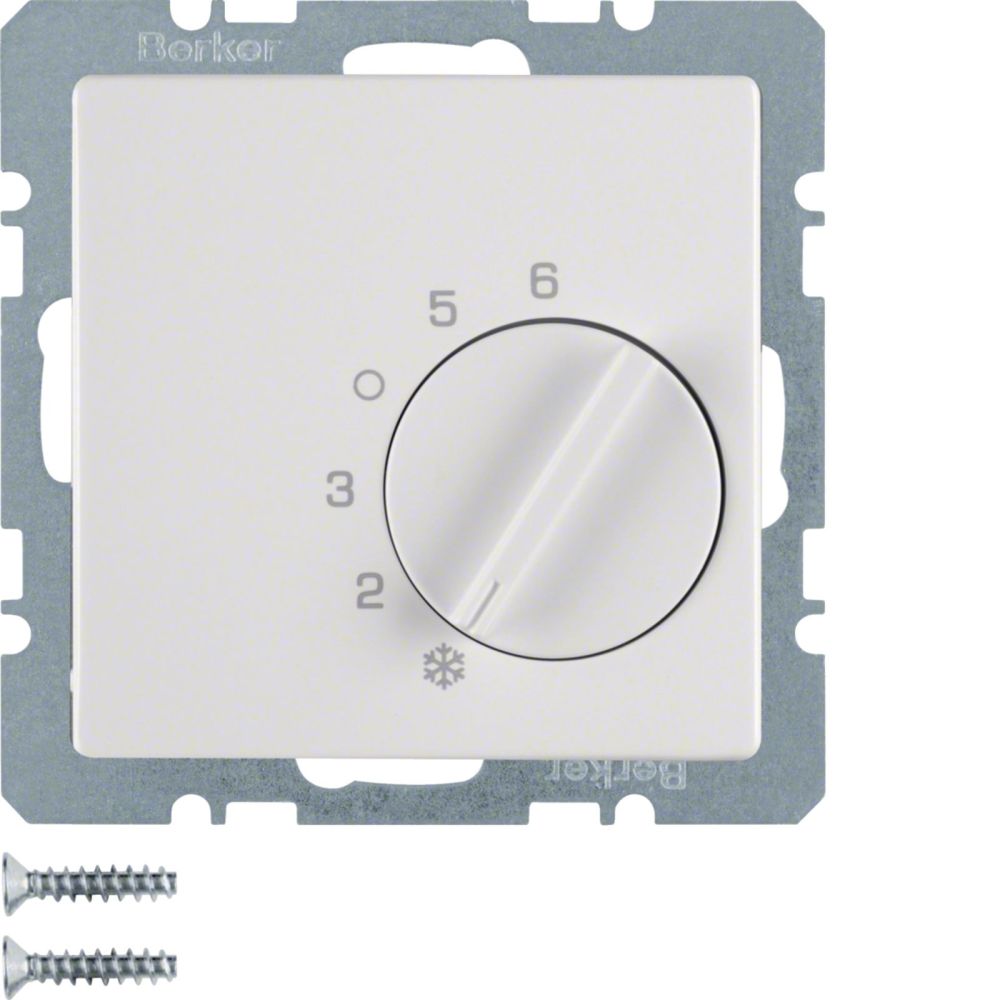

Berker 20266089 room temperature controller with changeover switch and central piece Q.1 polar white

Your rating:
Average rating
product review for Berker 20266089 room temperature controller with changeover switch and central piece Q.1 polar white
( 4.5 / 5 ) 4 ratings
Berker 20266089
This image may differ from the desired article.
108,39 EUR
( 128,98 EUR incl. VAT )
≈ £90.29  |  ≈ $118.90
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >5 pieces
1x Berker 20266089 room temperature controller with changeover switch and central piece Q.1 polar white
Datasheet:file_download Download
Lieske Part No.:105312
Mfg Part No: 20266089
UPC/EAN: 4011334316145
Weight:0.0733 kg
Type:20266089
Graduated prices net
From piecesPrice per pieces
5104,33 EUR
10100,26 EUR
1596,20 EUR
2092,13 EUR

Product information for Berker 20266089:

The Berker room temperature controller type 20266089 is a flush-mounted device for controlling heating systems. It features a changeover contact and is designed for use in heating systems, where the actuator control is closed in the de-energized state. Operation is performed via a rotary knob, allowing the comfort temperature to be set within a range of 5 to 30 °C. The temperature control is based on a bimetallic sensor, which detects the room temperature and automatically switches the contact when the setpoint is reached. The switching temperature differential is 0.5 K and is not adjustable, ensuring stable and precise control.

Applications

The controller is specifically designed for heating systems and can be used in systems with actuators that are closed in the de-energized state. It is not suitable for cooling operation, as confirmed in the technical specifications. The flush-mounted installation allows for clean integration into the wall cladding, with installation carried out without spreader claws. The connection method is via plug-in terminals, requiring a neutral conductor.

Functions and Equipment in Detail

The device features thermal feedback, which supports stable temperature control. The contact configuration is a changeover (NO/NC), enabling both a switching contact for the heating and a feedback contact for control. The maximum contact load is 10 A, with a rated voltage of 230 V AC. Power supply is via the 230 V AC mains, with power consumption in standby mode being 0 W. The device does not include a display, and the temperature is not readable.

Technology Explained Simply

The bimetallic sensor reacts to temperature changes in the room and triggers a contact change when the setpoint temperature is reached. The thermal feedback ensures the control does not react too sensitively, providing stable switching behavior. The plug-in terminals allow for easy and secure connection of the wiring, with the use of a neutral conductor being necessary. The device is designed for an operating voltage of 230 V AC, which is standard in residential and commercial buildings.

Compatibility and Accessories

The controller is designed for heating systems with actuators that are closed in the de-energized state. It is not suitable for cooling operation. Compatibility is limited to heating systems, as confirmed in the technical data.

Mounting and Installation

Mounting is flush, with the device installed without spreader claws. The connection method is via plug-in terminals, requiring a neutral conductor. The surface is untreated and finished in polar white (RAL 9010), enabling visual harmonization with other components.

Advantages in Operation

The controller provides reliable and precise temperature control for heating systems. The thermal feedback ensures uniform switching behavior, avoiding unwanted fluctuations. The use of a changeover contact allows flexible integration into existing control systems. The device is made from impact-resistant, halogen-free thermoplastic, enhancing safety and environmental compatibility. The protection rating IP20 and NEMA 1 is suitable for indoor use, with no special protection requirements such as those needed for outdoor or damp environments. The energy efficiency class I (1%) indicates high efficiency during operation.

General
ModelOn/Off
Type of power supply230 V AC
ConnectionThree-four-wire
Thermal feedbackSeries
Control characteristicOther
Number of heater outputs1
Number of cooler outputs1
Differential value0.5 K
Sensor/feeler typeBimetal
Mounting methodFlush mounted (plaster)
OperationTurn
Max. contact voltage4000 V
Max. contact load10 A
Degree of protection (IP)IP20
Degree of protection (NEMA)1
ColourWhite
RAL-number9010
Height71 mm
Width71 mm
Depth45.6 mm
Class of the temperature controlI
Standby power consumption (solstandby)0 W
Contact typeChange-over contact (NO/NC)
Measuring range35 °C
With receiverno
External sensorno
Adjustable differentialno
Temperature readableno
With sound indicatorno
With displayno
With tap water circuitno
Explosion-proofno
IFTTT support availableno
Suitable for coolingno
Suitable for heatingyes


Product data sheet
Datasheet for Berker 20266089, EAN: 4011334316145

Questions & answers

What is the delivery time of Berker 20266089 room temperature controller with changeover switch and central piece Q.1 polar white?

The article Berker 20266089 room temperature controller with changeover switch and central piece Q.1 polar white is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Berker 20266089 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Berker 20266089 room temperature controller with changeover switch and central piece Q.1 polar white always at the best possible price. We can give you a discount of 2% on Berker 20266089 room temperature controller with changeover switch and central piece Q.1 polar white if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Berker 20266089 room temperature controller with changeover switch and central piece Q.1 polar white we can offer you a price of 104,33 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
