Berker 16208919 toggle switch with printed symbol arrows S.1/B.3/B.7 glass polar white, glossy

Your rating:
Average rating
product review for Berker 16208919 toggle switch with printed symbol arrows S.1/B.3/B.7 glass polar white, glossy
( 4.6 / 5 ) 5 ratings
Berker 16208919

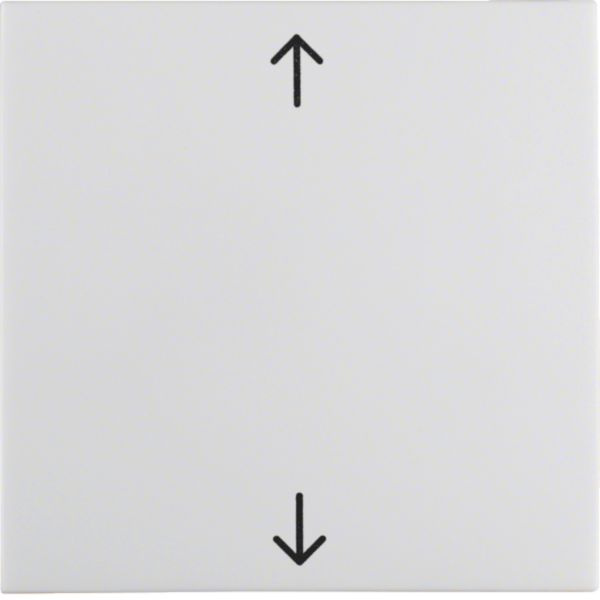

This image may differ from the desired article.
Berker 16208919Berker 16208919Berker 16208919
5,32 EUR
( 6,33 EUR incl. VAT )
≈ £4.45  |  ≈ $5.85
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >10 pieces
1x Berker 16208919 toggle switch with printed symbol arrows S.1/B.3/B.7 glass polar white, glossy
Datasheet:file_download Download
Lieske Part No.:324192
Mfg Part No: 16208919
UPC/EAN: 4011334278238
Weight:0.018 kg
Type:16208919
Graduated prices net
From piecesPrice per pieces
255,04 EUR
504,76 EUR
1004,48 EUR
2504,20 EUR

Product information for Berker 16208919:

The article 16208919 from Berker is a single-piece toggle for flush-mounted installations, used as a switch or push-button component in electrical control and operating systems. The toggle is finished in polar white colour (similar to RAL 9010) and features a glossy surface. It is equipped with a fixed imprint displaying the symbol Arrows, serving as a visual indication for specific functions in control systems. The toggle is designed for mounting in standard flush-mounted socket boxes and is installed using a clamp fastening system. The material consists of duroplast, a robust plastic that is halogen-free and thus complies with the requirements of the RoHS directive. The surface is untreated, enabling processing and installation without additional pre-treatment.

Applications

The toggle is primarily intended for use in electrical installations indoors, particularly in residential and commercial buildings. It is suitable for applications requiring clear visual identification of functions, for example in group push-button systems. The marking with the symbol Arrows is used in standardisation for specific switching functions, particularly in connection with S.1/B.3/B.7, indicating use in systems with defined switching functions. The toggle is not designed for barrier-free operation, as no tactile symbol is present.

Functions and Equipment in Detail

The toggle features a fixed, non-exchangeable imprint in the form of the symbol Arrows, directly integrated into the surface. There is no labelling field, no indicator window, and no exchangeable lens. The function is purely mechanical and serves to operate switches or push-buttons. The toggle is suitable for use in group push-button systems, particularly for 1-way group push-buttons, and can also be used in KNX applications when configured as a group push-button. Installation is carried out via clamp fastening, enabling secure and quick installation in standard flush-mounted socket boxes.

Technology Explained Simply

The toggle is made of duroplast, a thermoplastic material known for its mechanical strength and weather resistance. The glossy surface ensures a clean aesthetic appearance and facilitates cleaning. The polar white colour (similar to RAL 9010) is a standard in electrical installations and fits into most interior designs. The toggle is halogen-free, meaning it does not release toxic halogen compounds in case of fire, thus complying with REACh-SVHC and RoHS directive requirements. The impact resistance rating of IK02 indicates that the toggle is protected against minor mechanical stress, but is not designed for hard or repeated mechanical loading.

Compatibility and Accessories

The toggle is suitable for use in group push-button systems, particularly in combination with 1-way group push-buttons. It is suitable for bus system push-button coupling, meaning it can be integrated into systems with digital control, such as KNX. The toggle is not intended for outdoor use, as it only has protection class IP20, which provides no protection against water or dust. Installation is carried out in standard flush-mounted socket boxes, which must have a depth of at least 22 mm to properly secure the toggle.

Installation and Mounting

The toggle is mounted using a clamp fastening system, where the toggle is inserted into the designated socket box and secured by clamping mechanisms. Dimensions are 54.9 mm in height, 55.7 mm in width, and 22 mm in depth. Installation requires no additional tools or materials, as the toggle is directly inserted into the box. The clamp fastening ensures a secure and stable installation, sufficient for use in residential and commercial buildings.

Operational Advantages

The toggle provides clear visual identification via the symbol Arrows, simplifying operation in complex control systems. The use of duroplast ensures high mechanical stability and durability. The halogen-free design meets current environmental and safety requirements. The glossy surface is easy to clean and gives the toggle a modern appearance. Compatibility with group push-button systems and KNX systems expands its application possibilities in modern building management systems.

General
ModelSingle rocker
Imprint/indicationSymbol "arrows"
UtilizationSwitch/push button
Type of fasteningClamp mounting
MaterialPlastic
Material qualityDuroplast
Surface protectionUntreated
Surface finishingGlossy
ColourWhite
RAL-number (akin)9010
Suitable for degree of protection (IP)IP20
Impact strengthIK02
Depth22 mm
Height54.9 mm
Width55.7 mm
Scannable symbol / barrier freeno
Suitable for touch sensor connector for bus systemyes
Halogen freeyes
With label areano
With exchangeable lens/symbolno
Antibacterial treatmentno


Product data sheet
Datasheet for Berker 16208919, EAN: 4011334278238
