Berker 16206059 toggle switch with imprint symbol doorbell Q.1 polar white velvet

Your rating:
Average rating
product review for Berker 16206059 toggle switch with imprint symbol doorbell Q.1 polar white velvet
( 4.8 / 5 ) 6 ratings
Berker 16206059
This image may differ from the desired article.
Berker 16206059Berker 16206059
5,42 EUR
( 6,45 EUR incl. VAT )
≈ £4.54  |  ≈ $5.96
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Berker 16206059 toggle switch with imprint symbol doorbell Q.1 polar white velvet
Datasheet:file_download Download
Lieske Part No.:176798
Mfg Part No: 16206059
UPC/EAN: 4011334317463
Weight:0.018 kg
Type:16206059
Graduated prices net
From piecesPrice per pieces
255,14 EUR
504,85 EUR
1004,57 EUR
2504,28 EUR

Product information for Berker 16206059:

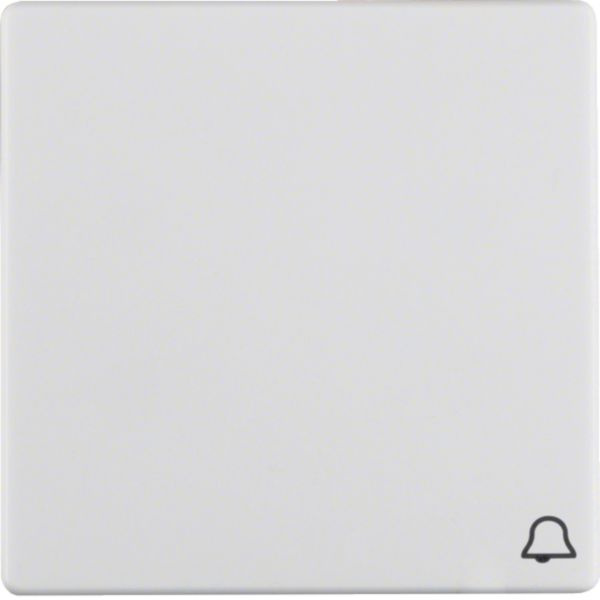

The article 16206059 from Berker is a single-piece toggle for flush installations, specifically designed as a switch or push-button component in the Q.x surface range. The toggle features an embossed symbol print Bell and is finished in polar white (similar to RAL 9010) with a velvet-like surface. It serves as an operating element for electrical installations, particularly in residential and commercial buildings, where clear visual identification of the function is required. The toggle is intended for mounting in standard flush boxes and is installed using a clamp connection.

Applications

The toggle is primarily intended for use in electrical switching systems, particularly in residential buildings, office buildings, or other indoor spaces where clear and permanent identification of the bell function is required. It is suitable for single push-buttons, group push-buttons, as well as toggle push-buttons and changeover/cross switches in the Q.x system. Use is restricted to indoor environments, as the protection rating IP20 does not provide protection against contact with fingers or objects and does not offer weather protection for outdoor use.

Functions and Equipment in Detail

The toggle is equipped with a fixed, non-exchangeable Bell symbol, which is directly embossed into the surface. It is a single-piece construction without a special control window or light outlet. The surface is matte and untreated, providing a uniform, non-reflective appearance. The polar white color (RAL 9010) ensures visual harmony with other components in the Q.x system. The toggle is halogen-free and complies with REACh-SVHC and RoHS directive requirements, ensuring environmental compatibility and safety during use.

Technology Explained Simply

The toggle is made of duroplast, a robust plastic known for its high mechanical strength and heat resistance. The surface is matte and velvet-like, offering a pleasant tactile quality while minimizing light reflection. The depth is 22.5 mm, and both height and width are 58 mm, matching the installation size for standard flush boxes. The impact resistance is IK02, meaning the toggle is protected against minor mechanical stress such as light bumping or pressing, but not against stronger mechanical forces. The protection rating IP20 protects against contact with fingers or objects, but not against dust or moisture — therefore, the toggle is intended exclusively for indoor use.

Compatibility and Accessories

The toggle is specifically developed for Berker's Q.x system and can be combined with various push-button and switch types, including 1-way push-buttons, group push-buttons, toggle push-buttons, and changeover and cross switches. It is also suitable for KNX applications when using appropriate bus system push-button couplings. The toggle does not feature a labeling field or exchangeable lenses, meaning the identification is permanently integrated and cannot be changed after installation.

Installation and Mounting

Installation is done via clamp connection, where the toggle is inserted into a suitable flush box and secured using clamp connections. The installation requires no additional tools or special mounting aids. The toggle is designed for use in standard flush systems and adapts to common installation depths. The clamp connection ensures a secure and stable connection without additional fastening elements.

Operational Advantages

The toggle provides clear, permanent identification of the bell function through the embossed symbol, facilitating operation even under low lighting conditions. The halogen-free and environmentally compatible material selection meets modern sustainability requirements. The robust construction from duroplast and impact resistance IK02 ensure long service life under normal operating conditions. Compatibility with the Q.x system and KNX applications enables flexible integration into existing or new electrical installations.

General
ModelSingle rocker
Imprint/indicationSymbol "bell"
UtilizationSwitch/push button
Type of fasteningClamp mounting
MaterialPlastic
Material qualityDuroplast
Surface protectionUntreated
Surface finishingMatt
ColourWhite
RAL-number (akin)9010
Suitable for degree of protection (IP)IP20
Impact strengthIK02
Depth22.5 mm
Height58 mm
Width58 mm
Scannable symbol / barrier freeno
Suitable for touch sensor connector for bus systemyes
Halogen freeyes
With label areano
With exchangeable lens/symbolno
Antibacterial treatmentno


Product data sheet
Datasheet for Berker 16206059, EAN: 4011334317463

Questions & answers

What is the delivery time of Berker 16206059 toggle switch with imprint symbol doorbell Q.1 polar white velvet?

The article Berker 16206059 toggle switch with imprint symbol doorbell Q.1 polar white velvet is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Berker 16206059 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Berker 16206059 toggle switch with imprint symbol doorbell Q.1 polar white velvet always at the best possible price. We can give you a discount of 2% on Berker 16206059 toggle switch with imprint symbol doorbell Q.1 polar white velvet if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Berker 16206059 toggle switch with imprint symbol doorbell Q.1 polar white velvet we can offer you a price of 5,14 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
