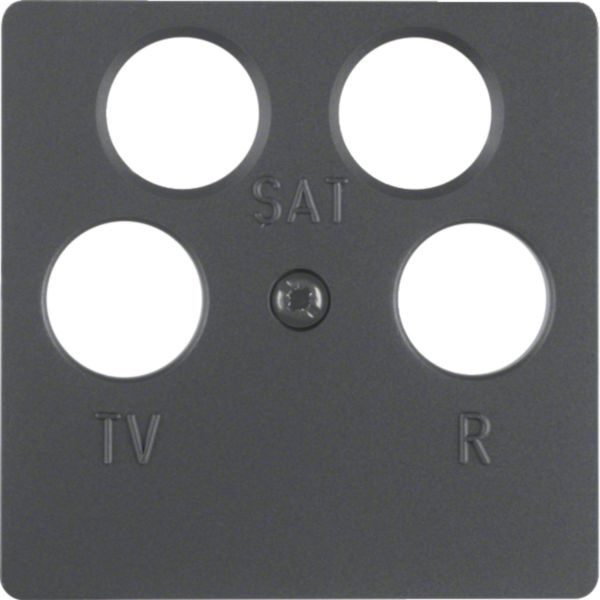

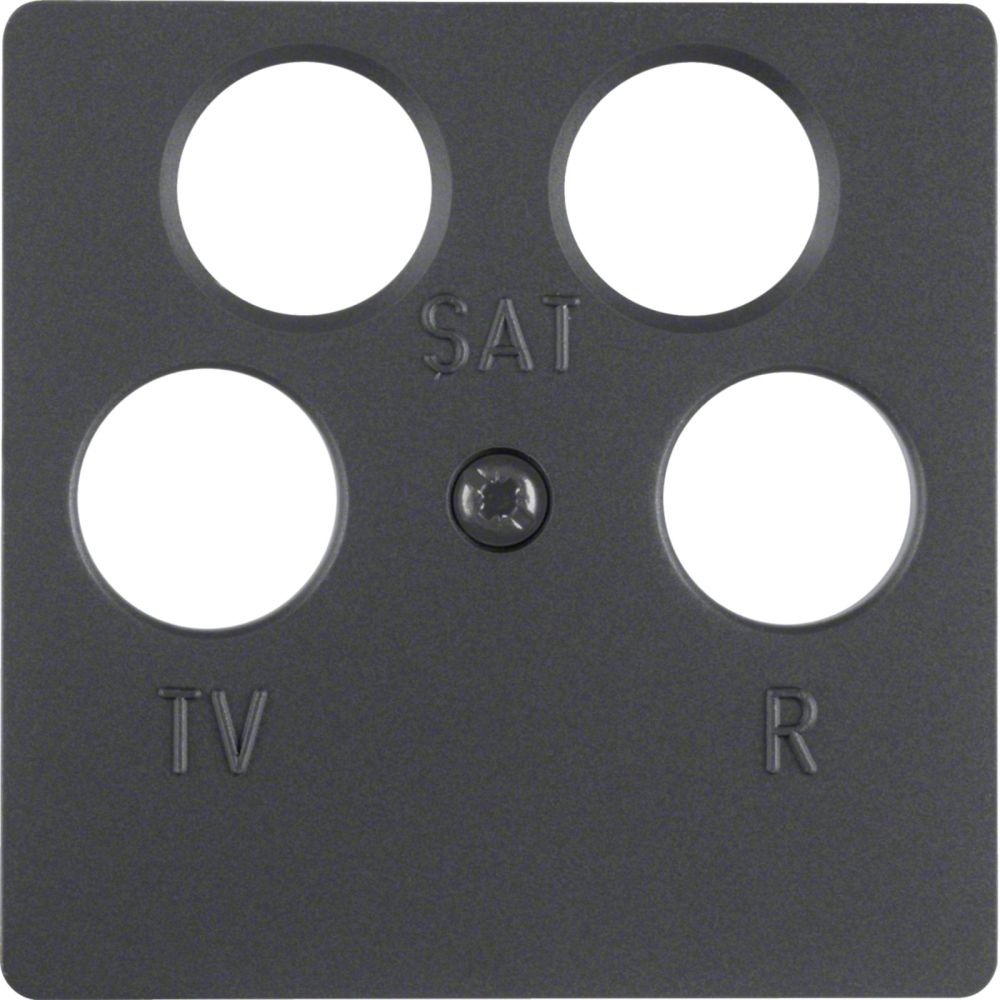

Berker 14841606 central plate for antenna socket 4-hole anthracite

Your rating:
Average rating
product review for Berker 14841606 central plate for antenna socket 4-hole anthracite
( 4.6 / 5 ) 12 ratings
Berker 14841606
This image may differ from the desired article.
7,41 EUR
( 8,82 EUR incl. VAT )
≈ £6.20  |  ≈ $8.14
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >5 pieces
1x Berker 14841606 central plate for antenna socket 4-hole anthracite
Datasheet:file_download Download
Lieske Part No.:535559
Mfg Part No: 14841606
UPC/EAN: 4011334227274
Weight:0.006 kg
Type:14841606
Graduated prices net
From piecesPrice per pieces
257,08 EUR
506,74 EUR
1006,41 EUR
2506,08 EUR

Product information for Berker 14841606:

The central plate for antenna socket 4-hole from Berker is a flush-mounted component for covering antenna connection sockets with four coaxial connections. The product is finished in anthracite matte/satin and serves as a central cover plate for the installation of antenna systems indoors. It is specifically designed for use with intermediate rings from Berker's switch range, while the central plate itself does not include any mounting elements or additional functions such as labeling fields or lamp terminals.

Applications
The central plate is intended for use in residential and commercial buildings where proper and aesthetically pleasing covering of antenna sockets is required. It is suitable for integration into existing electrical installations, particularly in combination with antenna systems featuring multiple coaxial connections, such as when installing SAT or cable TV systems. The cover is typically mounted together with an intermediate ring, which ensures mechanical fixation and electrical connection.

Functions and Equipment in Detail
The central plate features four coaxial connection openings designed for connecting coaxial cables. The surface is made of thermoplastic, halogen-free and untreated, providing high chemical resistance and environmental compatibility. The anthracite color corresponds to RAL number 7021 and is finished in a matte/satin appearance, ensuring a discreet and modern look. The cover is designed without labeling fields, without hinged lids, and without integrated sockets or strain relief.

Technology Explained Simply
The dimensions are 51.5 mm in height and width, and 8 mm in depth, enabling a compact and flat installation. The impact resistance is IK05, indicating low mechanical resistance against shocks and vibrations. The protection class IP20 ensures protection against contact with fingers and against solid foreign objects, but not against water or dust — thus, the central plate is suitable exclusively for indoor use.

Compatibility and Accessories
The central plate is specifically designed for use with intermediate rings from Berker's switch range. It is not intended for direct mounting without an intermediate ring. The central plate is designed for antenna sockets with four coaxial connections, where the connections themselves are not part of the central plate but are integrated into the socket. The central plate does not offer additional functions such as antibacterial treatment or strain relief.

Installation and Mounting
Mounting is done flush with the wall, with the central plate secured to an intermediate ring via screw fastening. The minimum depth of the device socket is 0 mm, meaning no special depth is required. Installation requires the presence of a suitable intermediate ring to ensure mechanical and electrical connection. The central plate is not suitable for outdoor use, as it is neither waterproof nor dustproof.

Operational Advantages
The central plate provides a clean and uniform visual appearance for antenna sockets, especially when used in combination with other Berker products. The halogen-free and RoHS-compliant manufacturing meets current environmental and safety standards. The simple installation and low depth allow for unobtrusive integration into existing installations. The use of thermoplastic ensures high resistance to chemical influences and mechanical stress in indoor environments.

General
Assembly arrangementCentral cover plate for intermediate ring
UtilizationOther
Imprintable labelWithout indication field
Mounting methodFlush mounted (plaster)
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Surface finishingMatt
ColourAnthracite
RAL-number (akin)7021
Type of fasteningMounting with screw
Suitable for degree of protection (IP)IP20
Width of device51.5 mm
Height of device51.5 mm
Depth of device8 mm
Min. depth of built-in installation box0 mm
Impact strengthIK05
Support ringno
With dust coverno
With hinged lidno
Halogen freeyes
Transparentno
With buses/couplingsno
With strain reliefno
Luster terminalno
Antibacterial treatmentno


Product data sheet
Datasheet for Berker 14841606, EAN: 4011334227274
