Berker 146402 BER Arsys central plate for Krone Modular Jacks white glossy

Your rating:
Average rating
product review for Berker 146402 BER Arsys central plate for Krone Modular Jacks white glossy
( 0 / 5 ) 0 ratings

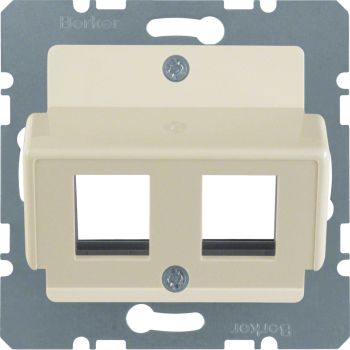

Berker 146402
This image may differ from the desired article.
15,30 EUR
( 18,21 EUR incl. VAT )
≈ £12.81  |  ≈ $16.81
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >5 pieces
1x Berker 146402 BER Arsys central plate for Krone Modular Jacks white glossy
Datasheet:file_download Download
Lieske Part No.:179781
Mfg Part No: 146402
UPC/EAN: 4011334202431
Weight:0.033 kg
Type:146402

Product information for Berker 146402:

The central plate 146402 from Berker is a component for the Krone Modular Jacks central plate system, finished in white glossy. It serves as a base plate for mounting network and communication modules in the field of building automation technology and is used in distribution and enclosure cabinets to structure and make multiple connections accessible. The plate is designed for indoor use and allows integration of two modules, with connections realized via modular jacks.

Applications

The central plate is intended for use in electrical distributions and enclosure cabinets, particularly in buildings with structured cabling systems. It is frequently used in conjunction with Krone modules from the K.x, Q.x, S.x, and B.x series to connect telephone and data lines. The application is in technical rooms such as server rooms, distribution boxes, or building automation, where clear and secure cabling is required.

Functions and Equipment in Detail

The plate features two connections, each realized via a modular jack. These enable the connection of network cables, telephone lines, or other data transmission systems. The labeling fields are snap-in and fit into the corresponding intermediate rings to ensure clear identification of the connections. An integrated 30° angled outlet ensures optimal cable routing and prevents unnecessary strain on the connections. The surface is untreated and made of a plastic-metal composite, providing high mechanical stability.

Technology Explained Simply

The central plate is rated with protection class IP20, meaning it is protected against contact with fingers and against solid foreign objects up to 12.5 mm. It is not suitable for outdoor use or in damp environments. The impact resistance corresponds to IK class IK05, equivalent to a mechanical load of 0.5 Joule. Dimensions are 71 mm height, 71 mm width, and 30 mm depth, enabling compact mounting in standard distribution boxes. The color is white (RAL 1013) with a glossy finish, supporting visual harmonization with other components in the cabinet.

Compatibility and Accessories

The central plate is specifically designed for use with Krone Modular Jacks and is compatible with modules from the K.x, Q.x, S.x, and B.x series. Mounting is done via screw fastening, ensuring secure and durable anchoring in the enclosure cabinet. The plate is halogen-free, REACh-SVHC-free, and RoHS-compliant, ensuring environmental compatibility and compliance with European directives for electrical equipment.

Mounting and Installation

Mounting is done using screws into the designated holes in the central plate. The screw fastening ensures secure anchoring in the enclosure cabinet. The integrated labeling fields can be snapped into the corresponding intermediate rings after mounting to clearly identify the connections. Cable routing is done via the 30° angled outlet, enabling clean and strain-free cable installation.

Advantages in Operation

The central plate provides a structured and clear arrangement of two connections, simplifying maintenance and diagnosis of cabling. The snap-in labeling fields ensure permanent and clear identification. The use of modular jacks ensures a reliable electrical connection. The materials are designed for use in technical rooms and meet necessary safety and environmental standards.

General
Connection/connector typemodular socket
Number of connections2
Number of modules2
ColourWhite
RAL-number1013
Degree of glossglossy
Materialmetal plastic
Surface protectionUncoated
Mounting methodScrew mounting
IP ratingIP20
Shock resistanceIK05
Imprintable labelinterlockable into matching intermediate ring
Outletwith 30° angled outlet
Suitable forK.x / Q.x / S.x/B.x
Halogen freeJa
REACH-SVHC freeJa
RoHS compliantJa


Product data sheet
Datasheet for Berker 146402, EAN: 4011334202431
