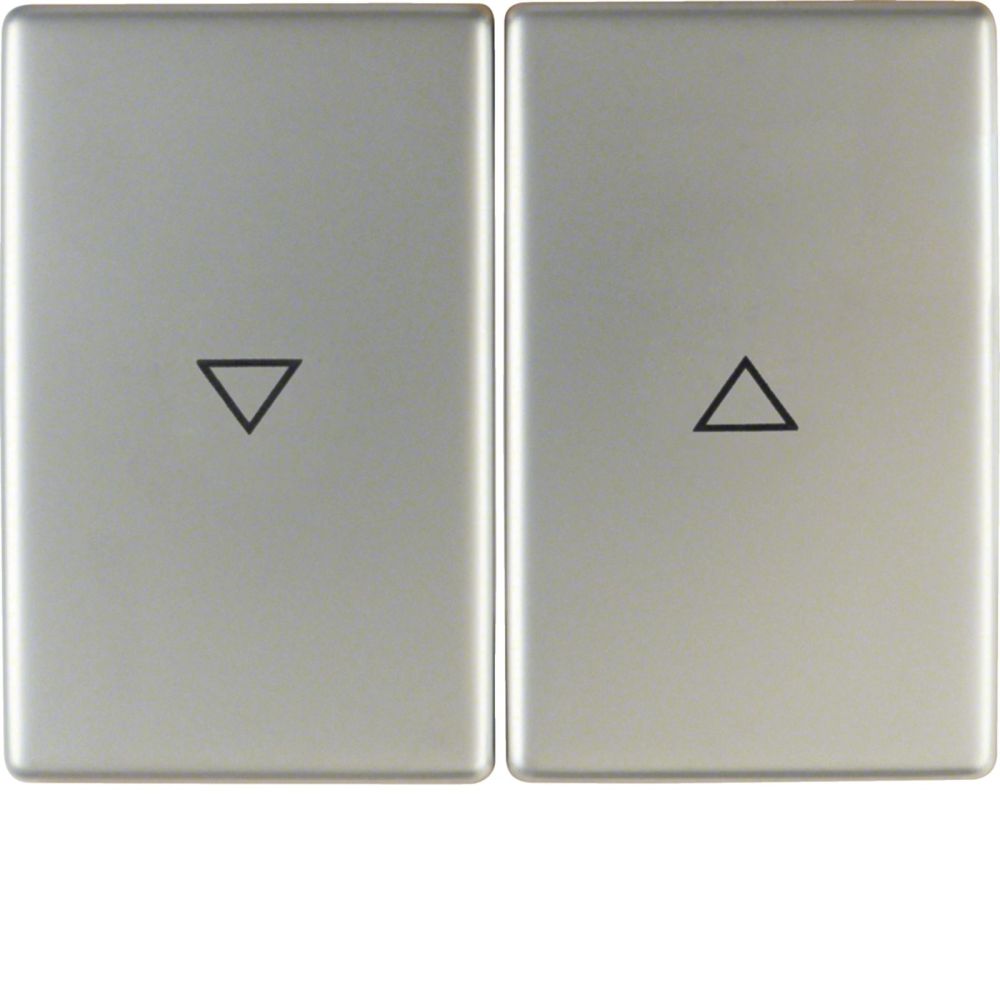

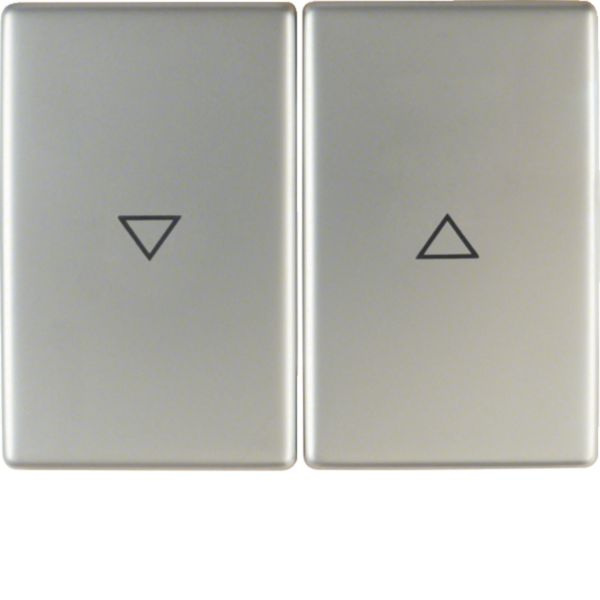

Berker 14357104 toggle switch with imprint symbol arrow K.5 stainless steel corrosion-resistant

Your rating:
Average rating
product review for Berker 14357104 toggle switch with imprint symbol arrow K.5 stainless steel corrosion-resistant
( 4.4 / 5 ) 7 ratings
Berker 14357104
This image may differ from the desired article.
24,22 EUR
( 28,82 EUR incl. VAT )
≈ £20.27  |  ≈ $26.62
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Berker 14357104 toggle switch with imprint symbol arrow K.5 stainless steel corrosion-resistant
Datasheet:file_download Download
Lieske Part No.:123854
Mfg Part No: 14357104
UPC/EAN: 4011334282112
Weight:0.034 kg
Type:14357104
Graduated prices net
From piecesPrice per pieces
1523,13 EUR
3022,04 EUR
7020,95 EUR
10019,86 EUR

Product information for Berker 14357104:

The article 14357104 from Berker is a two-part flush-mounted toggle switch for controlling blinds. The toggle switch is made of stainless steel, features a matte surface, and is finished in stainless steel color, corresponding to RAL number 9022. It is equipped with a printed symbol in the form of arrows, visually indicating its function as a blind switch. The switch is designed as a double toggle, intended for installation in flush-mounted applications, and includes a clamp fastening for secure anchoring in the switch box.

Toggle

The toggle is designed as a two-part unit, meaning two independent switching functions are integrated into a single housing. This allows control of two blinds or two functions of a single blind (e.g., up and down movement) via a single switch. The matte surface ensures a discreet and unobtrusive appearance in the room. The stainless steel color provides a modern, metallic look that can be integrated into various interior designs.

Applications

The toggle is specifically designed for controlling blinds. It is suitable for applications requiring mechanical actuation of blinds via a push-button. It is used in flush-mounted installations, where the toggle is installed into a compatible switch box. The clamp fastening ensures a secure and durable installation in the installation box.

Functions and Equipment in Detail

The toggle features a printed symbol in the form of arrows, visually representing its function as a blind switch. The symbol is not tactile, therefore not designed for barrier-free access. There is no labeling field, and the lens or symbol is not replaceable. The toggle does not include a control window or light outlet. The surface is made of stainless steel, ensuring high corrosion resistance and long service life. The toggle is halogen-free, enhancing environmental compatibility and facilitating disposal according to regulations.

Technology Explained Simply

The toggle is designed for installation in flush-mounted applications and is secured in the switch box using a clamp fastening. Dimensions are 55 mm height, 71 mm width, and 25 mm depth. The impact resistance is IK05, providing a certain level of mechanical protection against shocks and vibrations. The protection class IP20 protects against contact with fingers and solid foreign objects, but is not suitable for outdoor use or in damp rooms. The toggle is suitable for use in bus systems, particularly for KNX applications, where the button connection is made via a corresponding bus system.

Compatibility and Accessories

The toggle is suitable for connection to bus systems, especially KNX systems. It can be used as a 2-way button in KNX applications.

Installation and Mounting

Installation is carried out in flush-mounted installations. The toggle is secured in the switch box using a clamp fastening. Dimensions of 55 mm height, 71 mm width, and 25 mm depth must be considered during installation planning. The toggle is not suitable for outdoor use, as protection class IP20 does not provide water tightness. Installation requires the use of a compatible flush-mounted switch box.

Operational Advantages

The toggle offers a robust and long-lasting solution for controlling blinds. The use of stainless steel ensures high corrosion resistance and an attractive appearance. The clamp fastening guarantees secure mounting. Compatibility with bus systems such as KNX enables integration into intelligent building control systems. The halogen-free design contributes to environmental compatibility.

Protection Class and Safety

The toggle complies with protection class IP20, meaning it is protected against contact with fingers and solid foreign objects. Impact resistance IK05 ensures a certain level of mechanical durability. The toggle is not suitable for outdoor use or in damp rooms, as it does not offer water tightness. Use in dry indoor environments is recommended.

Material and Sustainability

The material is stainless steel, a high-quality metal known for its corrosion resistance and durability. The toggle is halogen-free, REACh-SVHC free, and RoHS-compliant, ensuring environmental compatibility and compliance with European regulations for electrical equipment. The matte surface enables an unobtrusive appearance in the room.

Application in Bus Systems

The toggle is suitable for connection to bus systems, particularly for KNX applications. The button connection is made via a corresponding bus system, allowing integration into intelligent building control systems. Exact configuration and programming are carried out via the respective bus system.

Dimensions and Installation

The toggle has a height of 55 mm, a width of 71 mm, and a depth of 25 mm. Installation is in flush-mounted applications with clamp fastening. Dimensions must be considered during installation planning to ensure correct fit in the switch box.

General
ModelTwo-part rocker
Imprint/indicationSymbol "arrows"
UtilizationVenetian blind
Type of fasteningClamp mounting
MaterialMetal
Material qualityStainless steel
Surface finishingMatt
ColourStainless steel
RAL-number (akin)9022
Suitable for degree of protection (IP)IP20
Impact strengthIK05
Depth25 mm
Height55 mm
Width71 mm
Scannable symbol / barrier freeno
Suitable for touch sensor connector for bus systemyes
Halogen freeyes
With label areano
With exchangeable lens/symbolno
Antibacterial treatmentno


Product data sheet
Datasheet for Berker 14357104, EAN: 4011334282112

Questions & answers

What is the delivery time of Berker 14357104 toggle switch with imprint symbol arrow K.5 stainless steel corrosion-resistant?

The article Berker 14357104 toggle switch with imprint symbol arrow K.5 stainless steel corrosion-resistant is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Berker 14357104 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Berker 14357104 toggle switch with imprint symbol arrow K.5 stainless steel corrosion-resistant always at the best possible price. We can give you a discount of 2% on Berker 14357104 toggle switch with imprint symbol arrow K.5 stainless steel corrosion-resistant if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Berker 14357104 toggle switch with imprint symbol arrow K.5 stainless steel corrosion-resistant we can offer you a price of 23,13 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
