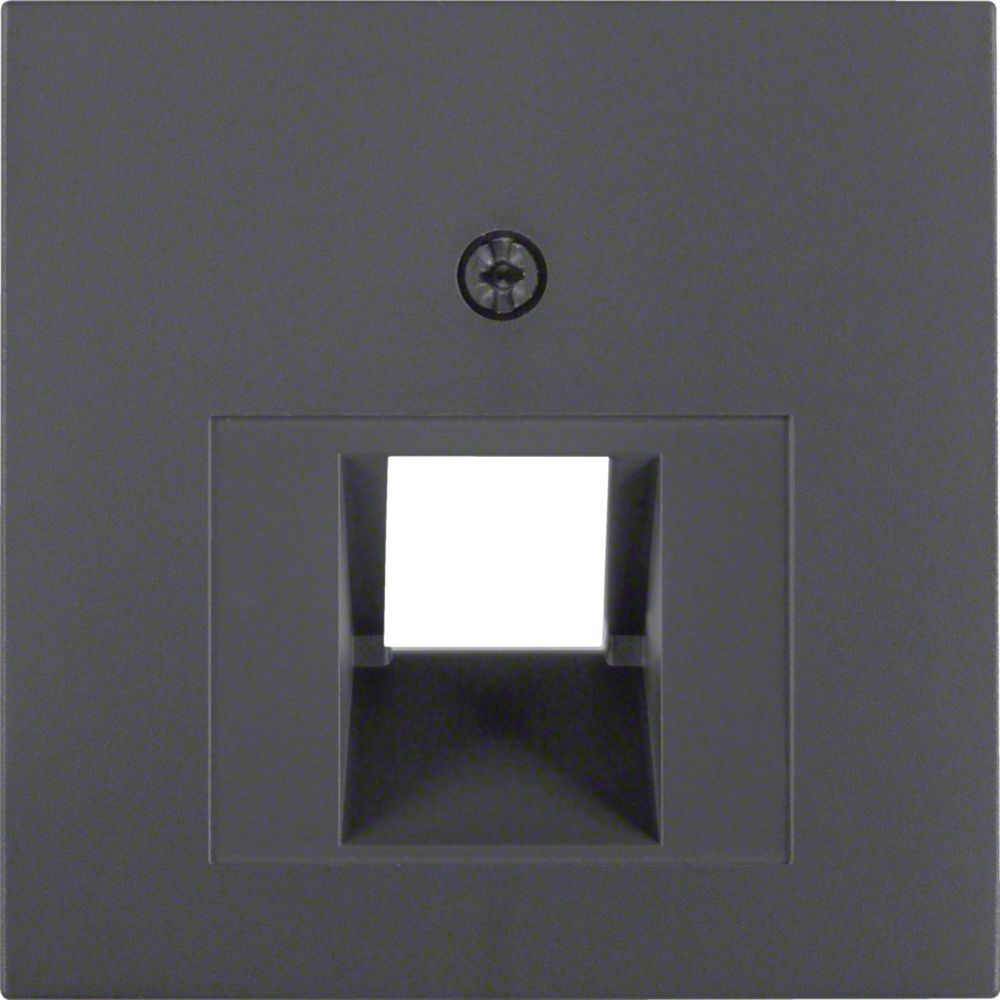

Berker 14071606 central piece for UAE socket B.1/B.3/B.7 glass anthracite

Your rating:
Average rating
product review for Berker 14071606 central piece for UAE socket B.1/B.3/B.7 glass anthracite
( 4.3 / 5 ) 7 ratings
Berker 14071606
This image may differ from the desired article.
Berker 14071606Berker 14071606
9,40 EUR
( 11,19 EUR incl. VAT )
≈ £7.87  |  ≈ $10.33
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >25 pieces
1x Berker 14071606 central piece for UAE socket B.1/B.3/B.7 glass anthracite
Datasheet:file_download Download
Lieske Part No.:259267
Mfg Part No: 14071606
UPC/EAN: 4011334222125
Weight:0.0086 kg
Type:14071606
Graduated prices net
From piecesPrice per pieces
258,98 EUR
508,55 EUR
1008,13 EUR
2507,71 EUR

Product information for Berker 14071606:

This product is a central unit for UAE sockets of the S.1/B.3/B.7 series, manufactured by Berker, type 14071606. It serves as a central mounting component for in-wall installations in the field of data communication and is used in conjunction with UAE sockets (Universal Connection Elements). The central unit is finished in anthracite, matte, corresponding to RAL number 7021. It is made of thermoplastic material, halogen-free, and designed for screw mounting.

Applications
This central unit is specifically intended for installation in UAE sockets, which are typically used in residential and office buildings for connecting data lines such as Cat.3, Cat.5, or Cat.6. It enables the integration of network connections into existing electrical installations and is designed for indoor use. The angled outlet direction (45°) ensures optimal strain relief for cables and facilitates cabling in enclosures or on walls.

Functions and Features in Detail
The central unit features a single connection (1-way) and is designed for mounting in in-wall sockets. It includes no labeling field or print, allowing it to blend visually into existing installations. The surface is untreated and matte, providing a uniform, non-reflective appearance. The design without a hinged cover or dust protection is typical for central units used in combination with a suitable cover or switch.

Technical Explanation
The central unit is made of thermoplastic material suitable for stability and heat resistance in electrical installations. The halogen-free composition reduces the formation of toxic fumes in case of fire. The impact resistance IK05 ensures a certain level of mechanical robustness against minor mechanical stress. The protection class IP20 protects against contact with fingers and larger solid objects, but is not suitable for outdoor use or in damp rooms. Dimensions are 55 mm (height), 55 mm (width), and 16.6 mm (depth), enabling mounting in standard sockets.

Compatibility and Accessories
The central unit is designed for UAE sockets of types S.1, B.3, and B.7. It is compatible with data lines of categories Cat.3, Cat.5, and Cat.6, as specified in the technical description. Use requires a matching cover or switch to be mounted on top of the central unit. It is not connected to sockets or couplings and does not feature integrated strain relief.

Installation and Mounting
Mounting is done via screw fastening into the designated in-wall socket. The angled outlet direction (45°) facilitates cable routing and reduces strain on the lines. The minimum depth of the socket is 0 mm, allowing flexible installation in various socket types. Installation is typically performed by qualified electricians as part of structured cabling.

Operational Advantages
The central unit provides a compact and robust solution for integrating data connections into existing electrical installations. The halogen-free material composition and impact resistance IK05 enhance operational safety. The protection class IP20 ensures sufficient protection against mechanical contact, while the matte surface provides an unobtrusive appearance. Compatibility with various data categories (Cat.3, Cat.5, Cat.6) makes it flexible for use in different network applications.

General
Assembly arrangementCentral cover plate
UtilizationUAE/IAE (ISDN)
Outlet directionInclined
Imprintable labelWithout indication field
Mounting methodFlush mounted (plaster)
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Surface finishingMatt
ColourAnthracite
RAL-number (akin)7021
Type of fasteningMounting with screw
Number of modules (module system)1
Suitable for number of connectors1
Suitable for degree of protection (IP)IP20
Width of device55 mm
Height of device55 mm
Depth of device16.6 mm
Min. depth of built-in installation box0 mm
Impact strengthIK05
Support ringno
With dust coverno
With hinged lidno
With imprintno
Halogen freeyes
Transparentno
With buses/couplingsno
With strain reliefno
Luster terminalno
Antibacterial treatmentno
With lightingno


Product data sheet
Datasheet for Berker 14071606, EAN: 4011334222125

Questions & answers

What is the delivery time of Berker 14071606 central piece for UAE socket B.1/B.3/B.7 glass anthracite?

The article Berker 14071606 central piece for UAE socket B.1/B.3/B.7 glass anthracite is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Berker 14071606 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Berker 14071606 central piece for UAE socket B.1/B.3/B.7 glass anthracite always at the best possible price. We can give you a discount of 2% on Berker 14071606 central piece for UAE socket B.1/B.3/B.7 glass anthracite if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 25 pieces of Berker 14071606 central piece for UAE socket B.1/B.3/B.7 glass anthracite we can offer you a price of 8,98 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
