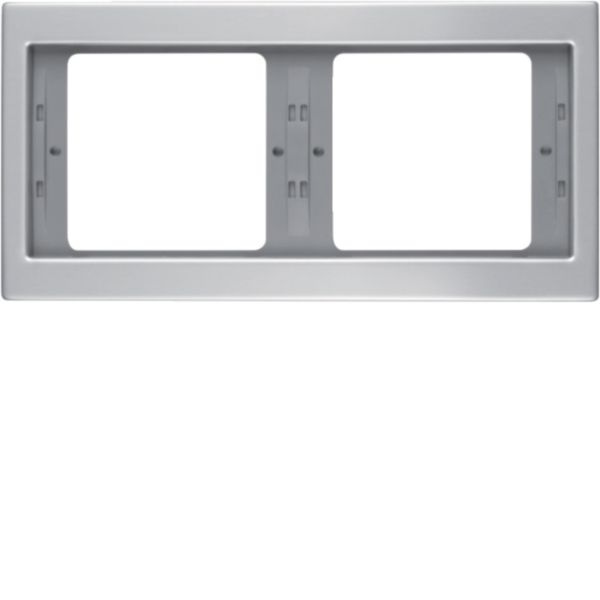

Berker 13637003 frame 2-way K.5 Alu

Your rating:
Average rating
product review for Berker 13637003 frame 2-way K.5 Alu
( 4.4 / 5 ) 7 ratings
Berker 13637003
This image may differ from the desired article.
Berker 13637003Berker 13637003
29,55 EUR
( 35,16 EUR incl. VAT )
≈ £24.73  |  ≈ $32.48
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Berker 13637003 frame 2-way K.5 Alu
Datasheet:file_download Download
Lieske Part No.:422106
Mfg Part No: 13637003
UPC/EAN: 4011334377771
Weight:0.04 kg
Type:13637003
Graduated prices net
From piecesPrice per pieces
1028,22 EUR
2526,89 EUR
5025,56 EUR
7524,23 EUR

Product information for Berker 13637003:

The article 13637003 from Berker is a flush-mounted frame for horizontal installation of two units in K.5 format. It serves as a structural base for installing switches, socket outlets or other electrical components in a wall cladding. The frame is made of aluminium and features an anodized, matte surface in aluminium colour, corresponding to RAL number 9006. The construction is designed for flush installation and allows for clamp mounting, ensuring quick and secure installation.

Applications

The frame is specifically designed for use in flush installations, particularly in conjunction with device installation channels. It is not intended for underfloor channel boxes. The horizontal orientation with two units in a row makes it suitable for applications where multiple switches or socket outlets are to be arranged side by side, for example in residential or office buildings. The installation is carried out under plaster, allowing it to blend visually into the wall.

Functions and Equipment in Detail

The frame provides space for two units arranged horizontally. It is supplied without a mounting frame and without a labelling surface. The surface is anodized, ensuring high corrosion resistance and a uniform, matte appearance. The colour corresponds to the aluminium standard, with RAL number 9006 specified as reference. Dimensions are 158 mm width, 80.5 mm height and 9.9 mm depth, with installation dimensions of 71.5 mm width and 56.5 mm height. There are no drill holes, as this is a frame without integrated mounting holes.

Technology Explained Simply

The protection rating IP20 safeguards against entry of solid foreign objects with a diameter of at least 12.5 mm and protects against contact with fingers. The impact resistance IK05 ensures a certain mechanical stability against light mechanical stress, as commonly encountered indoors. The clamp mounting enables easy and secure installation without additional tools. The aluminium material is lightweight, corrosion-resistant and offers good heat dissipation, which is beneficial for function in electrical installations. The anodized surface increases durability and ease of maintenance.

Compatibility and Accessories

The frame is designed for use with devices in K.5 format. It is suitable for device installation channels, which enable a structured and clean installation. Combination with compatible switches, socket outlets or other components in K.5 format is intended.

Installation and Mounting

Installation is carried out under plaster using clamp mounting. The installation dimensions of 71.5 mm width and 56.5 mm height must be considered in the wall plaster. The frame is designed for horizontal arrangement, with two units placed side by side. Installation requires no additional mounting aids or drill holes in the frame itself, as mounting is achieved via clamp technology.

Advantages in Operation

The frame offers a robust and aesthetically pleasing solution for flush installation. The anodized aluminium surface is easy to maintain and resistant to soiling. The combination of IP20 and IK05 makes it suitable for indoor use, where no special environmental conditions such as moisture or mechanical stress prevail. The horizontal arrangement of two units enables a clear and organized design of the electrical installation.

General
Number of units2
Mounting directionHorizontal
Number of units horizontal2
Number of units vertical1
Number of modules horizontal (module system)0
Number of modules vertical (module system)0
MaterialMetal
Material qualityAluminium
Surface protectionAnodised
Surface finishingMatt
ColourAluminium
RAL-number (akin)9006
Degree of protection (IP)IP20
Impact strengthIK05
Type of fasteningClamp mounting
Width158 mm
Height80.5 mm
Depth9.9 mm
Built-in width71.5 mm
Built-in height56.5 mm
Diameter bore hole (opening)0 mm
With mounting gridno
Suitable for floor boxno
Suitable for wall ductyes
Suitable for built-in installationyes
Label space/information surfaceno
Halogen freeyes
Transparentno
With hinged lidno
Antibacterial treatmentno
Flush-mounted installationyes


Product data sheet
Datasheet for Berker 13637003, EAN: 4011334377771

Questions & answers

What is the delivery time of Berker 13637003 frame 2-way K.5 Alu?

The article Berker 13637003 frame 2-way K.5 Alu is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Berker 13637003 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Berker 13637003 frame 2-way K.5 Alu always at the best possible price. We can give you a discount of 2% on Berker 13637003 frame 2-way K.5 Alu if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Berker 13637003 frame 2-way K.5 Alu we can offer you a price of 28,22 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
