Berker 13237004 frame 2-way K.5 stainless steel rust-free

Your rating:
Average rating
product review for Berker 13237004 frame 2-way K.5 stainless steel rust-free
( 4.9 / 5 ) 9 ratings
Berker 13237004
This image may differ from the desired article.
Berker 13237004Berker 13237004
29,55 EUR
( 35,16 EUR incl. VAT )
≈ £24.73  |  ≈ $32.48
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: >10 pieces
1x Berker 13237004 frame 2-way K.5 stainless steel rust-free
Datasheet:file_download Download
Lieske Part No.:290417
Mfg Part No: 13237004
UPC/EAN: 4011334281948
Weight:0.06 kg
Type:13237004
Graduated prices net
From piecesPrice per pieces
1028,22 EUR
2526,89 EUR
5025,56 EUR
7524,23 EUR

Product information for Berker 13237004:

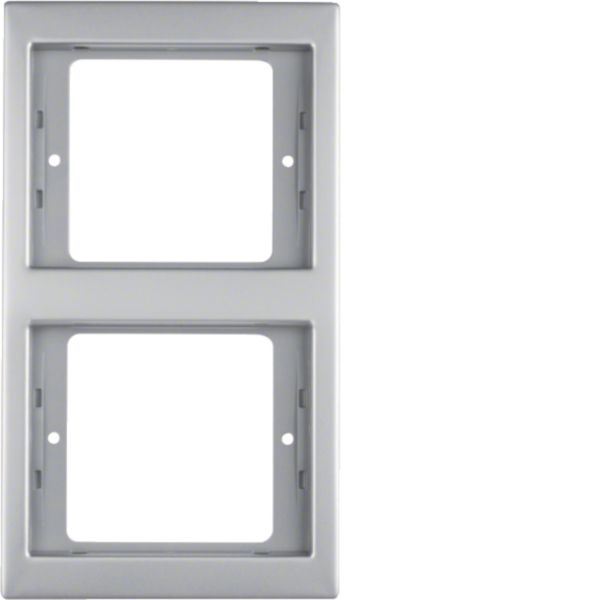

The article 13237004 from Berker is a flush-mounted frame for the installation of switches and socket outlets in category K.5. It is designed as a 2-way vertical frame, with two units arranged vertically one above the other. The frame serves as a mounting element for flush-mounted inserts and enables proper installation in wall linings or recesses. It is specifically designed for use with device installation channels and is suitable for indoor installation applications.

Applications
This frame is intended for use in indoor environments where a robust and aesthetically pleasing installation of switching and socket outlet components is required. It is suitable for residential and commercial buildings as well as technical installations where secure and durable mounting is necessary. Mounting is done vertically, with the units arranged in a vertical configuration. The installation width is 71.5 mm and the installation height is 56.5 mm, enabling a precise fit into standard installation systems.

Functions and Equipment in Detail
The frame is made of stainless steel, a high-quality metal material known for its corrosion resistance and mechanical strength. The surface is matt-finished, providing a discreet yet premium appearance. The colour corresponds to the stainless steel look, similar to RAL number 9022. The design without a labelling surface and without a hinged cover allows for a clear, uncomplicated integration into existing installations. Mounting is done using a clamp fastening system, enabling quick and secure installation without additional tools or drilling.

Technology Explained Simply
The frame is designed for flush mounting, with installation dimensions (71.5 mm width, 56.5 mm height) matched to standard recesses in wall linings. The overall dimensions are 87 mm width, 151.5 mm height, and 9.9 mm depth. The protection rating IP20 protects against contact with fingers and against solid foreign objects, but not against water or dust. The impact resistance IK05 provides a certain level of protection against mechanical stress, such as that encountered during normal indoor use. The material is halogen-free, enhancing environmental compatibility and safety in case of fire.

Compatibility and Accessories
The frame is specifically designed for use with device installation channels and is suitable for mounting flush-mounted inserts. It is not intended for use with underfloor channel boxes. Combination with compatible switches, socket outlets, or other flush-mounted units is possible, with the units mounted in vertical arrangement. Use with covers or other accessories is possible, provided they are designed for category K.5.

Mounting and Installation
Mounting is done vertically, with the clamp fastening system enabling quick and secure installation. No additional drilling or tools are required. The installation dimensions are matched to standard installation systems, ensuring a precise fit into wall recesses. Installation is for indoor use, with protection rating IP20 requiring use in dry rooms.

Advantages in Operation
The use of stainless steel ensures high corrosion resistance and long service life. The matt surface prevents reflections and provides a discreet appearance. The clamp fastening system enables quick, tool-free installation, reducing installation time. The halogen-free design increases safety in case of fire and contributes to environmental compatibility. Protection rating IP20 and impact resistance IK05 ensure safe and reliable operation indoors.

General
Number of units2
Mounting directionVertical
Number of units horizontal1
Number of units vertical2
Number of modules horizontal (module system)0
Number of modules vertical (module system)0
MaterialMetal
Material qualityStainless steel
Surface finishingMatt
ColourStainless steel
RAL-number (akin)9022
Degree of protection (IP)IP20
Impact strengthIK05
Type of fasteningClamp mounting
Width87 mm
Height151.5 mm
Depth9.9 mm
Built-in width71.5 mm
Built-in height56.5 mm
Diameter bore hole (opening)0 mm
With mounting gridno
Suitable for floor boxno
Suitable for wall ductyes
Suitable for built-in installationyes
Label space/information surfaceno
Halogen freeyes
Transparentno
With hinged lidno
Antibacterial treatmentno
Flush-mounted installationyes


Product data sheet
Datasheet for Berker 13237004, EAN: 4011334281948

Questions & answers

What is the delivery time of Berker 13237004 frame 2-way K.5 stainless steel rust-free?

The article Berker 13237004 frame 2-way K.5 stainless steel rust-free is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Berker 13237004 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Berker 13237004 frame 2-way K.5 stainless steel rust-free always at the best possible price. We can give you a discount of 2% on Berker 13237004 frame 2-way K.5 stainless steel rust-free if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Berker 13237004 frame 2-way K.5 stainless steel rust-free we can offer you a price of 28,22 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
