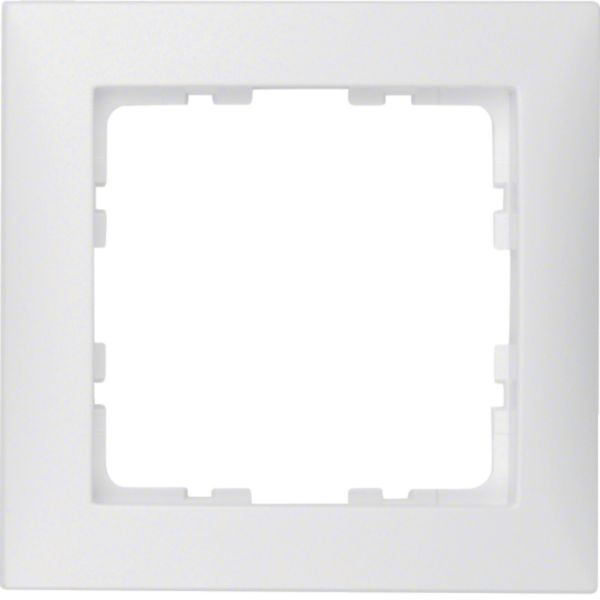

Berker 10119909 frame 1-way S.1 polar white matte
|
3,09 EUR |
|||||||||||
|
( 3,68 EUR incl. VAT ) ≈ £2.57 | ≈ $3.39 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 995175 | ||||||||||
| Mfg Part No: | 10119909 | ||||||||||
| UPC/EAN: | 4011334230564 | ||||||||||
| Weight: | 0.0119 kg | ||||||||||
| Type: | 10119909 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Berker 10119909:
Applications
The frame is designed for in-wall and in-ceiling installation and is suitable for use in residential and commercial areas. It is not intended for underfloor ducts, but is compatible with device installation channels. Installation is carried out using a clamp fixation, ensuring quick and secure anchoring in the flush-mounted channel. The installation width and height are each 56 mm, enabling standardization within the Berker installation system.
Functions and Equipment in Detail
The frame provides space for a single flush-mounted insert and is therefore designed for 1-gang applications. It does not feature an integrated labeling surface, so the surface design is achieved through additional covers or toggles. The frame dimensions are 80.5 mm in width and height, and 9.5 mm in depth. The protection class IP20 protects against entry of solid foreign objects with a diameter of at least 12.5 mm and is therefore suitable for indoor use. The impact resistance IK05 protects the frame against mechanical stress in everyday use, such as light touches or vibrations.
Technology Explained Simply
The frame is made of a thermoplastic material, characterized by high shape stability and resistance to mechanical stress. The halogen-free composition reduces the formation of toxic smoke gases in case of fire. The clamp fixation enables quick and tool-free installation in the flush-mounted channel, with the fixation secured by the clamp mechanism. The IP20 protection class protects against dust and solid foreign objects, but not against water. The IK05 impact resistance protects against minor mechanical impacts, typical in domestic or commercial environments.
Compatibility and Accessories
The frame is compatible with various covers and flush-mounted inserts from the Berker installation system. Suitable accessories include, for example, toggles in various versions (e.g. polar white matte, polar white glossy), center pieces for socket outlets or antenna socket outlets, as well as blanking inserts. Combining with other elements of the S.1 series enables a uniform design of the installation. The use of center pieces and toggles allows individual adaptation to the respective application, whether for light switches, socket outlets or other functions.
Installation and Mounting
Installation is carried out using clamp fixation in the flush-mounted channel. The frame can be installed both horizontally and vertically, allowing flexible arrangement in the wall. The installation dimensions of 56 mm in width and height match the standard dimensions of flush-mounted channels. Installation requires no additional tools, as the clamp locking mechanism enables tool-free fixation. The use of suitable center pieces and covers is carried out after mounting the frame.
Operating Advantages
The frame provides a robust and long-lasting solution for integrating flush-mounted inserts. The halogen-free material composition and RoHS compliance ensure environmentally compatible use. The combinability with various covers and functional elements enables flexible and aesthetically uniform installation. The IP20 protection class and IK05 impact resistance ensure reliable operation in indoor environments under normal loads. The matte polar white surface provides a discreet and modern appearance, suitable for integration into various interior designs.
| General | |
| Number of units | 1 |
| Mounting direction | Horizontal and vertical |
| Number of units horizontal | 1 |
| Number of units vertical | 1 |
| Number of modules horizontal (module system) | 0 |
| Number of modules vertical (module system) | 0 |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | White |
| RAL-number (akin) | 9010 |
| Degree of protection (IP) | IP20 |
| Impact strength | IK05 |
| Type of fastening | Clamp mounting |
| Width | 80.5 mm |
| Height | 80.5 mm |
| Depth | 9.5 mm |
| Built-in width | 56 mm |
| Built-in height | 56 mm |
| Diameter bore hole (opening) | 0 mm |
| With mounting grid | |
| Suitable for floor box | |
| Suitable for wall duct | |
| Suitable for built-in installation | |
| Label space/information surface | |
| Halogen free | |
| Transparent | |
| With hinged lid | |
| Antibacterial treatment | |
| Flush-mounted installation | |
Questions & answers
What is the delivery time of Berker 10119909 frame 1-way S.1 polar white matte?
The article Berker 10119909 frame 1-way S.1 polar white matte is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Berker 10119909 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Berker 10119909 frame 1-way S.1 polar white matte always at the best possible price. We can give you a discount of 2% on Berker 10119909 frame 1-way S.1 polar white matte if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Berker 10119909 frame 1-way S.1 polar white matte we can offer you a price of 2,90 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
