Benning 044028 MM 2 Digital multimeter 750 V AC / 1000 V DC 0.1 µA–20 A 20 MΩ

Your rating:
Average rating
product review for Benning 044028 MM 2 Digital multimeter 750 V AC / 1000 V DC 0.1 µA–20 A 20 MΩ
( 4 / 5 ) 1 ratings

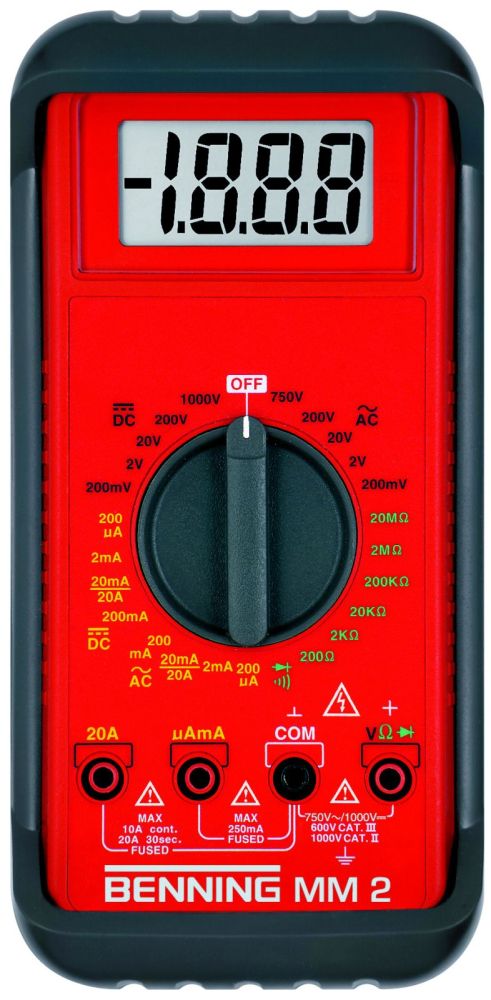

Benning 044028
This image may differ from the desired article.
-20% 135,56 EUR 169,03 EUR
( 161,32 EUR incl. VAT )
≈ £112.92  |  ≈ $148.71
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Benning 044028 MM 2 Digital multimeter 750 V AC / 1000 V DC 0.1 µA–20 A 20 MΩ
Lieske Part No.:298137
Mfg Part No: 044028
UPC/EAN: 4014651000520
Weight:0.78 kg
Type:MM 2

Product information for Benning 044028:

The Benning MM 2 is a digital multimeter for professional use in electrical, heating, and air conditioning technology. It is designed for precise measurement of voltage, current, and resistance, and is specifically intended for applications such as ionization current measurement on gas burners and testing of sacrificial anodes in hot water tanks. The device features manual range switching, automatic power-off, and a low battery voltage indicator to optimize operation and extend battery life. The protection class CAT III 600 V ensures safe use in electrical installations up to this voltage level.

Applications
This multimeter is suitable for professionals in heating and air conditioning technology as well as in electrical trades. Special emphasis is placed on its use for measuring ionization currents on gas burners, which are essential for checking burner functionality in heating systems. Additionally, it enables testing of sacrificial anodes in hot water tanks to verify corrosion protection function. The current measurement ranges are designed to detect very small currents starting from 0.1 µA, which is required for these specific applications.

Functions and Equipment in Detail
The device measures direct and alternating voltage in the range of 100 µV to 600 V. The current measurement range extends from 0.1 µA to 20 A, with precise ranges of 200 µA, 2 mA, 20 mA, and 200 mA specifically intended for the mentioned applications. The resistance measurement range covers 0.1 Ohm to 20 MOhm. An acoustic continuity and diode test function supports quick diagnosis of wiring and semiconductor components. Manual range switching allows targeted selection of the measurement range, while automatic power-off saves energy. A low battery voltage indicator signals when the voltage of the 9-V battery is too low.

Technology Explained Simply
The measurement accuracy of the Benning MM 2 is ensured by fine resolutions within the measurement ranges. The smallest resolution for direct voltage is 0.1 mV, for alternating voltage also 0.1 mV, for direct current 0.1 µA, and for alternating current 0.1 µA. These values enable precise detection of even very small electrical quantities. The protection class CAT III 600 V means the device is designed for use in electrical installations with a maximum voltage of 600 V and meets the required safety standards. Automatic power-off prevents unnecessary energy consumption when the device is not used for an extended period.

Compatibility and Accessories
The multimeter is supplied with a rubber protective frame, a carrying case, a 9-V block battery (type 6LR61), test leads, a 1 A fuse (part number 749669), and a 16 A fuse (part number 749770). These components support safe and practical use of the device. The test leads are intended for connection to measurement points, while the fuses protect the measurement circuit. The carrying case provides protection and transport capability for the device.

Mounting and Installation
The Benning MM 2 is a handheld measuring instrument that requires no mounting or installation. It is operated directly by hand, connecting the test leads to the respective connection points. Operation is performed via the buttons and displays on the device. The fuses are integrated into the device and must be replaced if necessary.

Advantages in Operation
The combination of precise measurement ranges, manual range switching, and automatic power-off offers high flexibility and efficiency in daily use. The acoustic continuity and diode test function simplifies fault diagnosis. The delivery with a rubber protective frame and a carrying case protects the device during transport and storage. The protection class CAT III 600 V ensures safe operation in electrical installations up to this voltage level. The integrated low battery voltage indicator prevents unexpected interruptions in measurements.

General
Voltage measurement range100 µV - 600 V
Current measurement range0,1 µA - 20 A
Resistance measurement range0.1 Ohm - 20 MOhm
Precise current measurement range200 µA, 2 mA, 20 mA, 200 mA
Continuity and diode testingAcoustic
Range switchingManual
Degree of protectionCAT III 600 V
Scope of deliveryRubber protective frame, case, 9 V Block 6LR61 battery, test leads, fuse 1 A (749669), fuse 16 A (749770)
Automatic switch offYes
Battery undervoltage indicatorYes


Questions & answers

What is the delivery time of Benning 044028 MM 2 Digital multimeter 750 V AC / 1000 V DC 0.1 µA–20 A 20 MΩ ?

The article Benning 044028 MM 2 Digital multimeter 750 V AC / 1000 V DC 0.1 µA–20 A 20 MΩ is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Benning 044028 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Benning 044028 MM 2 Digital multimeter 750 V AC / 1000 V DC 0.1 µA–20 A 20 MΩ always at the best possible price. We can give you a discount of 2% on Benning 044028 MM 2 Digital multimeter 750 V AC / 1000 V DC 0.1 µA–20 A 20 MΩ if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
