Beha 5580841 1674FC SCH multifunction installation tester
|
-10% 2.621,97 EUR 2.927,44 EUR |
|
|
( 3.120,14 EUR incl. VAT ) ≈ £2,194.59 | ≈ $2,933.98 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 843691 |
|---|---|
| Mfg Part No: | 5580841 |
| UPC/EAN: | 0195112119440 |
| Weight: | 5.42 kg |
| Type: | FLUKE 1674FC SCH |
Further Other Measuring Devices from BehaFurther products in category Other Measuring Devices
All products of Beha
Product information for Beha 5580841:
The multifunctional installation tester Fluke 1674 FC SCH from Beha is a professional measuring instrument for testing the safety and functionality of electrical installations in residential, commercial, and industrial applications. The device features a comprehensive range of functions that meet the requirements of standards IEC 60364, DIN EN IEC 61557, and DIN VDE 0100-600. It is specifically designed for carrying out installation tests, where the electrical safety and proper functioning of switchgear, wiring, and protective measures are checked. The tester offers an intuitive user interface with a color touchscreen, enabling direct entry of location information and the creation and editing of test routes on the device or on a PC.
Applications
The Fluke 1674 FC SCH is suitable for testing electrical installations in various application areas, including residential buildings, commercial facilities, and industrial plants. It supports the testing of loop impedances and insulation resistances, and offers special functions such as insulation pre-testing, programmable autotests, and testing of surge protection and insulation monitoring devices. These functions enable a comprehensive analysis of installation characteristics and help identify potential faults at an early stage.
Functions and Equipment in Detail
The device features an integrated insulation resistance measurement, which can also be performed with a ramp function. The ramp function allows for a continuous increase in test voltage, enabling observation of the insulation material's response under increasing load. This is particularly useful for diagnosing insulation faults. Additionally, the tester allows for automatic and programmable testing, increasing work efficiency. The integrated data management enables storage and management of test data directly on the device.
Technology Explained Simply
The Fluke 1674 FC SCH operates with a Li-Ion battery with a voltage of 10.8 V and a capacity of 2,500 mAh, ensuring sufficient operating time for on-site use. The protection rating IP40 according to IEC 60529 protects the device against solid foreign objects with a diameter greater than 1 mm and against splashing water from any direction, although it does not protect against immersion or continuous water exposure. The measurement category CAT III 600 V and CAT IV 300 V ensures user safety when measuring electrical installations with corresponding voltage classes. Wireless connectivity via Fluke-Connect enables data transmission and integration into a central data management system, improving documentation and traceability of tests.
Compatibility and Accessories

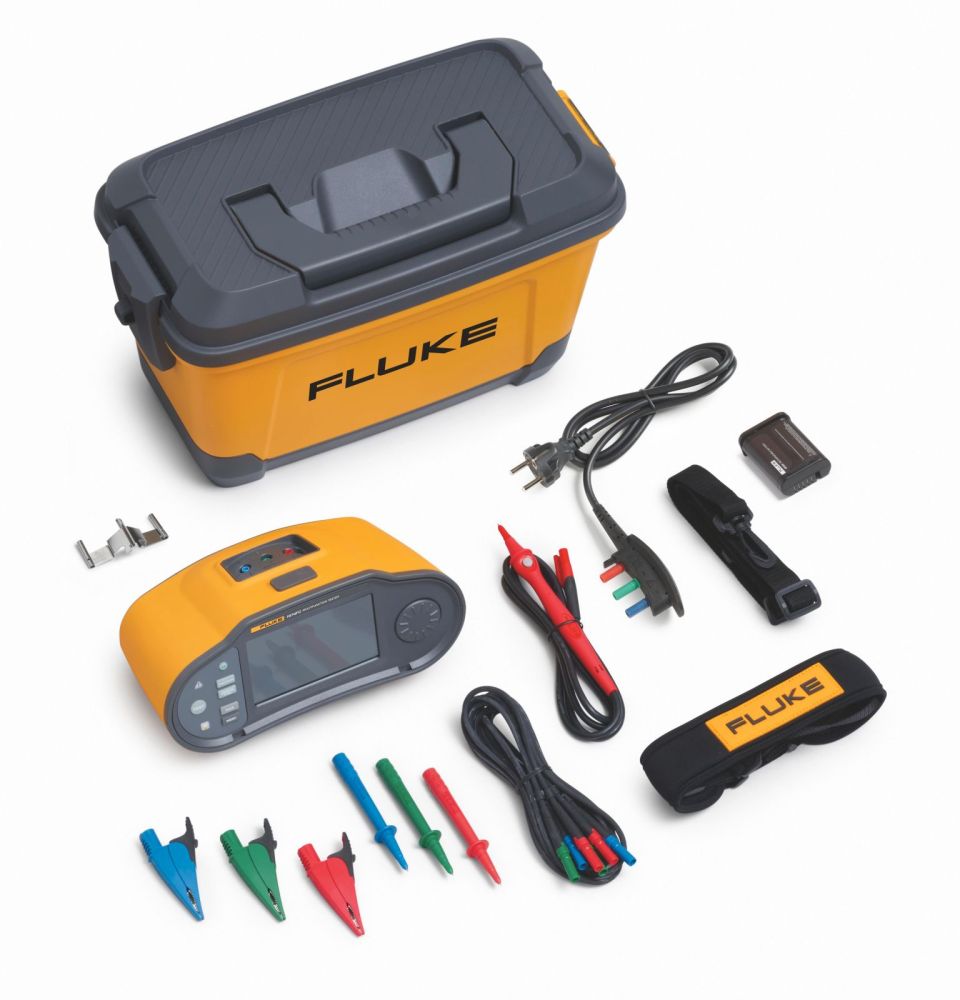

The delivery includes the test lead set TL165x, a test probe with remote control TP165x, a null adapter, a mains test lead, the Li-Ion battery, a power cable, a wall bracket, a carrying strap, a transport case, and the user manual. These components enable flexible and safe handling of the device on-site. The accessories are specifically designed for use with the Fluke 1674 FC SCH and ensure reliable testing under various conditions.
Mounting and Installation
Installation of the device is performed using the included test leads and probes. The wall bracket allows for secure storage and quick access to the device. Operation is via the color touchscreen, with the integrated software supporting entry of test parameters and selection of desired test procedures. The device functions are designed to be used without additional tools or special mounting procedures.
Operational Advantages
Thanks to integrated features such as programmable autotests, wireless data transmission, and comprehensive reporting software, test time can be reduced by up to 30%. Documentation of tests can be completed up to 50% faster, as data is captured and stored directly on the device. The high accuracy of measurement values and the reliability of data management increase confidence in the results. The ergonomic design and intuitive operation facilitate daily use and reduce the likelihood of errors during testing.
Applications
The Fluke 1674 FC SCH is suitable for testing electrical installations in various application areas, including residential buildings, commercial facilities, and industrial plants. It supports the testing of loop impedances and insulation resistances, and offers special functions such as insulation pre-testing, programmable autotests, and testing of surge protection and insulation monitoring devices. These functions enable a comprehensive analysis of installation characteristics and help identify potential faults at an early stage.
Functions and Equipment in Detail
The device features an integrated insulation resistance measurement, which can also be performed with a ramp function. The ramp function allows for a continuous increase in test voltage, enabling observation of the insulation material's response under increasing load. This is particularly useful for diagnosing insulation faults. Additionally, the tester allows for automatic and programmable testing, increasing work efficiency. The integrated data management enables storage and management of test data directly on the device.
Technology Explained Simply
The Fluke 1674 FC SCH operates with a Li-Ion battery with a voltage of 10.8 V and a capacity of 2,500 mAh, ensuring sufficient operating time for on-site use. The protection rating IP40 according to IEC 60529 protects the device against solid foreign objects with a diameter greater than 1 mm and against splashing water from any direction, although it does not protect against immersion or continuous water exposure. The measurement category CAT III 600 V and CAT IV 300 V ensures user safety when measuring electrical installations with corresponding voltage classes. Wireless connectivity via Fluke-Connect enables data transmission and integration into a central data management system, improving documentation and traceability of tests.
Compatibility and Accessories
The delivery includes the test lead set TL165x, a test probe with remote control TP165x, a null adapter, a mains test lead, the Li-Ion battery, a power cable, a wall bracket, a carrying strap, a transport case, and the user manual. These components enable flexible and safe handling of the device on-site. The accessories are specifically designed for use with the Fluke 1674 FC SCH and ensure reliable testing under various conditions.
Mounting and Installation
Installation of the device is performed using the included test leads and probes. The wall bracket allows for secure storage and quick access to the device. Operation is via the color touchscreen, with the integrated software supporting entry of test parameters and selection of desired test procedures. The device functions are designed to be used without additional tools or special mounting procedures.
Operational Advantages
Thanks to integrated features such as programmable autotests, wireless data transmission, and comprehensive reporting software, test time can be reduced by up to 30%. Documentation of tests can be completed up to 50% faster, as data is captured and stored directly on the device. The high accuracy of measurement values and the reliability of data management increase confidence in the results. The ergonomic design and intuitive operation facilitate daily use and reduce the likelihood of errors during testing.
