Beha 5353853 2052 Advanced line detector kit content_copy

The Fluke 2052 Advanced cable detector is a professional test instrument kit for locating and troubleshooting electrical wiring, both live and de-energized, in residential, commercial, and industrial environments. The device is designed for measurements according to safety category CAT IV 600 V, representing the highest protection level for test instruments near power networks. This makes it particularly suitable for use in industrial plants, factories, or hospitals, where equipment shutdowns are not feasible. The kit enables localization of wire breaks, short circuits, and identification of circuit breakers and fuses. The devices are designed to protect against transient overvoltage spikes up to 8,000 V, which can occur in power systems.

Applications
The Fluke 2052 Advanced is used in various fields where precise location of electrical wiring is required. This includes maintenance and repair of electrical installations in residential buildings, office buildings, industrial facilities, and medical institutions. It is especially advantageous for identifying faulty circuits when the exact location of a wire or circuit is unknown. The devices are also suitable for work on high-voltage installations, provided the measurement category CAT IV 600 V is observed.

Functions and Equipment in Detail

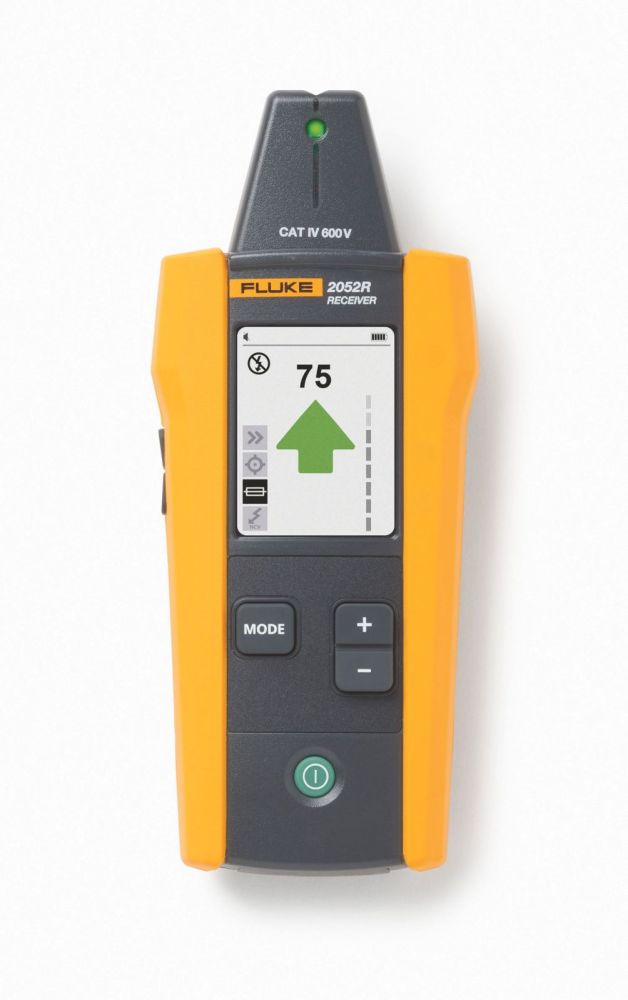

The kit includes a transmitter, a receiver, and an i400 current clamp. The transmitter generates a 6-kHz signal that is transmitted through the wire to make it visible to the receiver. The included alligator clips and test leads allow direct connection to bare conductors, ensuring the most accurate signal transmission. In cases where direct contact is not possible, the i400 current clamp can be used in 'Loop' mode to transmit the signal inductively through the insulation. The kit also includes adapters for round and flat socket contacts to ensure flexible application with different socket types.

Technology Explained Simply
The transmitter operates with a transmission power of 1 W and transmits a 6-kHz signal that is received and localized by the receiver. The frequency is chosen to pass well through electrical installations without significant attenuation. The current clamp induces the signal into the wire without requiring physical contact with the wire, which is especially useful for insulated or inaccessible wires. The CAT IV 600 V measurement category means the device is designed for measurements near power networks and protects against transient overvoltages up to 8,000 V. This is crucial for operator safety in industrial environments.

Compatibility and Accessories
The kit includes all necessary components for wire and circuit tracing: transmitter, receiver, i400 current clamp, test leads, test probes, adapters for round and flat socket contacts, alligator clips, batteries, and a hard-shell carrying case. The combination of these elements enables flexible and safe use in various environments. The socket adapters allow use with different socket types, increasing applicability in various countries and buildings.

Installation and Mounting
Installation involves connecting the transmitter to the wire to be traced. With direct access, the transmitter is connected to a bare conductor using the alligator clips and test leads. If direct contact is not possible, the i400 current clamp is placed around the wire in 'Loop' mode to transmit the signal inductively. The receiver is then moved along the suspected wire path to locate the signal. Operation is performed using the controls on the transmitter and receiver; detailed instructions are included in the package.

Operational Advantages
The Fluke 2052 Advanced offers high safety due to CAT IV 600 V certification and protection against transient overvoltages up to 8,000 V. The variety of connection options (direct contact, inductive transmission) enables flexible use in different situations. The included adapters and clips increase applicability, and the hard-shell case protects the devices during transport and storage. The combination of transmitter, receiver, and current clamp enables efficient and precise troubleshooting in complex electrical systems.
