Beha 4637370 i17XX-flex6000/3pk -17Xx Iflexi 6000A 36 In 3 Pack

Your rating:
Average rating
product review for Beha 4637370 i17XX-flex6000/3pk -17Xx Iflexi 6000A 36 In 3 Pack
( 4.3 / 5 ) 8 ratings
Beha 4637370

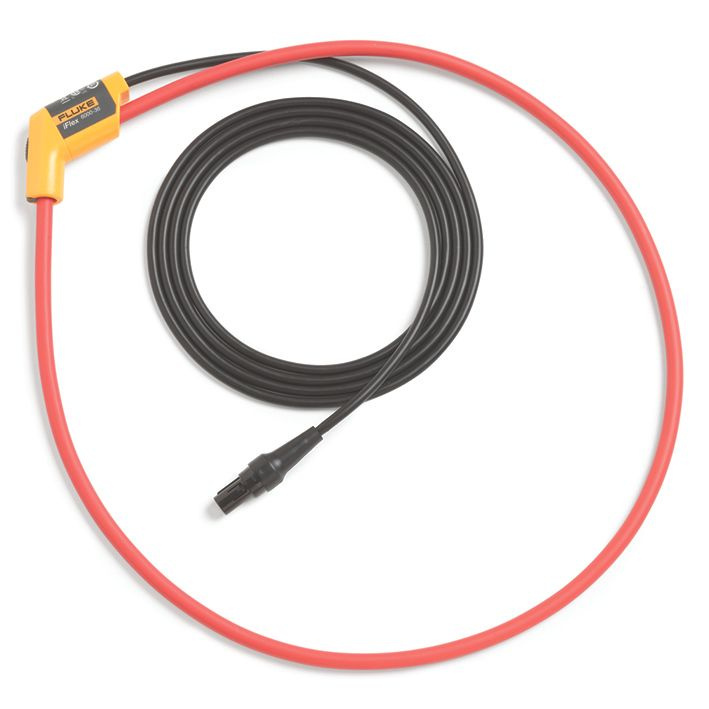

This image may differ from the desired article.
Beha 4637370Beha 4637370
916,73 EUR 957,03 EUR
( 1.090,91 EUR incl. VAT )
≈ £767.30  |  ≈ $1,007.49
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Beha 4637370 i17XX-flex6000/3pk -17Xx Iflexi 6000A 36 In 3 Pack
Lieske Part No.:623370
Mfg Part No: 4637370
UPC/EAN: 0095969786713
Weight:0.79 kg
Type:i17XX-flex6000/3pk

Product information for Beha 4637370:

The AC current clamp Flex from manufacturer Beha, type i17XX-flex6000/3pk, is a measuring instrument for current measurement in electrical installations. It is based on the Rogowski principle, a measuring technology in which the current to be measured is passed through a flexible coil, generating an induced voltage waveform that is proportional to the current waveform. This clamp is used in conjunction with oscilloscopes, recorders, or data loggers to capture transient or time-varying AC currents. The flexible measuring head allows for easy and quick application, even in tight or hard-to-reach locations where conventional current clamps cannot fit. The design is optimized for easy handling, making work in the field or during maintenance tasks more convenient.

Applications

The AC current clamp Flex is intended for measuring AC currents in industrial, electrical, and technical installations. It is particularly suitable for applications requiring non-invasive measurement, such as diagnosing current waveforms in cables, monitoring loads, or analyzing transient current peaks. Its use with oscilloscopes or data loggers enables recording and evaluation of current waveforms over extended periods or under specific operating conditions.

Functions and Equipment in Detail

The device operates according to the Rogowski principle, meaning it does not require a direct electrical connection to the object being measured. Measurement is contactless: the conductor whose current is to be measured is passed through the flexible measuring head. The induced voltage is tapped via an output cable and transmitted to an external measuring device. The flexible design of the measuring head allows adaptation to different conductor diameters and enables measurements in confined spaces, such as in enclosures or complex wiring installations.

Technology Explained Simply

The Rogowski principle is based on electromagnetic induction. When an electric current flows through a coil, a voltage is induced in the coil that is proportional to the rate of change of the current. The AC current clamp Flex uses a flexible coil that is wrapped around the conductor to be measured. The induced voltage is transmitted via a cable to an external measuring device (e.g., oscilloscope), where it is converted into a current waveform. This technology enables precise measurement of AC currents, especially at high frequencies or during transient events.

Compatibility and Accessories

The AC current clamp Flex is designed for use with oscilloscopes, recorders, and data loggers. These devices must have a suitable input for the induced voltage to correctly evaluate the measurement data. Connection is made via the output cable of the clamp.

Mounting and Installation

Mounting is achieved by simply wrapping the flexible measuring head around the conductor to be measured. No additional mounting or fastening is required. The clamp is attached directly to the conductor, ensuring that the contact surface between conductor and coil fully captures the current flow. Connection to the measuring device is made via the supplied cable.

Advantages in Operation

The AC current clamp Flex offers non-invasive measurement, meaning the electrical installation does not need to be interrupted. The flexible design enables measurements in hard-to-reach locations, increasing efficiency during inspections and maintenance work. Use with oscilloscopes or data loggers allows detailed analysis of current waveforms, which is beneficial for troubleshooting or load monitoring. The lightweight construction reduces physical strain on the operator during extended measurement tasks.

General
Measurement principleRogowski principle
Compatibilityoscilloscopes, recorders, data loggers
Sensor headPliable


Questions & answers

What is the delivery time of Beha 4637370 i17XX-flex6000/3pk -17Xx Iflexi 6000A 36 In 3 Pack ?

The article Beha 4637370 i17XX-flex6000/3pk -17Xx Iflexi 6000A 36 In 3 Pack is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Beha 4637370 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Beha 4637370 i17XX-flex6000/3pk -17Xx Iflexi 6000A 36 In 3 Pack always at the best possible price. We can give you a discount of 2% on Beha 4637370 i17XX-flex6000/3pk -17Xx Iflexi 6000A 36 In 3 Pack if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
