Beha 4276955 VPS410-II-V voltage probe set for industrial applications 500 MHz green

Your rating:
Average rating
product review for Beha 4276955 VPS410-II-V voltage probe set for industrial applications 500 MHz green
( 4.8 / 5 ) 4 ratings
Beha 4276955

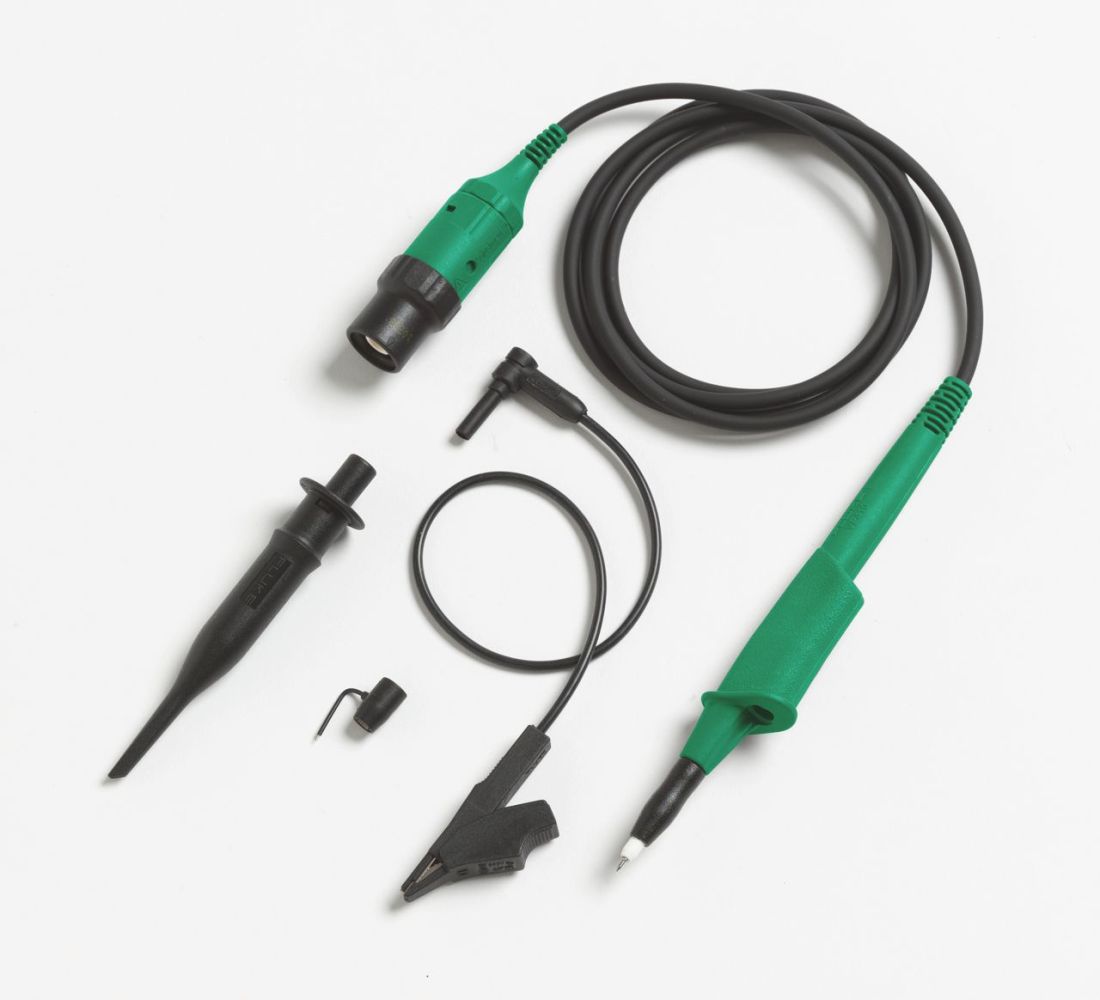

This image may differ from the desired article.
373,64 EUR 381,50 EUR
( 444,63 EUR incl. VAT )
≈ £312.74  |  ≈ $410.63
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Beha 4276955 VPS410-II-V voltage probe set for industrial applications 500 MHz green
Lieske Part No.:516988
Mfg Part No: 4276955
UPC/EAN: 0095969655644
Weight:0.123 kg
Type:VPS410-II-V

Product information for Beha 4276955:

The Beha VPS410-II-V is a voltage probe set specifically developed for industrial applications. It is used for measuring alternating and direct voltages in electrical circuits and is equipped with a probe ratio of 10:1, meaning the voltage applied to the probe is reduced to one-tenth before being transmitted to the measuring device. This enables safe and precise measurement of high voltages, particularly in environments with high electrical loads. The probe is finished in green and features a bandwidth of 500 MHz, making it suitable for measuring high-frequency signals. The total cable length is 1.2 meters, sufficient to reach even difficult-to-access measurement points without compromising the measurement due to short connections.

Applications

The VPS410-II-V is designed for use in industrial environments where high electrical voltages and high frequencies occur. It is particularly suitable for testing and maintenance of electrical installations, machines, and control systems. The high bandwidth of 500 MHz also makes it suitable for analyzing signals in modern electronic systems, for example in automation technology or for diagnosing power electronics. The green color serves as a visual identifier to quickly recognize the probe in a workshop environment.

Functions and Equipment in Detail

The probe set features a probe ratio of 10:1, which reduces the measured voltage by a factor of ten. This reduces the voltage reaching the measuring device to a safe level, minimizing the risk of overvoltage at the measuring device. The bandwidth of 500 MHz allows accurate measurement of signals with high frequencies, which is important for diagnosing faults in electronic circuits. The cable has a length of 1.2 meters, providing sufficient reach for most industrial applications.

Technology Explained Simply

The probe ratio 10:1 means that the voltage applied to the probe is reduced to one-tenth before being transmitted to the measuring device. This protects the measuring device from excessive voltages and enables precise measurement. The bandwidth of 500 MHz describes the frequency range within which the probe still delivers accurate measurement values. A higher value means that even rapidly changing signals, as occur in modern electronic systems, can be correctly captured. The green color is a visual identifier that makes the probe easily recognizable in a workshop environment.

The protection class CATIII 1000 V / CATIV 600 V is a measure of the electrical safety of the probe. CATIII (Category III) refers to measurements on distribution networks and industrial installations, where 1000 V indicates the maximum voltage the probe can safely measure. CATIV (Category IV) refers to measurements at the energy supply level, such as at meter connection boxes, where 600 V is the maximum voltage. These categories guarantee that the probe is suitable for use in electrical installations with high voltages and complies with safety regulations.

Compatibility and Accessories

The VPS410-II-V is designed for use with oscilloscopes and other measuring devices compatible with probes. Exact compatibility depends on the connector types and electrical specifications of the respective measuring device. The green color serves as a visual identifier to quickly recognize the probe in a workshop environment.

Mounting and Installation

The probe set is connected directly to the measuring device, with the cable connection made via a standard connector. Mounting requires no special tools or additional components. Use involves simply connecting the probe to the measurement point and then connecting it to the measuring device. The length of 1.2 meters provides sufficient flexibility to reach even difficult-to-access locations.

Advantages in Operation

The VPS410-II-V offers high measurement accuracy at high voltages and frequencies, making it particularly suitable for industrial applications. The protection categories CATIII 1000 V and CATIV 600 V guarantee safe measurement in electrical installations. The green color facilitates identification in a workshop environment. The length of 1.2 meters enables flexible handling, even with complex installations. The combination of high bandwidth and safe voltage reduction makes the probe a reliable tool for electrical diagnosis and maintenance.

General
Tap ratio10:1
Bandwidth500 MHz
Degree of protectionCATIII 1000 V / CATIV 600 V
ColourGreen
Cable length1,2 m


Questions & answers

What is the delivery time of Beha 4276955 VPS410-II-V voltage probe set for industrial applications 500 MHz green ?

The article Beha 4276955 VPS410-II-V voltage probe set for industrial applications 500 MHz green is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Beha 4276955 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Beha 4276955 VPS410-II-V voltage probe set for industrial applications 500 MHz green always at the best possible price. We can give you a discount of 2% on Beha 4276955 VPS410-II-V voltage probe set for industrial applications 500 MHz green if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
