Beha 3977194 789/E process handheld multimeter

Your rating:
Average rating
product review for Beha 3977194 789/E process handheld multimeter
( 4.8 / 5 ) 8 ratings
Beha 3977194
This image may differ from the desired article.
Beha 3977194Beha 3977194
-6% 2.064,74 EUR 2.200,88 EUR
( 2.457,04 EUR incl. VAT )
≈ £1,728.19  |  ≈ $2,269.15
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Beha 3977194 789/E process handheld multimeter
Lieske Part No.:402312
Mfg Part No: 3977194
UPC/EAN: 0095969590396
Weight:0.96 kg
Type:789/E

Product information for Beha 3977194:

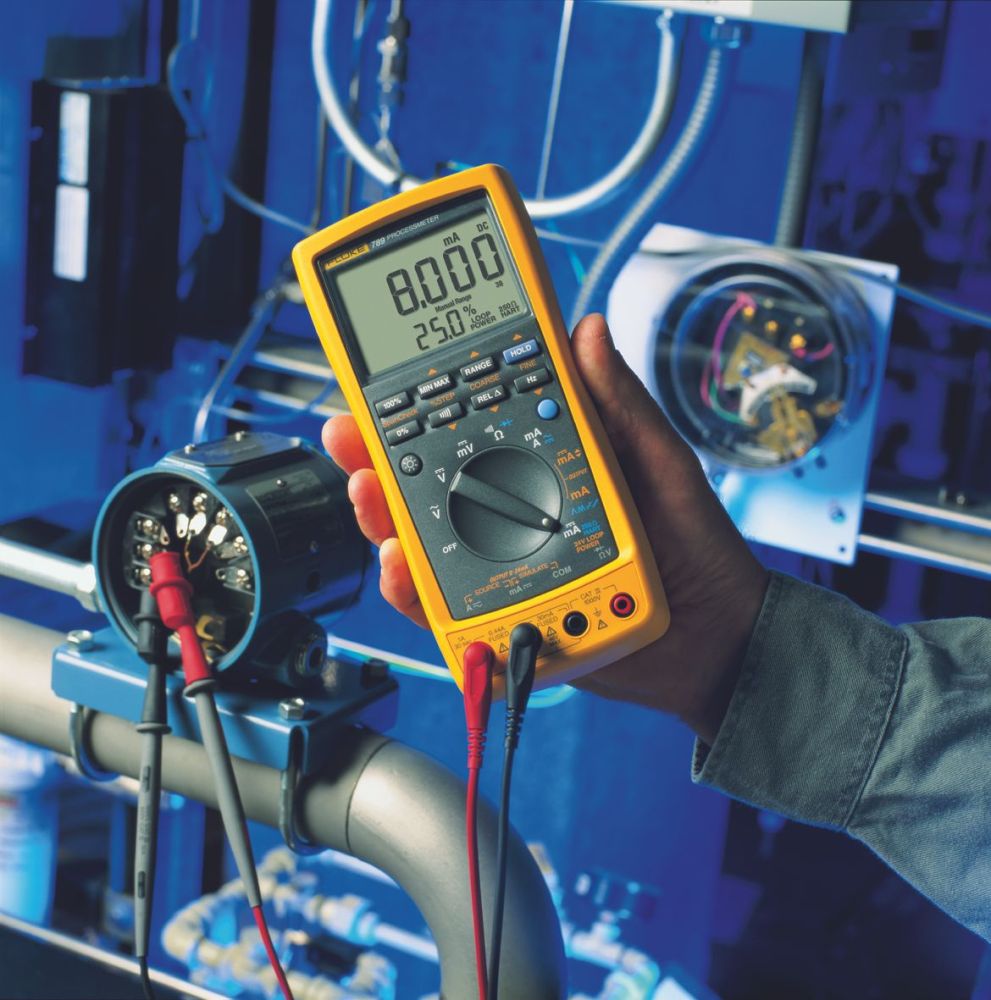

The Process Hand Multimeter 789/E from Beha is a combined measuring instrument that integrates a digital multimeter and a current loop calibrator in a robust handheld device. It is specifically designed for technicians who need to perform precise measurements and calibrations on-site during the maintenance and servicing of process plants. The device enables the testing and adjustment of 4-20 mA loops, which are widely used in industrial automation, and provides all necessary functions for daily field use.

Applications

The Process Hand Multimeter 789/E is used in industrial process measurement technology, particularly for the maintenance of sensors, transmitters, and control devices. It is suitable for applications in the chemical industry, power generation, process engineering, and other areas where 4-20 mA loops are used for signal transmission. The integrated 24 V loop power supply allows direct testing of transmitters without additional auxiliary power, simplifying on-site workflows.

Functions and Equipment in Detail

The device features an integrated current loop power supply with 24 V, enabling direct testing of transmitters in operation without requiring an external voltage source. This reduces the number of required auxiliary tools and speeds up diagnostics. The device’s infrared interface enables data transfer to a PC, with the optionally available FlukeView software allowing detailed analysis and graphical representation of the data. This function is particularly useful for documenting measurement results and ensuring traceability of maintenance work.

Technology Explained Simply

The Process Hand Multimeter 789/E combines the functions of a digital multimeter with those of a current loop calibrator. As a digital multimeter, it can measure voltages, currents, and resistances, with current measurement in 4-20 mA loops playing a central role. The integrated calibrator allows precise adjustment of the loop, for example, to set a transmitter to a specific value. The infrared interface operates contactlessly and enables data transmission without cables or direct connections.

Compatibility and Accessories

The device is designed for use with the optional FlukeView software, which can be installed on a PC. The software supports graphical representation and analysis of data transmitted via the infrared interface. No specific hardware or additional interface cables are required, as data transmission occurs via infrared. Compatibility with the software is therefore a central prerequisite for using the data analysis functions.

Mounting and Installation

The Process Hand Multimeter 789/E is designed as a handheld device and requires no mounting or installation. It is used directly at the measurement point, with the integrated power supply enabling transmitter testing without an external power source. Operation is performed via buttons and a display that shows the measured values. The infrared interface requires a direct line of sight to the receiving device, with the range and alignment of the transmitter and receiver antennas being critical.

Advantages in Operation

The combination of a digital multimeter and a current loop calibrator in a single device reduces the number of required tools and speeds up workflows. The integrated 24 V power supply enables transmitter testing without additional auxiliary power, increasing on-site flexibility. Infrared data transmission allows documentation and analysis of measurement results, ensuring traceability of maintenance work. The device is therefore particularly suitable for technicians working in industrial process measurement technology who require a reliable, mobile measurement solution.

Note: Batteries are not included in the delivery scope.

General
Type of deviceprocess handheld multimeter
Functionsdigital multimeter and loop calibrator
Loop power supply24 V
Software compatibilityFlukeView (optional)


Questions & answers

What is the delivery time of Beha 3977194 789/E process handheld multimeter ?

The article Beha 3977194 789/E process handheld multimeter is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Beha 3977194 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Beha 3977194 789/E process handheld multimeter always at the best possible price. We can give you a discount of 2% on Beha 3977194 789/E process handheld multimeter if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
