Beha 3565554 TL175E Twist Guard measurement cable with 4 mm adapters

Your rating:
Average rating
product review for Beha 3565554 TL175E Twist Guard measurement cable with 4 mm adapters
( 4.5 / 5 ) 13 ratings
Beha 3565554
This image may differ from the desired article.
Beha 3565554Beha 3565554
-9% 52,25 EUR 57,33 EUR
( 62,18 EUR incl. VAT )
≈ £43.73  |  ≈ $57.42
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Beha 3565554 TL175E Twist Guard measurement cable with 4 mm adapters
Lieske Part No.:368202
Mfg Part No: 3565554
UPC/EAN: 0095969528887
Weight:0.14 kg
Type:TL175E

Product information for Beha 3565554:

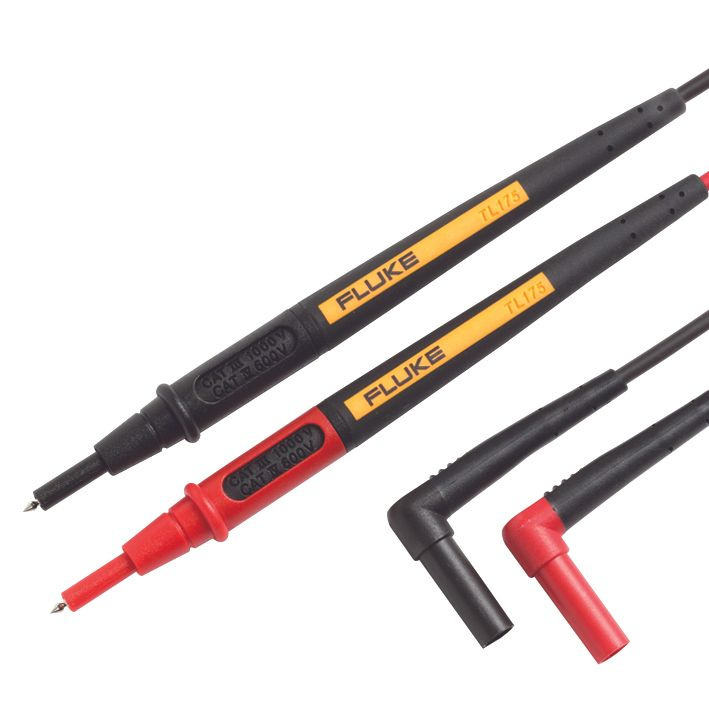

The Fluke TL175E TwistGuard test lead is a specialised accessory for electrical measuring instruments, designed for safe and versatile use in various environments. Manufacturer Beha offers with this model a test lead distinguished by an adjustable probe tip length. The length of the protruding tip can be changed from 19 mm to 4 mm by simply twisting the lead. This feature allows adaptation to different measurement conditions, with the patented, extendable insulation of the tip meeting the latest safety requirements. The test lead is designed for use in environments with increased risk, where a short tip is necessary to avoid short circuits or contact hazards.

Applications

The TL175E is suitable for measurements in electrical installations where operator and system safety are paramount. The adjustable tip length makes it particularly suitable for confined workspaces, such as in enclosures or when testing plug connections. The high mechanical durability and double silicone insulation ensure a long service life, even under harsh operating conditions. The test lead is approved for use in environments with temperatures from -20 °C to 55 °C and altitudes up to 2000 m above sea level.

Functions and Features in Detail

A central feature of the TL175E is the integrated WearGuard wear indicator. The lead is insulated with two silicone layers, with the inner layer in a contrasting colour. Mechanical damage such as scratches, notches, or wear will reveal the inner colour, indicating that the lead should be replaced. This increases safety, as damaged leads should not be used. The strain relief at the tip and plug is particularly durable and has been tested for over 30,000 bends without failure.

Technology Explained Simply

The test lead is double-insulated and made of silicone, a material that maintains its flexibility at both high and low temperatures. The insulation ensures high electrical insulation and mechanical stability. The removable, pointed 4-mm banana plugs allow flexible use, as they can be replaced or removed as needed. The test probes are designed to always display the correct category specification of the used tip, which is helpful for complying with safety regulations.

Compatibility and Accessories

The TL175E is equipped with a universal input plug that fits all measuring instruments using shielded 4-mm standard banana plugs. This increases compatibility with a wide range of measuring instruments. The test lead is approved for use in categories CAT II 1000 V, CAT III 1000 V, and CAT IV 600 V, with a maximum current of 10 A and pollution degree 2. The approval complies with safety standard EN61010-031:2008, which became effective from 1 March 2011.

Installation and Mounting

Mounting the test lead is done by simply plugging it into the measuring instrument. The removable plugs can be detached or attached as required. The adjustable tip length is changed by twisting the lead, with the new length taking effect immediately. No additional tools or mounting aids are required.

Operational Advantages

The TL175E offers high safety through its adjustable tip length and wear indicator. The mechanical robustness and long service life reduce replacement needs. Universal compatibility with 4-mm plugs and clear indication of category specifications facilitate safe use in various applications. The silicone insulation ensures good flexibility and temperature resistance, increasing reliability in different environments.

Safety Standards and Approvals

The test lead complies with standard EN61010-031:2008, which applies to electrical measuring instruments and accessories. The approval for CAT II 1000 V, CAT III 1000 V, and CAT IV 600 V ensures safe use in various electrical installations. The maximum current load is 10 A, and pollution degree 2 is intended for environments with low contamination.

General
Degree of protectionCAT II 1000 V, CAT III 1000 V, CAT IV 600 V V
Maximum current10 A
Pollution degree2
Ambient temperature-20 to 55 °C
Elevation2000 m
Insulationdouble insulated, silicone
Adjustable tip length19 mm to 4 mm
Tension reliefover 30,000 bends without failure
Plug connection4-mm banana plug, detachable
Safety standardEN61010-031:2008


Questions & answers

What is the delivery time of Beha 3565554 TL175E Twist Guard measurement cable with 4 mm adapters ?

The article Beha 3565554 TL175E Twist Guard measurement cable with 4 mm adapters is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Beha 3565554 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Beha 3565554 TL175E Twist Guard measurement cable with 4 mm adapters always at the best possible price. We can give you a discount of 2% on Beha 3565554 TL175E Twist Guard measurement cable with 4 mm adapters if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
