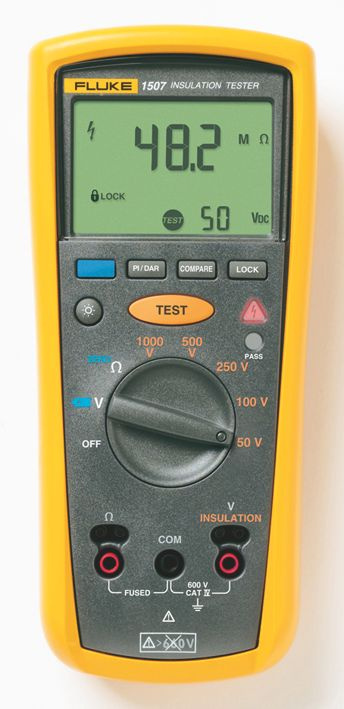

Beha 2427890 FLUKE-1507 insulation tester content_copy

The FLUKE-1507 from Beha is a battery-operated insulation tester designed for performing insulation, voltage, grounding, and continuity measurements. The device is particularly suitable for troubleshooting, commissioning, and preventive maintenance in electrical installations. It features multiple adjustable test voltages, allowing flexible adaptation to different measurement tasks. The probe is equipped with a trigger button to start the measurement precisely and simplify operation.

Applications
The FLUKE-1507 is used in electrical engineering and mechanical engineering, where reliable testing of insulation values in electrical wiring, motors, transformers, and other components is required. The wide range of test voltages from 50 V to 1,000 V allows application in various voltage ranges, for example in low-voltage installations or for testing high-voltage components in the lower range. The measurement functions for DC and AC voltage, as well as resistance and continuity, extend the application scope to general electrical diagnostic tasks.

Functions and Equipment in Detail
The device offers an insulation measurement range from 0.01 MΩ to 10 GΩ, enabling precise evaluation of insulation resistance across a broad spectrum. The test voltages are available in five steps: 50 V, 100 V, 250 V, 500 V, and 1,000 V. This selection allows adapted testing according to requirements and device type. The continuity test is performed with a test current of 200 mA to check the electrical connection between two points. The resistance measurement ranges from 0.01 Ω to 20.00 kΩ, making it suitable for testing grounding conductors or cable connections as well.

Technology Explained Simply
Insulation resistance measurement is performed by applying a defined test voltage and measuring the resulting leakage current. The resistance is calculated from the ratio of voltage to current. The input impedance of the device is nominally 3 MΩ and is designed with a maximum capacitive value of less than 100 pF, ensuring measurement accuracy at high resistances. The overvoltage category CAT IV 600 V indicates that the device is suitable for measurements near power sources such as distribution boards or meter boxes, where high transient voltages may occur.

Compatibility and Accessories
The device is designed for use with standard test accessories such as test leads and probes. It is used in conjunction with appropriate test probes and cables to safely reach the measurement points. The exact selection of accessories depends on the application and required safety. There are no specific accessory items mentioned in the sources as directly compatible, but the use of standard test accessories is common.

Mounting and Installation
The FLUKE-1507 is a handheld measuring device that does not require mounting. It is operated directly by hand, with test leads connected to the appropriate terminals. Operation is performed via buttons on the device, with the trigger button on the probe starting the measurement. The application typically takes place on stationary electrical installations, while adhering to safety regulations for electrical measurements.

Advantages in Operation
The combination of multiple test voltages, a wide measurement range, and the integration of insulation, voltage, and resistance measurement in a single device reduces the number of required measuring instruments. The CAT IV 600 V classification allows use in safety-critical areas. The battery-operated design provides mobility and independence from mains power, which is particularly advantageous for field measurements. The IP40 protection rating protects against contact with solid objects larger than 1 mm and against splashing water, but not against submersion or heavy splashing water.
