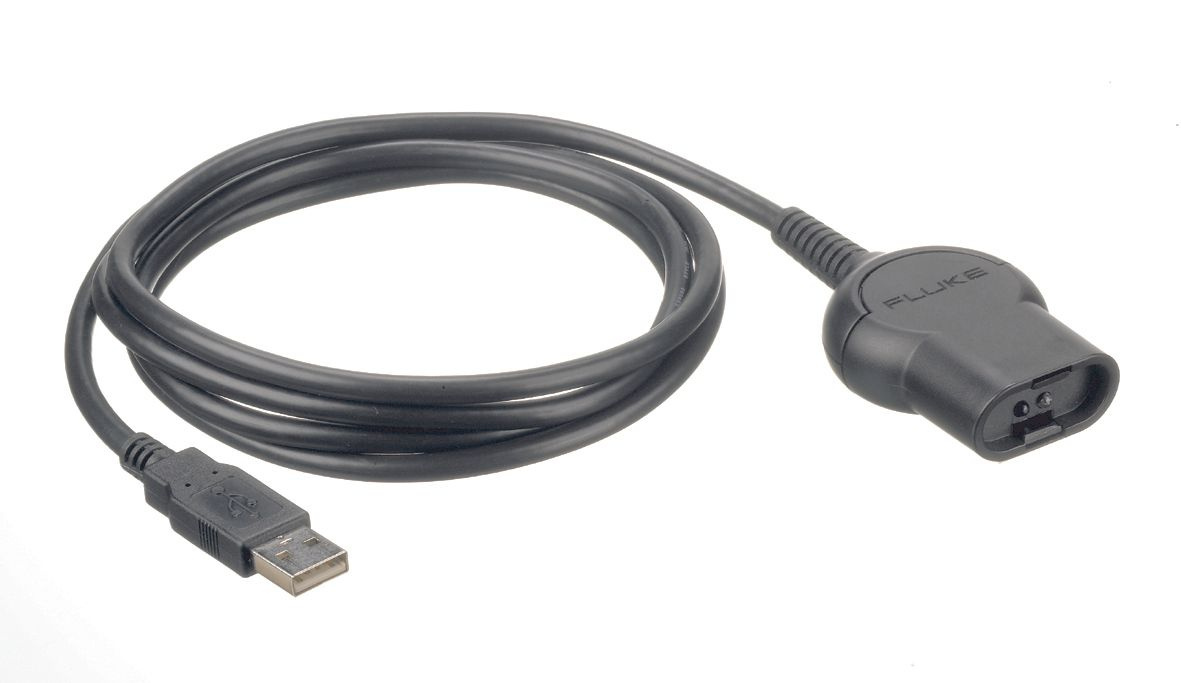

Beha 2166266 OC4USB optical interface cable

Your rating:
Average rating
product review for Beha 2166266 OC4USB optical interface cable
( 4.3 / 5 ) 8 ratings
Beha 2166266
This image may differ from the desired article.
Beha 2166266Beha 2166266
292,79 EUR 298,95 EUR
( 348,42 EUR incl. VAT )
≈ £245.07  |  ≈ $321.78
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Beha 2166266 OC4USB optical interface cable
Lieske Part No.:481215
Mfg Part No: 2166266
UPC/EAN: 0095969265430
Weight:0.193 kg
Type:OC4USB

Product information for Beha 2166266:

The Beha OC4USB is a safety interface cable specifically developed for connecting optically isolated serial interface ports of measurement devices to a standard USB interface of a PC. It serves as a bridge between devices such as ScopeMeters or power and supply analyzers and a computer, with optical isolation ensuring that measurements on voltage sources, particularly mains voltage or higher voltages, can be performed without potential reference, without the need to disconnect the PC from the measurement object. This increases safety when working with electrical devices and prevents potential short circuits or damage to the PC.

Applications

The cable is primarily intended for use with measurement devices from the Fluke Series 120, Fluke ScopeMeters Series 190, and Power Quality Analyzers from Series 43, 43B, and 430. These devices are used in industrial electrical engineering, facility management, and energy supply to analyze electrical parameters such as voltage, current, frequency, and power. The OC4USB enables the transfer of measurement data to a PC, where it can be visualized, stored, or further processed. The application is particularly relevant in environments where a direct electrical connection between the measurement device and the PC is not safe.

Functions and Equipment in Detail

The cable features optical isolation, providing galvanic separation between the measurement device and the PC. This prevents voltage surges or potential differences from being transmitted from the measurement object to the computer. The optical separation is achieved via an optical transmission channel that transfers data serially without electrical connection. The cable length is 1.5 meters when extended, which is sufficient to connect the PC and the measurement device in typical working environments.

Technology Explained Simply

Optical isolation is a central component of safety technology in measurement technology. It works by converting electrical signals into light signals, which are transmitted via an optical connection. On the receiving side, these light signals are converted back into electrical signals. This process occurs without galvanic connection, eliminating the risk of current flow between the device and the PC. The connection is made via a serial interface, which is connected to the PC through the USB interface. Support for operating systems Windows Vista, XP, 2000, Me, and 98 SE enables use on a wide range of older and modern systems.

Compatibility and Accessories

The OC4USB is compatible with the mentioned Fluke devices: Series 120, ScopeMeters Series 190, and Power Quality Analyzers from Series 43, 43B, and 430. These devices are widely used in industrial electrical engineering and the energy sector. The connection is made via the serial port of the measurement device, which is optically isolated, and via the USB interface of the PC. No additional accessories are required to establish the connection.

Installation and Mounting

Installation is performed by simply connecting the cable to the serial port of the measurement device and to the USB port of the PC. No additional drivers or software are required, as compatibility with the mentioned operating systems is supported by default. The cable length of 1.5 meters allows for flexible placement of the PC relative to the measurement device.

Advantages in Operation

Using the OC4USB enables direct visualization and documentation of measurement data on a PC without the PC being directly electrically connected to the measurement environment. This increases safety when working with electrical devices. The optical isolation protects the PC from voltage surges and potential differences. The connection is stable and reliable, as it is based on proven serial interface technology. Compatibility with a wide range of Fluke devices and operating systems makes the cable a universally applicable accessory in industrial measurement technology.

General
Degree of protectionoptically isolated -
Cable length1,5 m
CompatibilityFluke Series 120, Fluke ScopeMeters Series 190, Series 43, 43B, 430 Power Quality Analyzers -
Operating system supportWindows Vista/XP/2000/Me/98 SE -
InterfaceUSB -
ConnectionSerial port -


Questions & answers

What is the delivery time of Beha 2166266 OC4USB optical interface cable ?

The article Beha 2166266 OC4USB optical interface cable is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Beha 2166266 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Beha 2166266 OC4USB optical interface cable always at the best possible price. We can give you a discount of 2% on Beha 2166266 OC4USB optical interface cable if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
