Beha 2098691 80PK-24 air sensor thermocouple type K

Your rating:
Average rating
product review for Beha 2098691 80PK-24 air sensor thermocouple type K
( 4.7 / 5 ) 9 ratings
Beha 2098691
This image may differ from the desired article.
Beha 2098691Beha 2098691
-9% 222,30 EUR 243,92 EUR
( 264,54 EUR incl. VAT )
≈ £186.07  |  ≈ $244.31
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Beha 2098691 80PK-24 air sensor thermocouple type K
Lieske Part No.:661308
Mfg Part No: 2098691
UPC/EAN: 0095969242691
Weight:0.141 kg
Type:80PK-24

Product information for Beha 2098691:

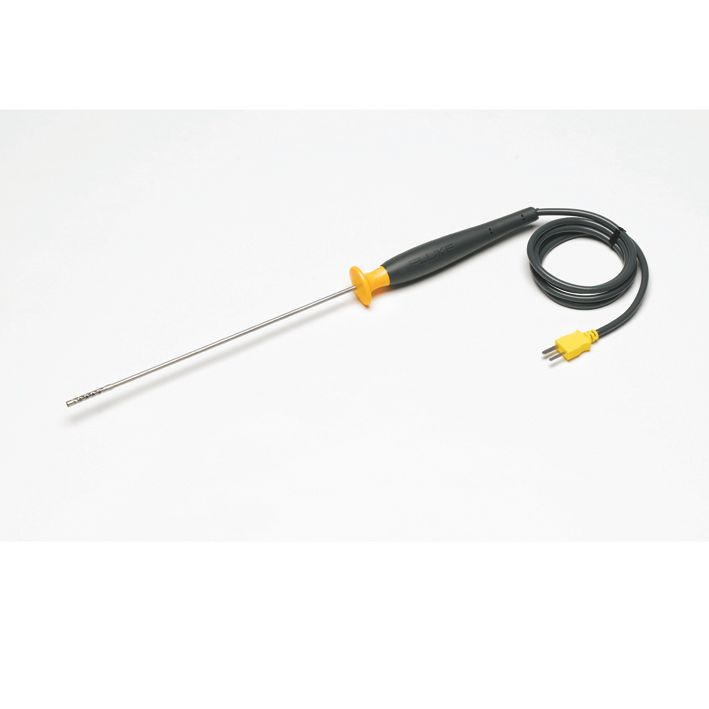

The Beha 80PK-24 is an air sensor with integrated thermocouple type K, specifically designed for measuring air temperatures as well as non-corrosive gases. The device serves as a replacement or additional sensor for measuring instruments compatible with thermocouple type K, enabling precise temperature measurements in industrial or technical applications. The sensing tip is protected by a cap made of perforated stainless steel, ensuring mechanical stability and simultaneous air permeability. This construction ensures that temperature measurement is not affected by external influences such as dust or mechanical stress, while allowing airflow to pass unobstructed at the measurement point.

Applications
The 80PK-24 is suitable for applications where the temperature of air or non-corrosive gases must be continuously or point-wise recorded. Typical use cases include monitoring ventilation and air conditioning systems, temperature control in production processes, and measurements in rooms or ducts where no aggressive gases are present. The use of stainless steel for the protective cap also makes the device suitable for environments where corrosion is a concern, provided no corrosive gases are present.

Functions and Equipment in Detail
The type K thermocouple generates a voltage proportional to the measured temperature, allowing the temperature to be read out digitally or analogously. The perforated cap made of stainless steel protects the sensitive sensing tip from mechanical damage without impeding airflow. This ensures fast and accurate temperature response. The design provides high long-term stability, which is important for continuous measurements in industrial environments.

Technology Explained Simply
A type K thermocouple consists of two different metals joined at a point. When there is a temperature difference between this point and a reference point, an electrical voltage is generated, proportional to the temperature difference. This voltage is converted by a measuring device into a temperature reading. The perforated stainless steel protective cap ensures that the sensing tip is protected from contamination and mechanical stress without affecting measurement accuracy. The use of stainless steel increases the sensor's lifespan in humid or slightly corrosive environments.

Compatibility and Accessories
The 80PK-24 is designed for measuring instruments that support type K thermocouples. It can be used as a replacement sensor or additional measurement point in existing systems. Exact compatibility depends on the connection options and signal processing of the respective device.

Mounting and Installation
Installation is carried out by inserting the sensor into the air or gas flow to be measured. The perforated cap allows for easy installation, as it does not obstruct airflow. The exact mounting method depends on the specific application and the measuring device used.

The operational advantages lie in the combination of mechanical stability, high measurement accuracy, and long service life. The stainless steel protective cap ensures high robustness, while the perforated structure guarantees air permeability. This enables reliable and continuous temperature measurement in various industrial and technical applications. Compatibility with type K thermocouples expands the range of applications in existing measurement systems.

General
Thermocouple typeK
Application rangeAir and non-corrosive gases
Protection capperforated, made of stainless steel
