be quiet! Power supply Straight Power 12 1000W 80+ Platinum Mod.
|
196,94 EUR |
|
|
( 234,36 EUR incl. VAT ) ≈ £164.84 | ≈ $220.38 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 26. Jul 2026 |
|---|---|
| Lieske Part No.: | 2075171 |
| Mfg Part No: | BN338 |
| UPC/EAN: | 4260052189436 |
| Weight: | 0.123 kg |
Product information for Be quiet! BN338:
| Certificates | |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), UKCA, WEEE, CE |
| Design | |
| Product colour | Black |
| Cooling type | Active |

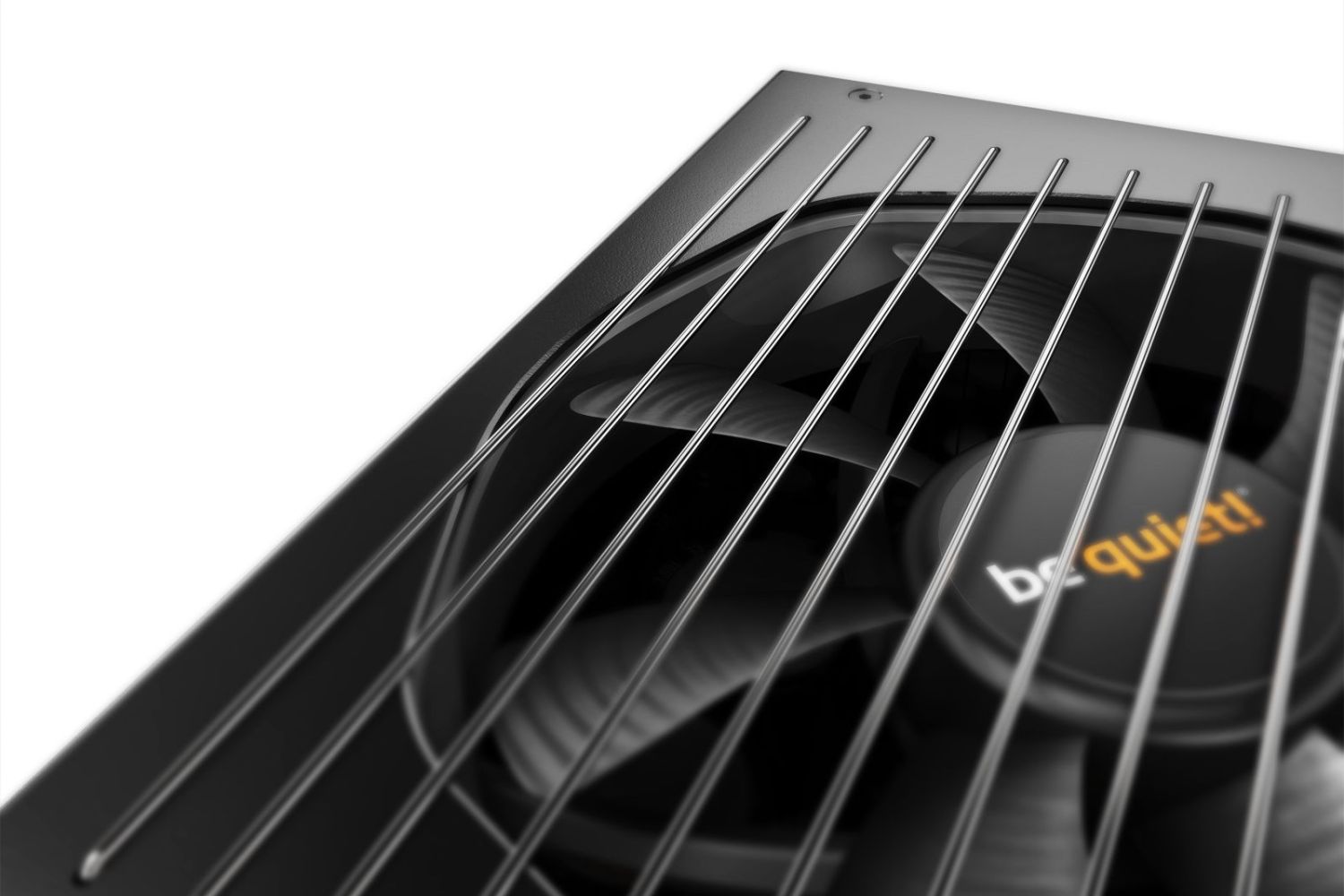

| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2100 RPM |
| Illumination | |
| On/off switch | |
| Logistics data | |
| Shipping (inner) case length | 65.1 cm |
| Shipping (inner) case width | 28.2 cm |
| Shipping (inner) case height | 34.6 cm |
| Shipping (inner) case net weight | 22.9 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Warranty period | 10 year(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |

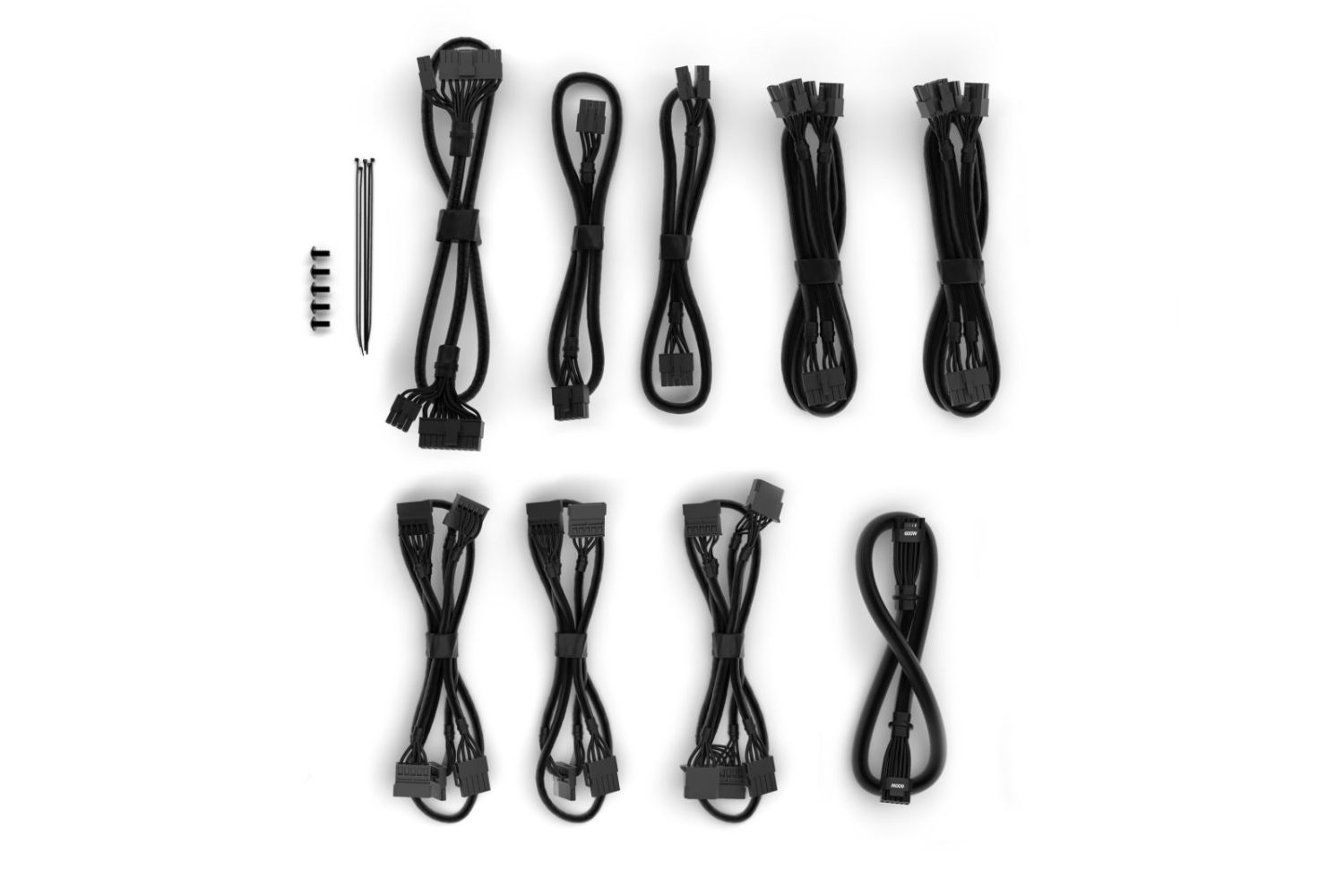

| Cables included | CPU, SATA |
| Cable tie(s) included | |
| Packaging data | |
| Package width | 248 mm |
| Package depth | 328 mm |
| Package height | 102 mm |
| Package weight | 3.56 kg |
| Package type | Box |
| Performance | |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 28.9 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 9 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 550,700,850,1000 mm |
| Peripheral (Molex) power cable length | 1000,850 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 70 cm |

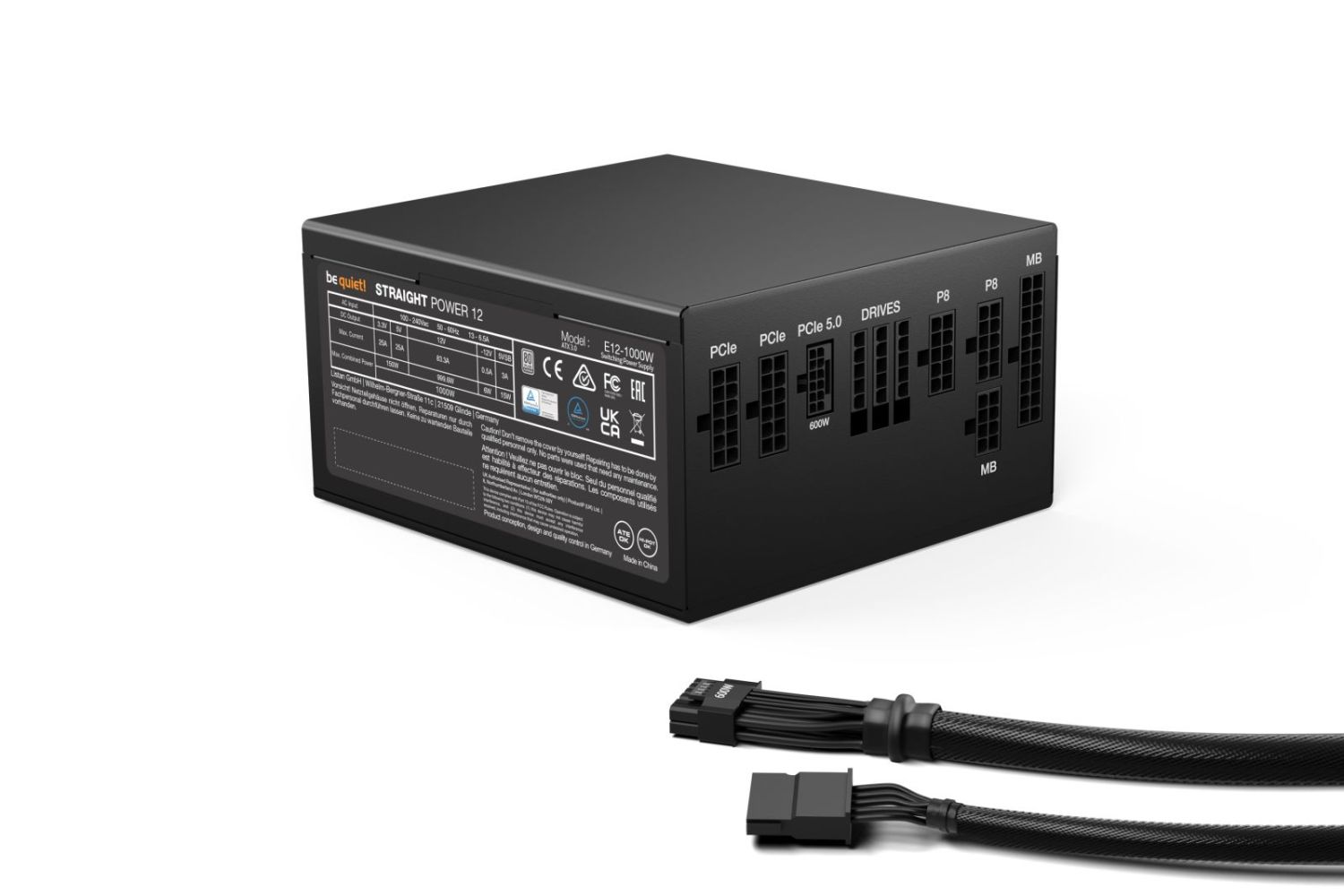

| Cabling type | Fully-Modular |
| EPS power connector (8-pin) | |
| EPS power connector (4+4 pin) | |
| PCI Express connector | |
| Power | |
| Total power | 1000 W |
| Peak power | 1070 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 13/6.5 A |
| Power factor | 0.99 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 150 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 25.3 ms |
| Efficiency | 91.8% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Under voltage |
| Technical details | |
| Sustainability certificates | Triman, ENERGY STAR, ErP |
| Sustainability compliance | |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.85 kg |
Questions & answers
What is the delivery time of be quiet! Power supply Straight Power 12 1000W 80+ Platinum Mod.?
The article be quiet! Power supply Straight Power 12 1000W 80+ Platinum Mod. is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Be quiet! BN338 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you be quiet! Power supply Straight Power 12 1000W 80+ Platinum Mod. always at the best possible price. We can give you a discount of 2% on be quiet! Power supply Straight Power 12 1000W 80+ Platinum Mod. if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
