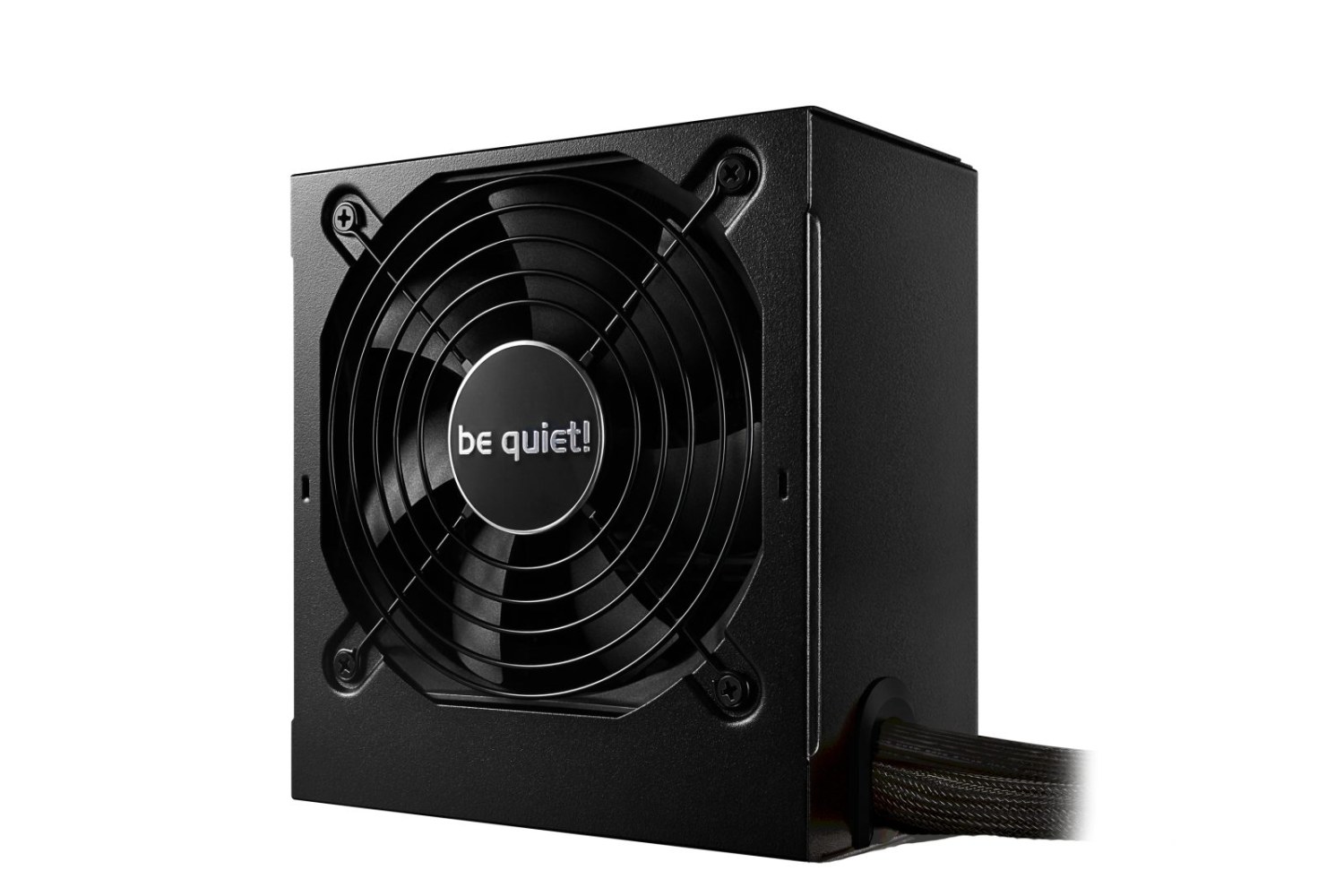

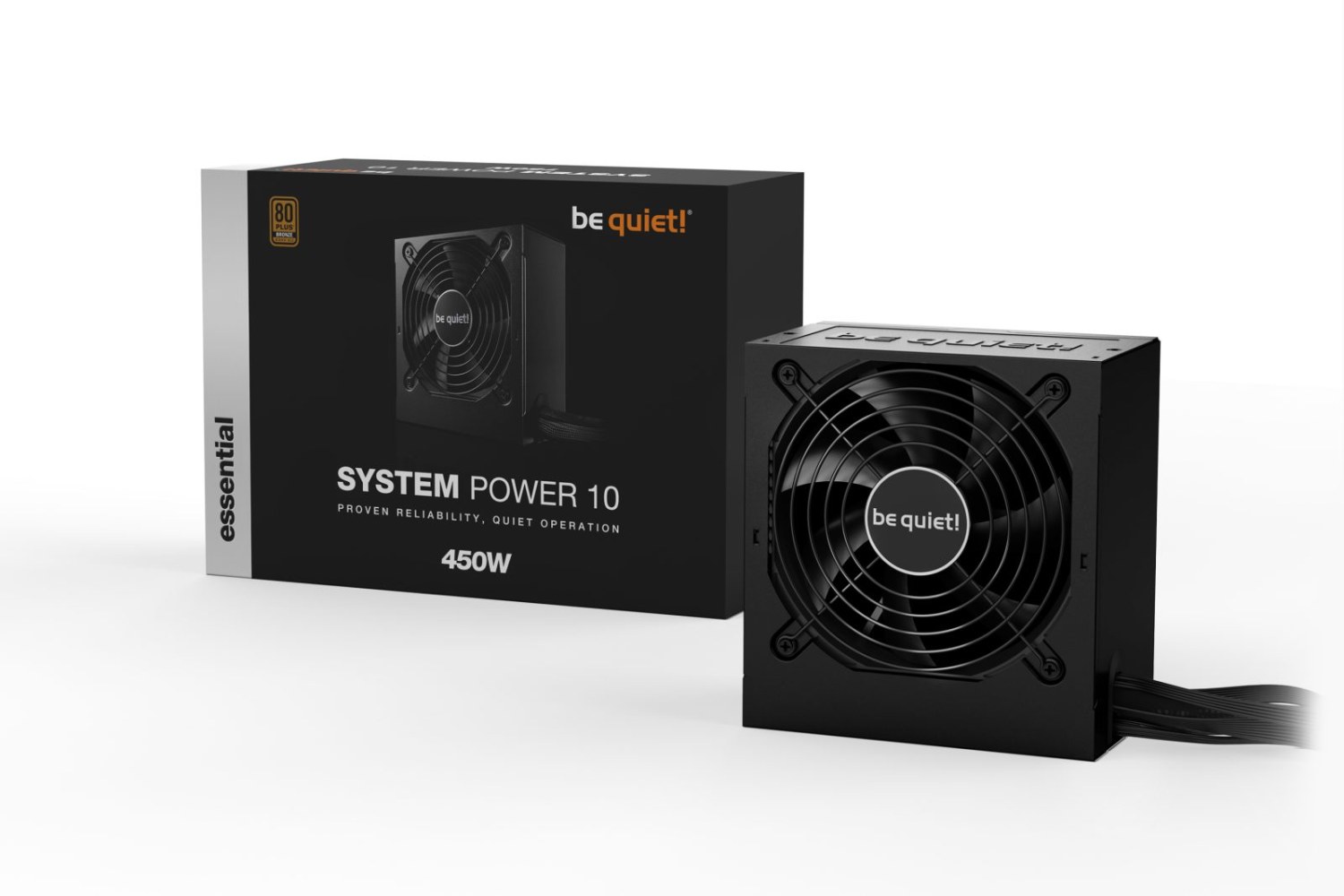

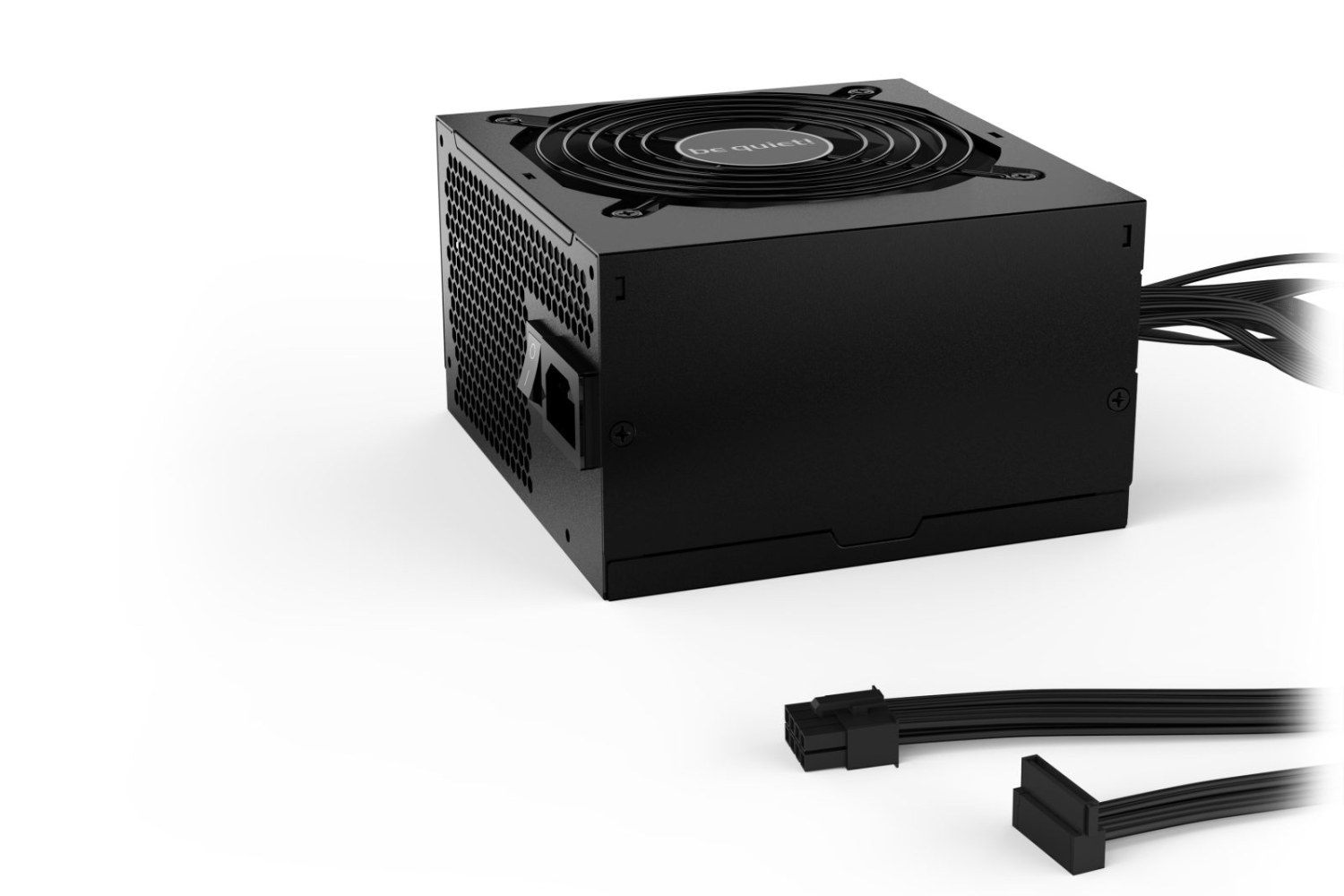

be quiet! Power supply system Power 10 450W 80+ Bronze
|
44,24 EUR 44,24 EUR |
|
|
( 52,64 EUR incl. VAT ) ≈ £37.03 | ≈ $49.50 plus delivery charges: 55,00 € |
|
| in stockinfo_outline | |
| End-Of-Life: | 11. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1707263 |
| Mfg Part No: | BN326 |
| UPC/EAN: | 4260052189061 |
| Weight: | 2 kg |
| Certificates | |
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS, WEEE |
| Certification | CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia) |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 1800 RPM |
| Illumination | |
| On/off switch | |
| Logistics data | |
| Warranty period | 5 year(s) |
| Country of origin | Germany |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Other features | |

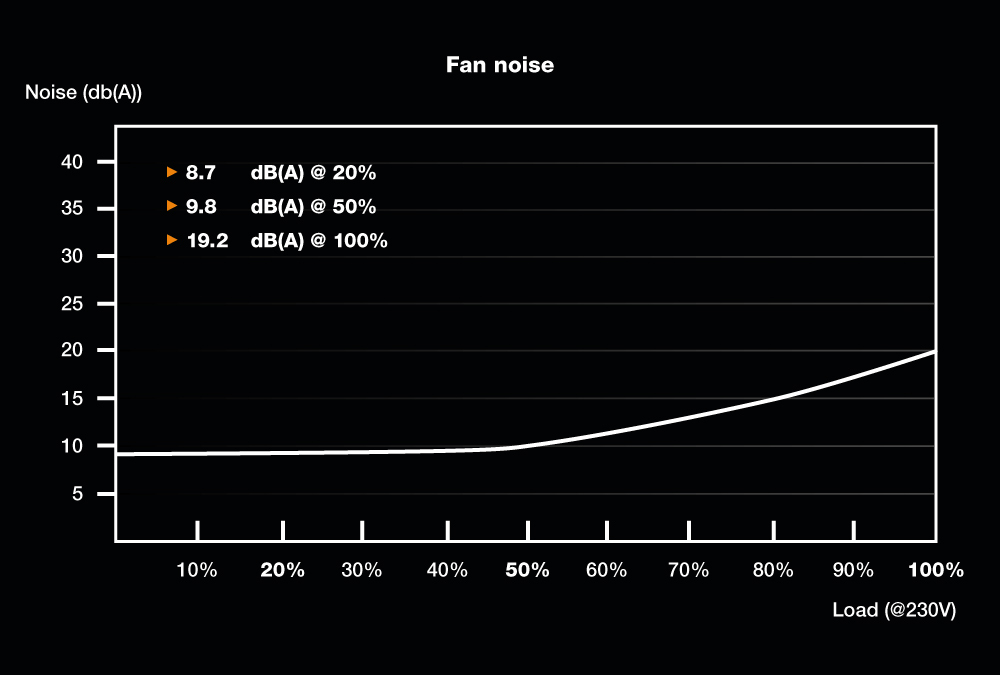

| Noise level (silent mode, <30%) | 8.7 dB |
| Noise level (quiet mode, 50%) | 9.8 dB |
| Noise level (full-load mode, 100%) | 19.2 dB |
| Screws included | |
| Packaging data | |
| Manual languages | German, English, Spanish, French, Polish, Russian |
| Package width | 195 mm |
| Package depth | 268 mm |
| Package height | 97 mm |
| Package weight | 2.1 kg |
| Manual | |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.52 |
| EPS version | 2.92 |
| Noise level | 19.2 dB |
| Bearing technology | Sleeve |
| Mean time between failures (MTBF) | 100000 h |
| Ports & interfaces | |

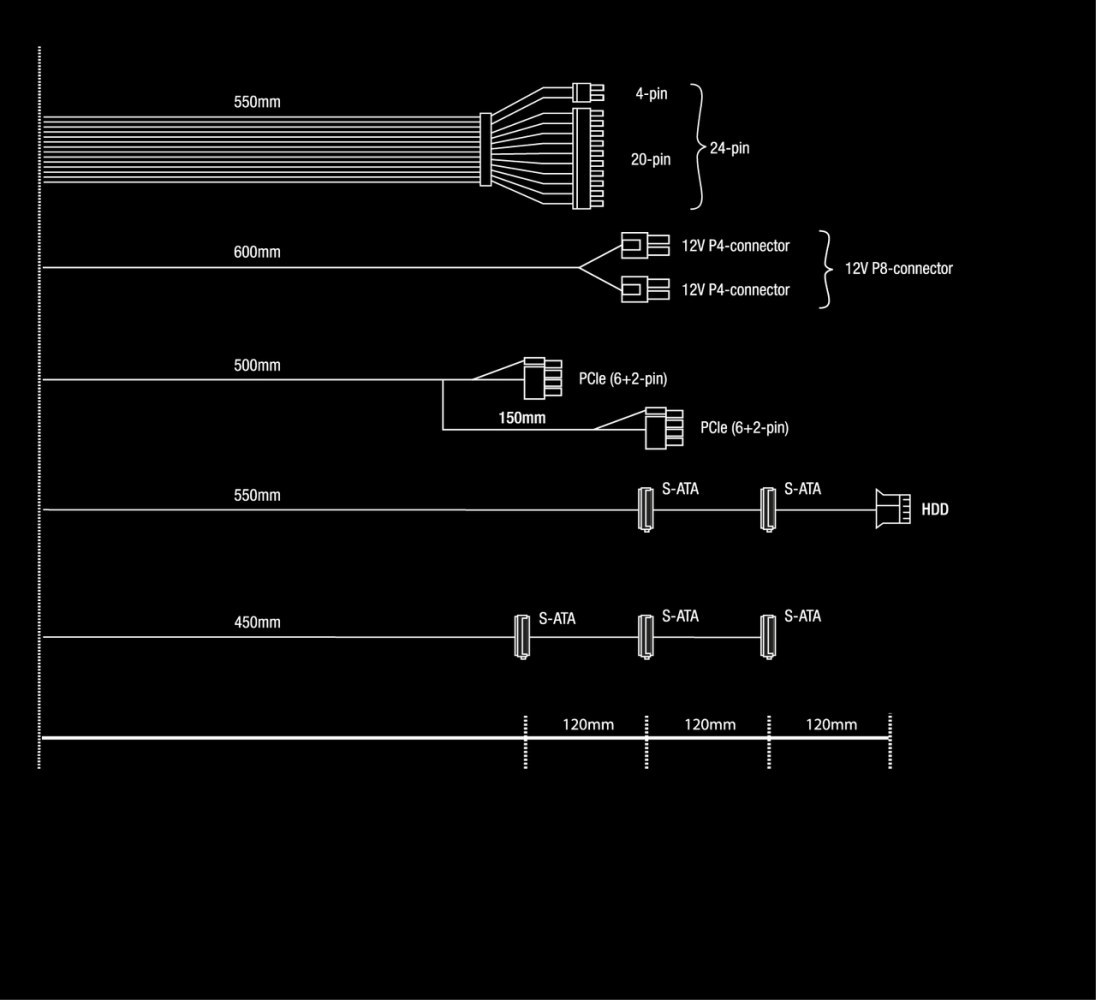

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 5 |
| Number of PATA power connectors | 1 |
| SATA power cable length | 450,550,570,670,690,790 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 790 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 65 cm |
| CPU power cable length | 60 cm |
| Cabling type | Non-Modular |
| CPU power connector (4+4 pin) | |
| ATX power connector (20+4 pin) | |
| PCI Express connector | |
| Power | |
| Total power | 450 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 4 A |
| Power factor | 0.95 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 450 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 37.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Efficiency | 88.5% |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Technical details | |
| Sustainability certificates | ENERGY STAR, ErP |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 86 mm |
| Height | 150 mm |
| Weight | 1.74 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of be quiet! Power supply system Power 10 450W 80+ Bronze?
The article be quiet! Power supply system Power 10 450W 80+ Bronze is currently in stock
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Be quiet! BN326 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you be quiet! Power supply system Power 10 450W 80+ Bronze always at the best possible price. We can give you a discount of 2% on be quiet! Power supply system Power 10 450W 80+ Bronze if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
