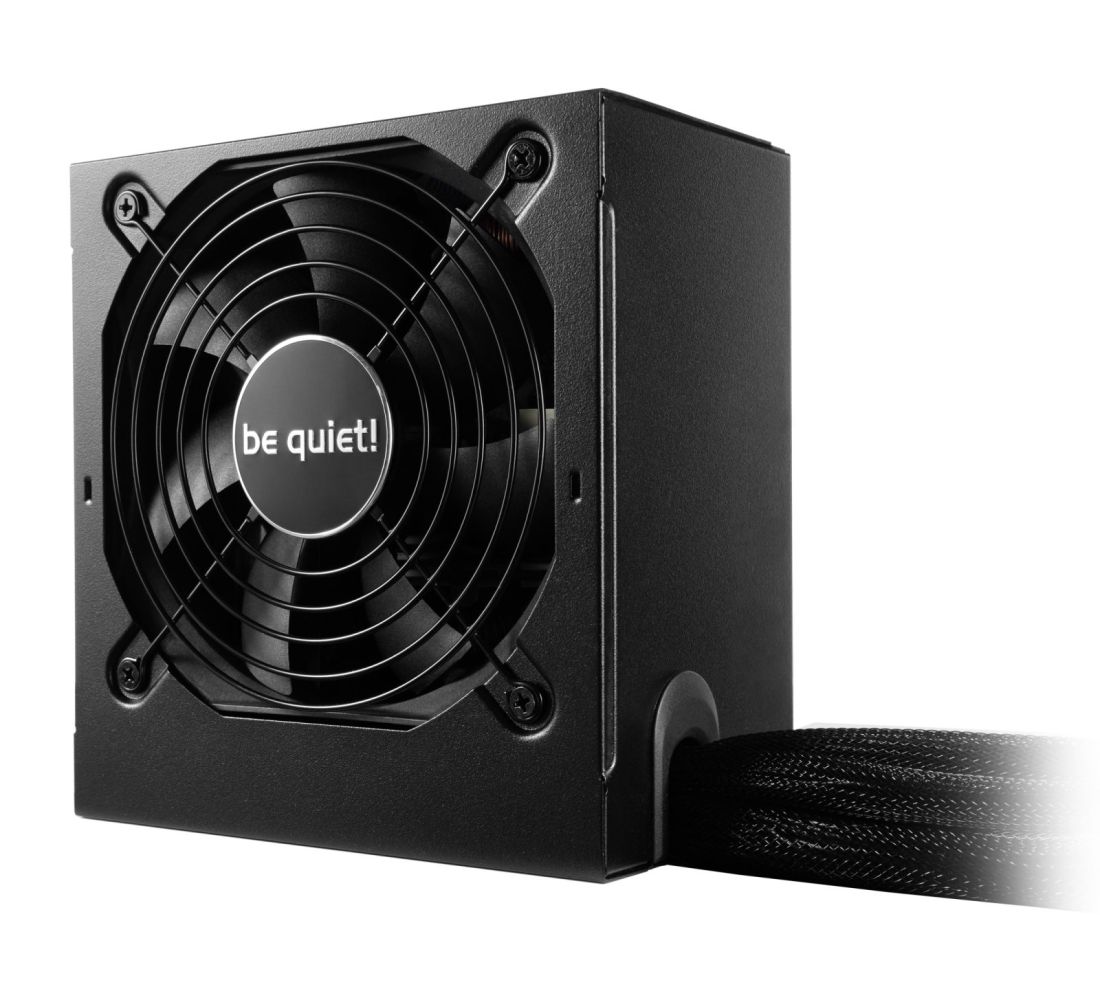

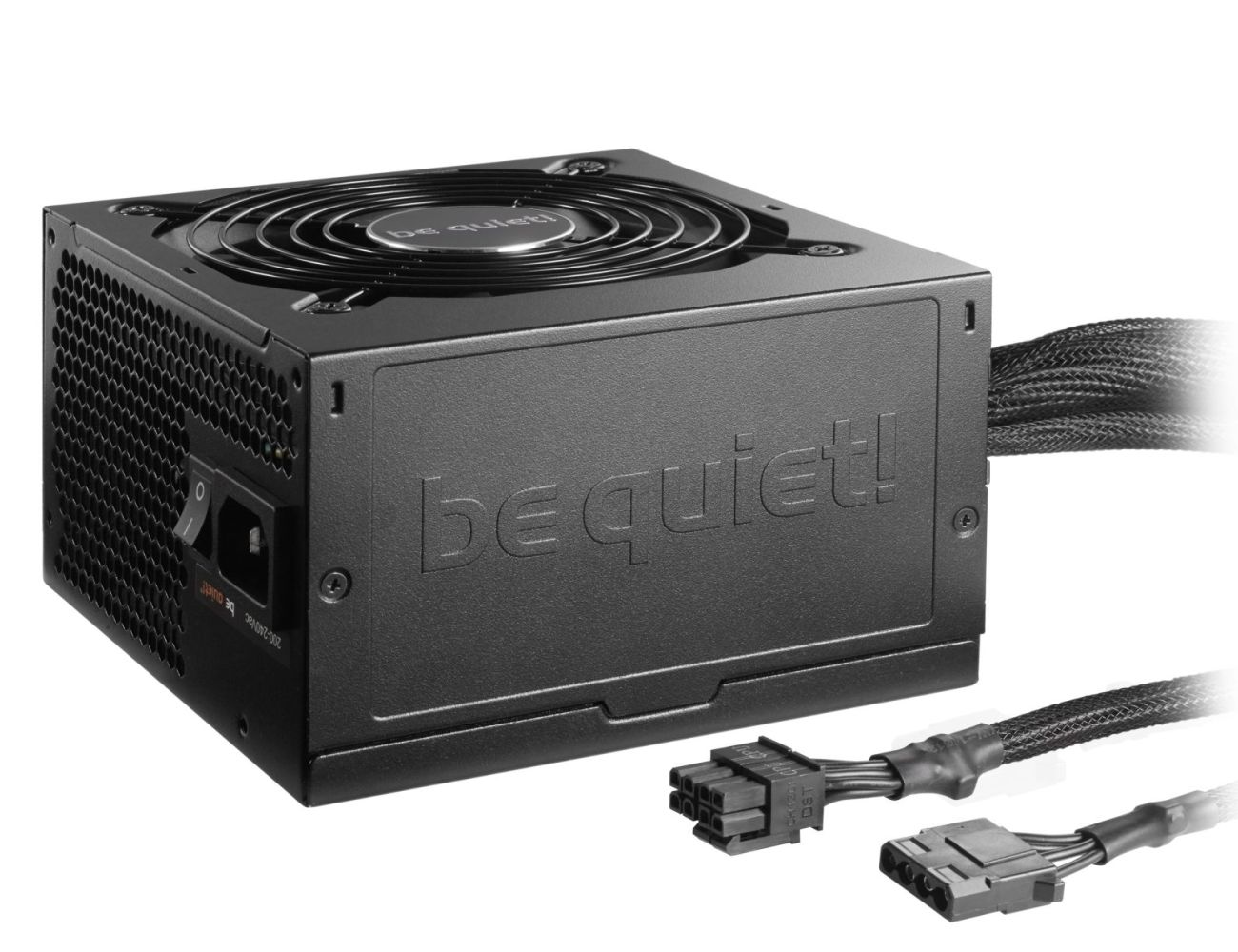

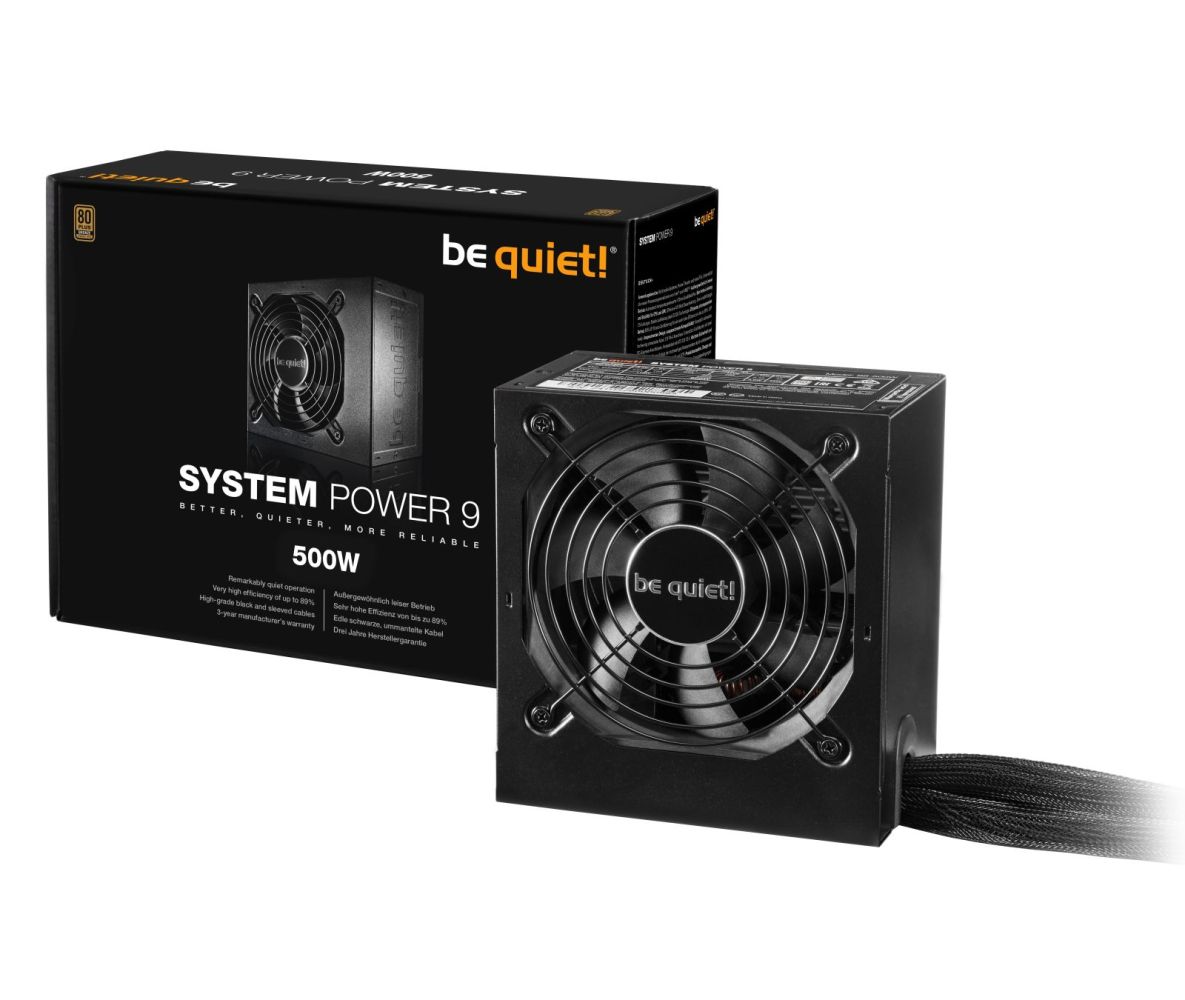

Be quiet! BN246 System Power 9 500W ()
|
59,08 EUR |
|
|
( 70,30 EUR incl. VAT ) ≈ £49.45 | ≈ $66.11 plus delivery charges: 55,00 € |
|
| in stockinfo_outline | |
| End-Of-Life: | 12. Sep 2026 |
|---|---|
| Lieske Part No.: | 1868573 |
| Mfg Part No: | BN246 |
| UPC/EAN: | 4260052186053 |
| Weight: | 0.123 kg |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, CB, TÜV, RCM, CU |
| Design | |
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | |
| On/off switch | |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Noise level (silent mode, <30%) | 11.1 dB |
| Noise level (quiet mode, 50%) | 13.6 dB |
| Noise level (full-load mode, 100%) | 28.2 dB |
| Screws included | |
| Packaging content | |
| Cables included | AC |
| Packaging data | |
| Package width | 97 mm |
| Package depth | 268 mm |
| Package height | 195 mm |
| Package weight | 2.16 kg |
| Package type | Box |
| Manual | |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| Bearing technology | Sleeve |
| Silent mode | |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 350,550 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| CPU power cable length | 60 cm |
| Cabling type | Non-Modular |
| CPU power connector (4+4 pin) | |
| Power | |
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 4 A |
| Power factor | 0.95 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 24 A |
| Max output current (+12V2) | 20 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Efficiency | 89% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.92 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
