Be quiet! BL134 Fan 140×140×25 Light Wings PWM Reverse Black

Your rating:
Average rating
product review for Be quiet! BL134 Fan 140×140×25 Light Wings PWM Reverse Black
( 5 / 5 ) 2 ratings
Be quiet! BL134
This image may differ from the desired article.
Be quiet! BL134Be quiet! BL134Be quiet! BL134Be quiet! BL134
25,86 EUR 25,96 EUR
( 30,77 EUR incl. VAT )
≈ £21.64  |  ≈ $28.42
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >10 pieces
1x Be quiet! BL134 Fan 140×140×25 Light Wings PWM Reverse Black
Datasheet:file_download Download
Lieske Part No.:1045318
Mfg Part No: BL134
UPC/EAN: 4260052192894
Weight:0.31 kg
Type:CPNT

Product information for Be quiet! BL134:

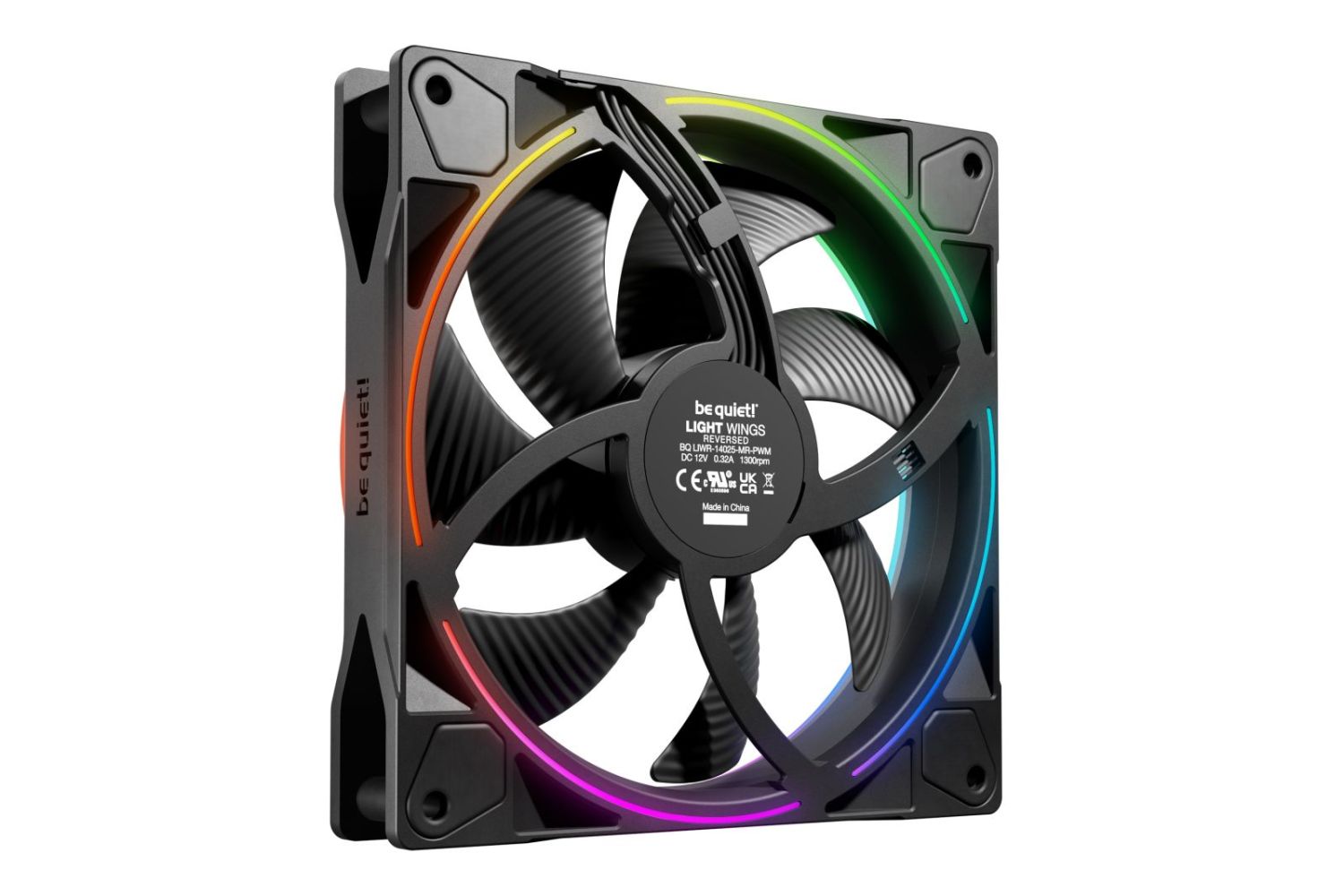

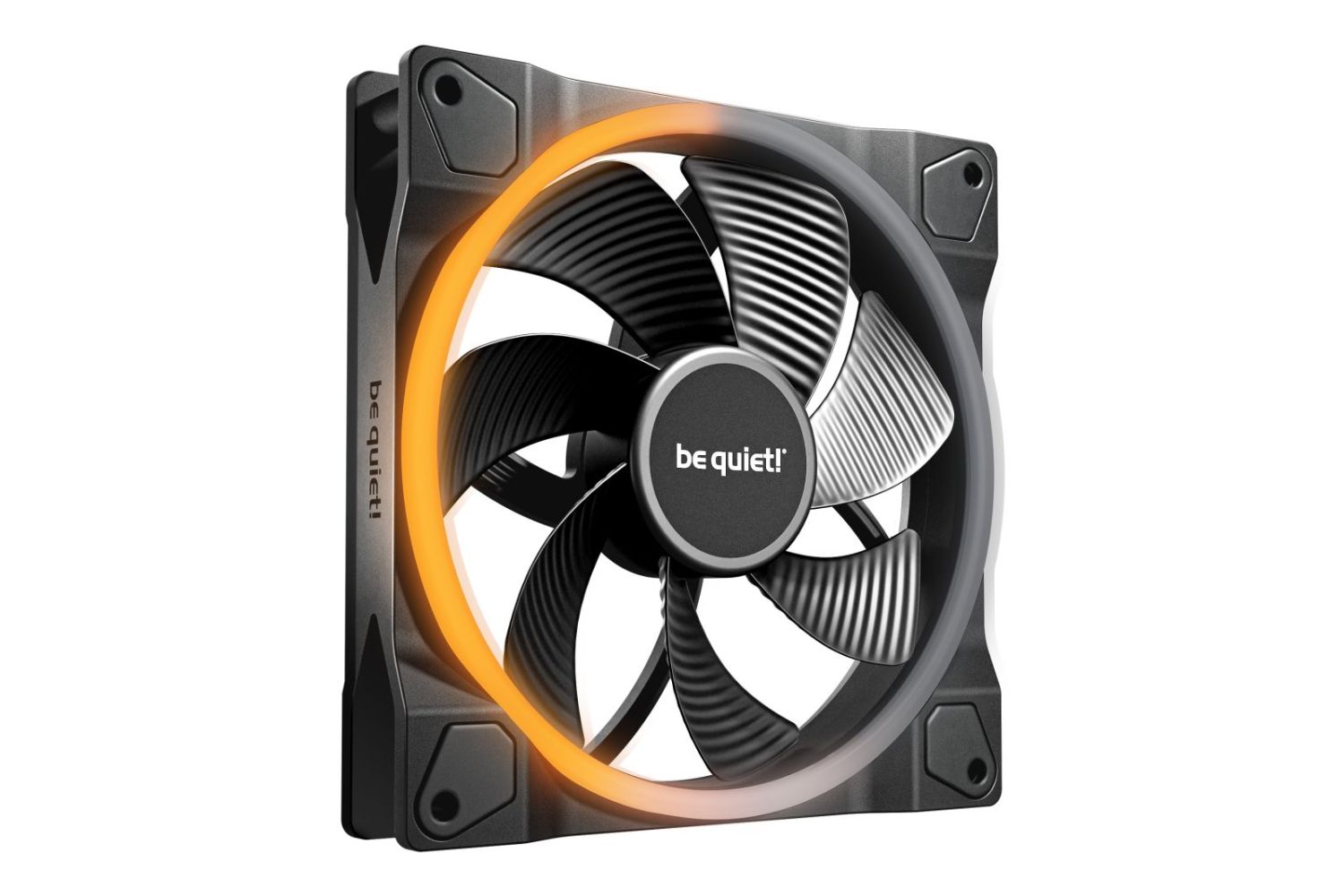

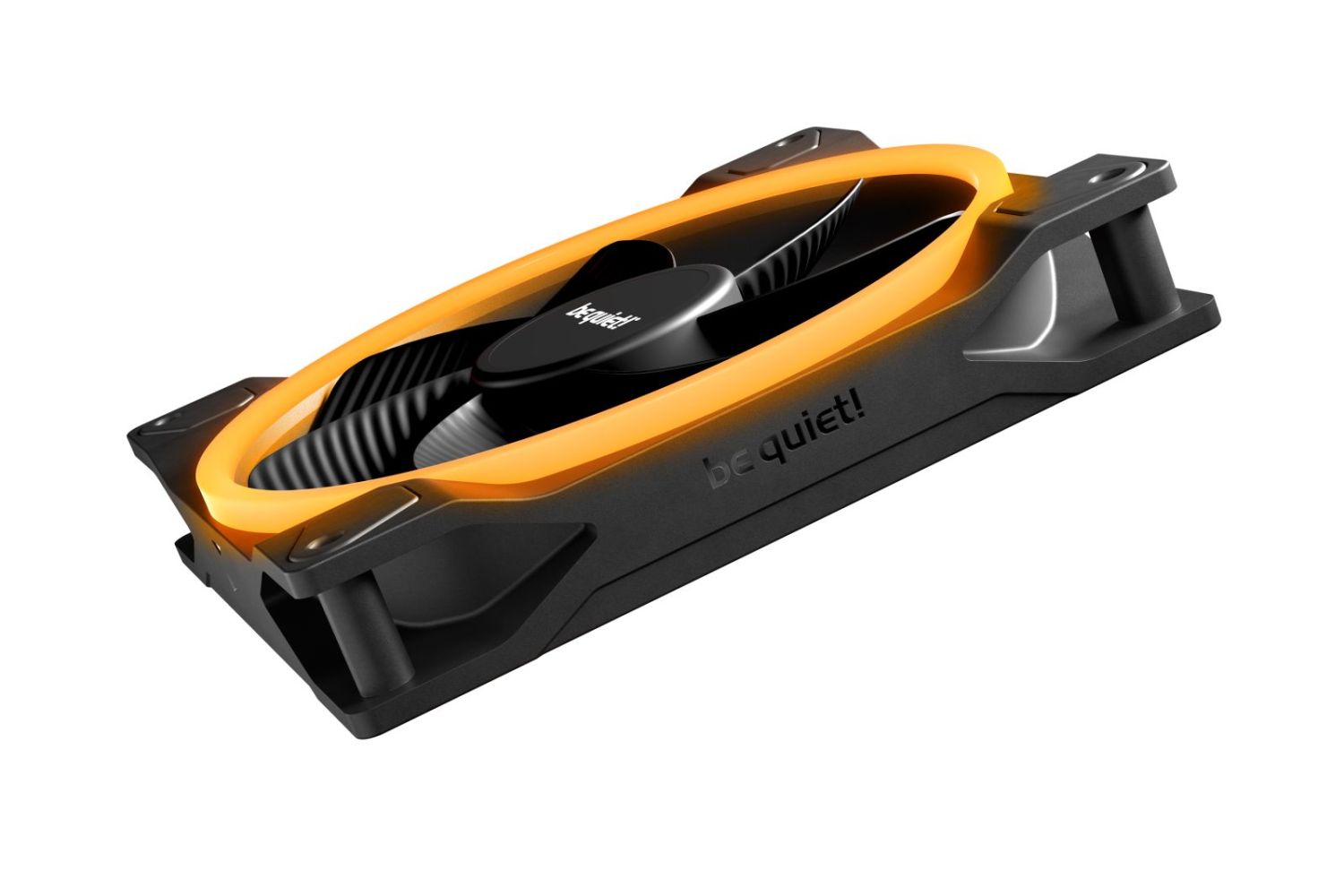

The be quiet! Light Wings 140 mm PWM Reverse Black is a case fan with a 14 cm diameter, specifically designed for use in computer cases. It features PWM control and is optimized for operation on the side or bottom of the case, with inverted fan blades enabling efficient airflow and reduced noise levels. The fan is available in black and offers ARGB lighting with 20 LEDs visible on both the front and rear sides. The lighting can be synchronized with the ARGB settings of the motherboard to create a customized appearance.

Applications

The fan is ideal for systems in the gaming and media editing sectors, where both powerful cooling and an aesthetic design are required. The inverted blade design provides high air pressure, making it particularly suitable for installation positions as intake or bottom fans. The combination of high airflow and low noise level makes it a suitable solution for quiet yet efficient cooling in modern PC cases.

Features and Specifications in Detail

The fan reaches a maximum rotational speed of 1300 rpm and generates an airflow of 87.3 m³/h (51.4 cfm). The maximum air pressure is 1.1 mmH2O, enabling effective airflow even under higher resistance. The noise level is up to 25.5 dB(A), ensuring quiet operation. The lighting is powered via a 5V ARGB connector, allowing for a wide range of colors and effects. The 20 LEDs ensure even illumination on both the front and rear sides of the fan.

Technology Explained Simply

The fan is equipped with a rifle bearing, enabling a long service life of up to 60,000 hours. This bearing type ensures stable and wear-resistant rotation of the fan blades. The PWM control (pulse width modulation) allows precise adjustment of the rotational speed according to cooling requirements, optimizing both performance and noise levels. The voltage range is between 5 V and 13.2 V, with a nominal voltage of 12 V. The fan's power consumption is 3.8 W (nominal current 0.67 A), with the fan current being 0.08 A.

Compatibility and Accessories

The fan features a 4-pin connector, enabling connection to PWM-compatible motherboards or fan controllers. The ARGB lighting can be synchronized with the motherboard settings to ensure consistent lighting within the system. The package includes four fan screws required for mounting in the case. The fan dimensions are 140 x 140 x 25 mm, fitting standard 140 mm openings. The cable length is 0.5 m.

Installation and Mounting

Mounting is done using the included screws at the designated mounting points in the case. The inverted blade design requires specific orientation to ensure optimal airflow—particularly when installed as an intake or bottom fan. The 4-pin connector allows direct connection to the PWM headers on the motherboard or a fan controller.

Operational Advantages

The fan offers an excellent balance between cooling performance and noise level. The 60,000-hour service life of the rifle bearing ensures high reliability. The ARGB lighting expands the visual customization options for the system without affecting cooling performance. The PWM control enables adaptive speed regulation, optimizing energy consumption and noise level according to load conditions. The construction with 7 noise-optimized and inverted fan blades reduces turbulence and ensures even airflow.

Certifications and Sustainability

The fan complies with CE, RoHS, UKCA, and WEEE conformity certifications. It carries the Triman sustainability certification. Product design, development, and quality control are carried out in Germany. The warranty period is 3 years.

Design
Product colourBlack
Number of fans1 fan(s)
Illumination colourMulti
Fan connector4-pin
Display typeNot applicable
Illumination LEDYes
Logistics data
Products per shipping (inner) case30 pc(s)
Shipping (inner) case width32 cm
Shipping (inner) case length47.8 cm
Shipping (inner) case height20 cm
Shipping (inner) case gross weight10.5 kg
Packaging content
Number of screws4
Screws includedYes
Performance
Suitable locationComputer case
TypeFan
Fan diameter14 cm
Rotational speed (max)1300 RPM
Noise level (high speed)25.5 dB
Maximum airflow51.4 cfm
Airflow87.3 m³/h
Maximum air pressure1.1 mmH2O
Bearing typeRifle bearing
Quantity per pack1 pc(s)
Fan's mean time to failure (MTTF)60000 h
Pulse-width modulation (PWM) supportYes
Power
Voltage5 - 13.2 V
Rated voltage12 V
Fan power consumption3.8 W
Rated current0.67 A
Fan current0.08 A
Technical details
Sustainability certificatesTriman
Warranty period3 year(s)
Compliance certificatesCE, RoHS, UKCA, WEEE
Weight & dimensions
Height140 mm
Fan dimensions (W x D x H)140 x 140 x 25 mm
Fan weight241 g
Cable length0.5 m
Package width173 mm
Package depth29.5 mm
Package height153 mm
Package weight330 g


Product data sheet
Datasheet for Be quiet! BL134, EAN: 4260052192894
