Be quiet! BL132 Fan 120×120×25 Light Wings LX PWM Reverse Black

Your rating:
Average rating
product review for Be quiet! BL132 Fan 120×120×25 Light Wings LX PWM Reverse Black
( 4 / 5 ) 2 ratings
Be quiet! BL132
This image may differ from the desired article.
Be quiet! BL132Be quiet! BL132Be quiet! BL132
16,93 EUR
( 20,15 EUR incl. VAT )
≈ £14.17  |  ≈ $18.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Be quiet! BL132 Fan 120×120×25 Light Wings LX PWM Reverse Black
Datasheet:file_download Download
Lieske Part No.:1045316
Mfg Part No: BL132
UPC/EAN: 4260052192870
Weight:0.16 kg
Type:CPNT

Product information for Be quiet! BL132:

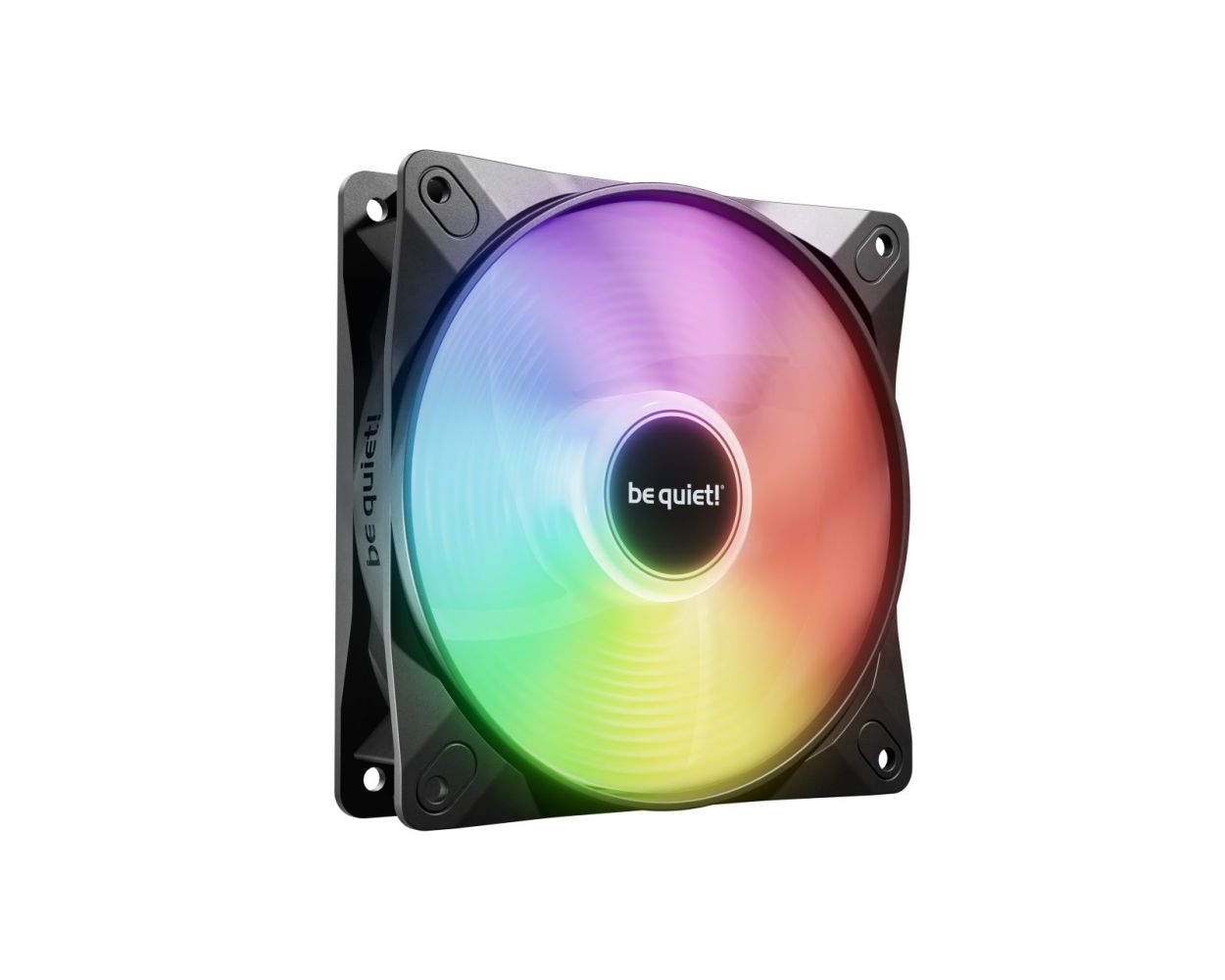

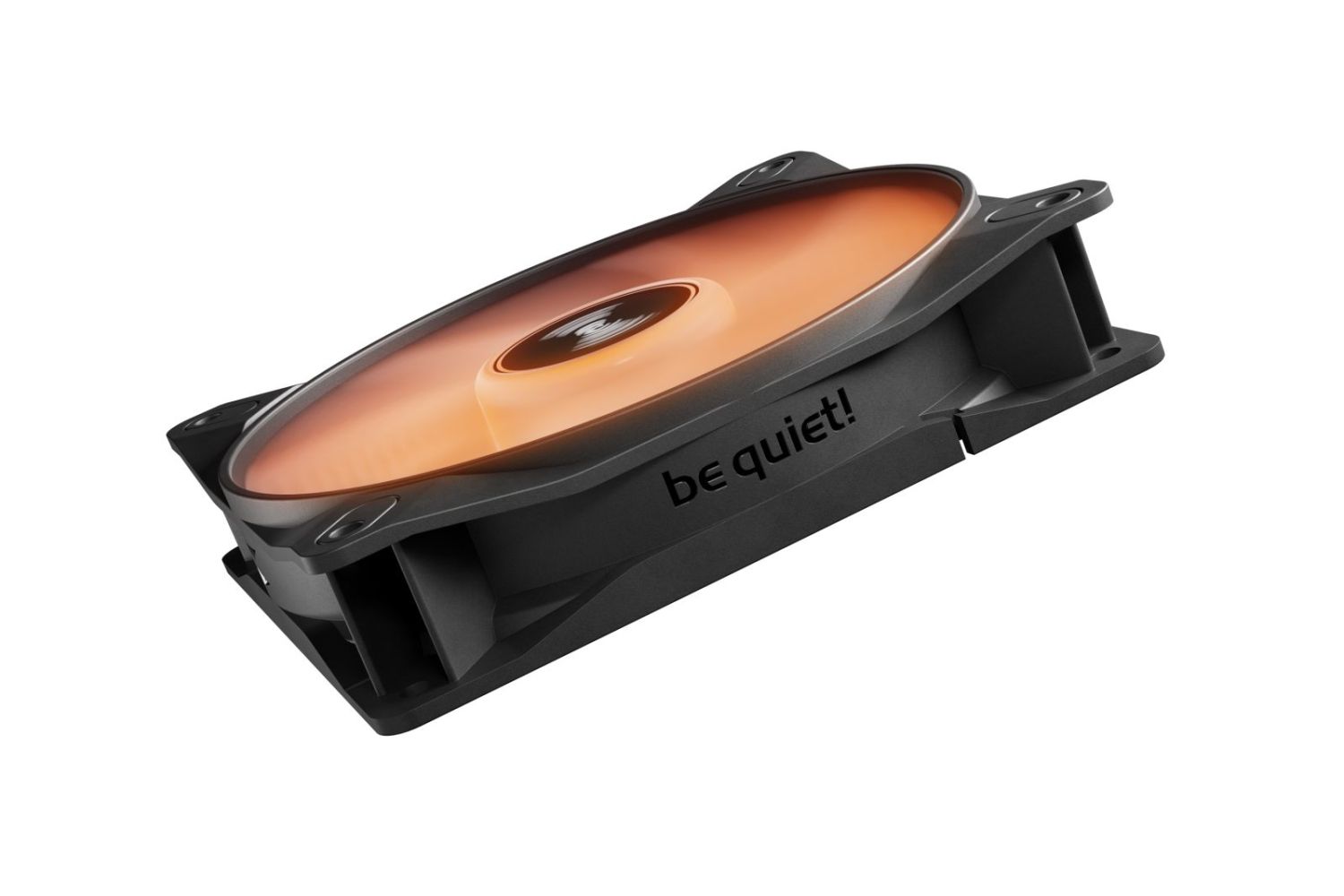

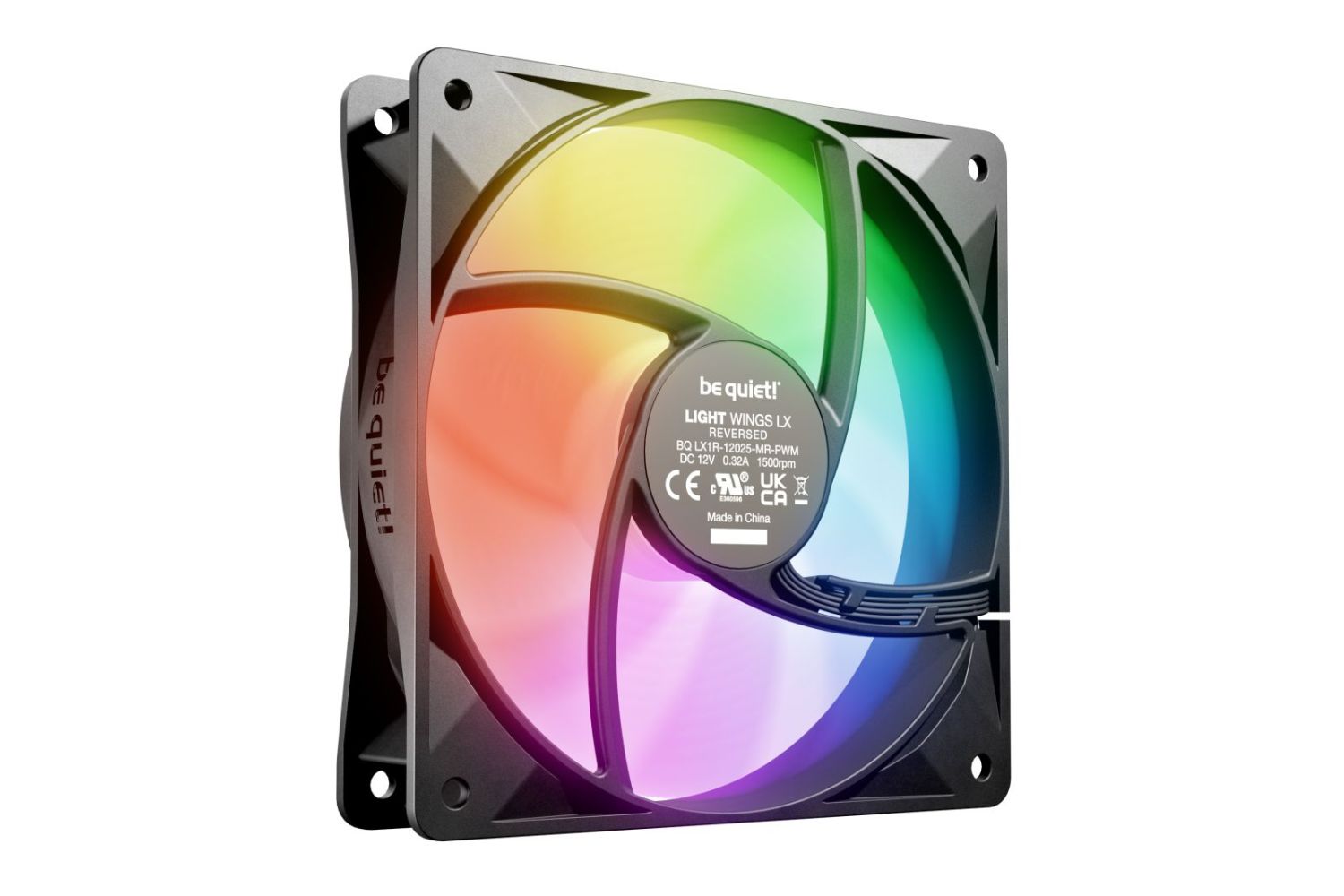

The be quiet! Light Wings LX 120 mm PWM Reverse Black is a 12-cm computer case fan designed for installation in the side panel or at the bottom of the case. It features inverted fan blades that generate high air pressure, making it particularly suitable for installation locations with resistance, such as the lower section of a case. The fan is equipped with ARGB lighting, which uses 16 LEDs, an illuminated hub, and matte fan blades to create visual effects. The lighting allows for individual color and effect variations, making the fan a visual highlight in gaming and multimedia systems, as well as in black or white showcases with glass or mesh openings.

Applications

The fan is ideal for use as a side or bottom intake in computer cases, where high air pressure is required to draw air through tighter or obstructed areas. It is particularly suitable for systems where visual design with colorful lighting is a priority. The inverted blade shape ensures efficient airflow even at low RPM, making it suitable for quiet operating conditions.

Features and Equipment in Detail

The fan features 7 optimized and inverted fan blades that generate an air pressure of 1.04 mmH2O at a maximum speed of 1500 RPM. The airflow is 83 m³/h (48.8 cfm), providing sufficient cooling performance for standard and high-performance systems. The ARGB lighting is powered via a 5V-ARGB cable, enabling daisy chaining, so multiple fans can be connected together. The lighting is designed for individual system customization.

Technology Explained Simply

The fan operates with a rifle bearing, which enables a lifespan of up to 60,000 hours at 25 °C operating temperature. The speed is controlled via PWM (pulse width modulation), allowing precise adjustment of the fan speed according to cooling requirements. The minimum speed is very low, resulting in quiet operation — at maximum speed, the noise level is 28.5 dB(A). The voltage range is between 5 and 13.2 V, with a nominal voltage of 12 V. The fan’s power consumption is 3.8 W (nominal current 0.39 A), while the 1.2 W value stated in the datasheet refers to the total consumption of both the fan and the lighting.

Compatibility and Accessories

The fan is equipped with a 3-pin connector for power supply and PWM control. The ARGB cable allows daisy-chaining with other ARGB-compatible components. The package includes 4 fan screws required for mounting in the case. The fan dimensions are 120 x 120 x 25 mm (W x D x H), fitting standard 120-mm openings. The cable length is 0.5 m.

Installation and Mounting

Installation is done using the included screws into the designated holes in the case. The fan can be installed in various positions, with the inverted blade shape being especially suitable for side or bottom mounting. PWM control requires a corresponding connection on the motherboard or an external controller to adjust the fan speed.

Operational Advantages

The fan offers a combination of high cooling performance and quiet operation, with PWM control enabling adjustment according to cooling needs. The ARGB lighting allows for individual system design, and daisy chaining enables synchronized control of multiple fans. The long lifespan of the rifle bearing ensures reliable and maintenance-free use over a long period. The warranty is 3 years.

Product conception, design, and quality control are carried out in Germany. Certifications include CE, RoHS, UKCA, and WEEE. The product carries the sustainability certification Triman.

Design
Product colourBlack
Number of fans1 fan(s)
Illumination colourMulti
Fan connector3-pin
Display typeNot applicable
Illumination LEDYes
Logistics data
Products per shipping (inner) case60 pc(s)
Shipping (inner) case width43.3 cm
Shipping (inner) case length31.9 cm
Shipping (inner) case height29 cm
Shipping (inner) case gross weight10.8 kg
Packaging content
Number of screws4
Screws includedYes
Performance
Suitable locationComputer case
TypeFan
Fan diameter12 cm
Rotational speed (max)1500 RPM
Noise level (high speed)28.5 dB
Maximum airflow48.8 cfm
Airflow83 m³/h
Maximum air pressure1.04 mmH2O
Bearing typeRifle bearing
Quantity per pack1 pc(s)
Fan's mean time to failure (MTTF)60000 h
Pulse-width modulation (PWM) supportYes
Power
Voltage5 - 13.2 V
Rated voltage12 V
Fan power consumption3.8 W
Rated current0.39 A
Fan current0.1 A
Technical details
Sustainability certificatesTriman
Warranty period3 year(s)
Compliance certificatesCE, RoHS, UKCA, WEEE
Weight & dimensions
Height120 mm
Fan dimensions (W x D x H)120 x 120 x 25 mm
Fan weight133 g
Cable length0.5 m
Package width164 mm
Package depth27 mm
Package height122 mm
Package weight170 g


Product data sheet
Datasheet for Be quiet! BL132, EAN: 4260052192870

Questions & answers

What is the delivery time of Be quiet! BL132 Fan 120×120×25 Light Wings LX PWM Reverse Black ?

The article Be quiet! BL132 Fan 120×120×25 Light Wings LX PWM Reverse Black is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Be quiet! BL132 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Be quiet! BL132 Fan 120×120×25 Light Wings LX PWM Reverse Black always at the best possible price. We can give you a discount of 2% on Be quiet! BL132 Fan 120×120×25 Light Wings LX PWM Reverse Black if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
