Be quiet! BL109 Fan 140×140×25 Pure Wings 3 PWM high-speed

Your rating:
Average rating
product review for Be quiet! BL109 Fan 140×140×25 Pure Wings 3 PWM high-speed
( 4.7 / 5 ) 3 ratings
Be quiet! BL109
This image may differ from the desired article.
Be quiet! BL109Be quiet! BL109Be quiet! BL109Be quiet! BL109
12,51 EUR 12,53 EUR
( 14,89 EUR incl. VAT )
≈ £10.47  |  ≈ $13.75
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >25 pieces
1x Be quiet! BL109 Fan 140×140×25 Pure Wings 3 PWM high-speed
Datasheet:file_download Download
Lieske Part No.:1211359
Mfg Part No: BL109
UPC/EAN: 4260052190814
Weight:0.221 kg
Type:CPNT

Product information for Be quiet! BL109:

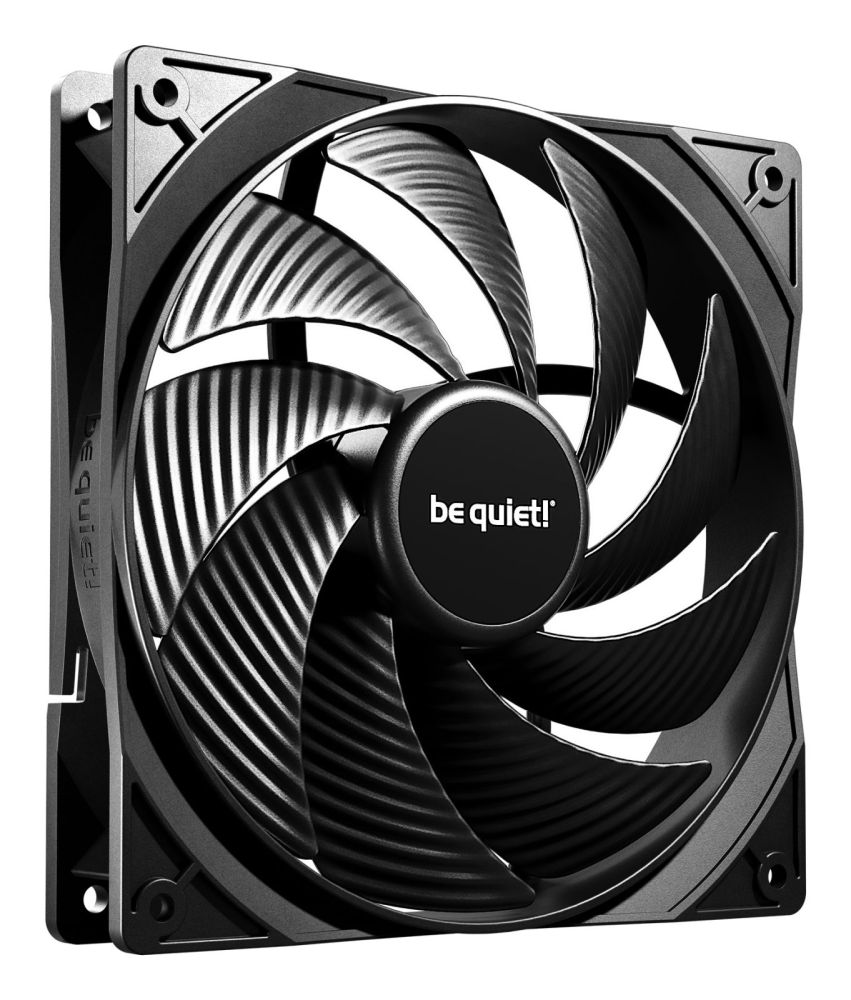

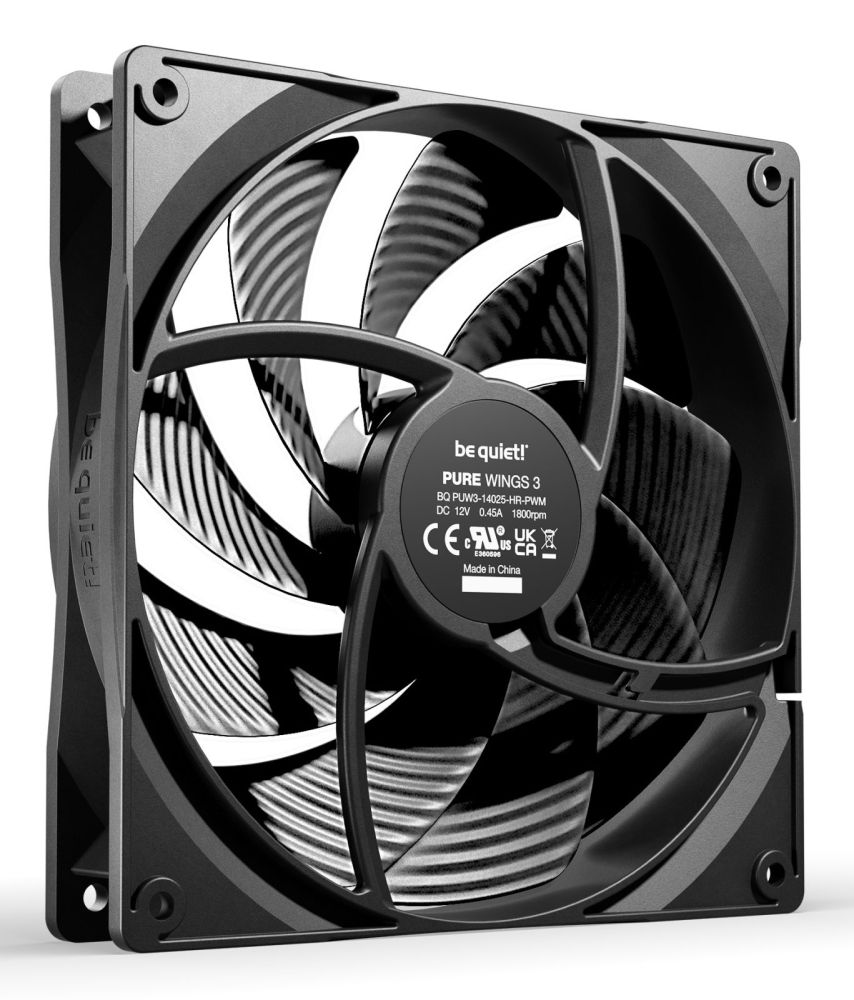

The be quiet! Pure Wings 3 140mm PWM high-speed is a computer case fan with a diameter of 14 cm, specifically designed for systems requiring high airflow performance and simultaneously quiet operating conditions. The fan is designed for use in gaming and multimedia PCs as well as in demanding water and air cooling configurations. It features a 4-pin PWM interface, enabling precise speed control, and operates at a voltage of 5 to 13.2 V, with a nominal voltage of 12 V. The maximum rotational speed is 1800 rpm, at which the fan generates an airflow of 122.6 m³/h. The maximum air pressure is 2.44 mmH2O, making it particularly suitable for applications with high resistance, such as radiators.

Applications

The fan is ideal for systems with high thermal requirements, especially in gaming and multimedia PCs, where efficient cooling combined with noise reduction is required. It is also suitable for high-performance water and air cooling configurations, where high air pressure is necessary to effectively dissipate heat. The construction with optimized fan blades and a newly designed frame minimizes air losses and ensures improved cooling performance. Use in silent systems is also possible, as the fan operates very quietly at low speeds.

Features and Equipment in Detail

The fan features a rifle bearing, enabling a service life of up to 80,000 operating hours at an ambient temperature of 25 °C. The integrated PWM control allows precise adjustment of the rotational speed according to the load, achieving optimal cooling performance both at high power and under low loads. The maximum noise level is 30.5 dB(A) at full speed, which is considered quiet for a fan of this performance class. The power consumption is 6 W at an operating voltage of 12 V, corresponding to a current of 0.12 A.

Technology Explained Simply

The fan uses closed-loop motor technology, which maintains a constant rotational speed regardless of air resistance. This ensures reliable cooling performance, even under high air resistance. The fan blades are newly designed and angled to maximize air pressure. The frame is optimized to minimize air losses, thereby increasing overall performance. Power supply is via a 4-pin cable with a length of 0.46 m, which can be connected directly to the motherboard connector or an external PWM controller.

Compatibility and Accessories

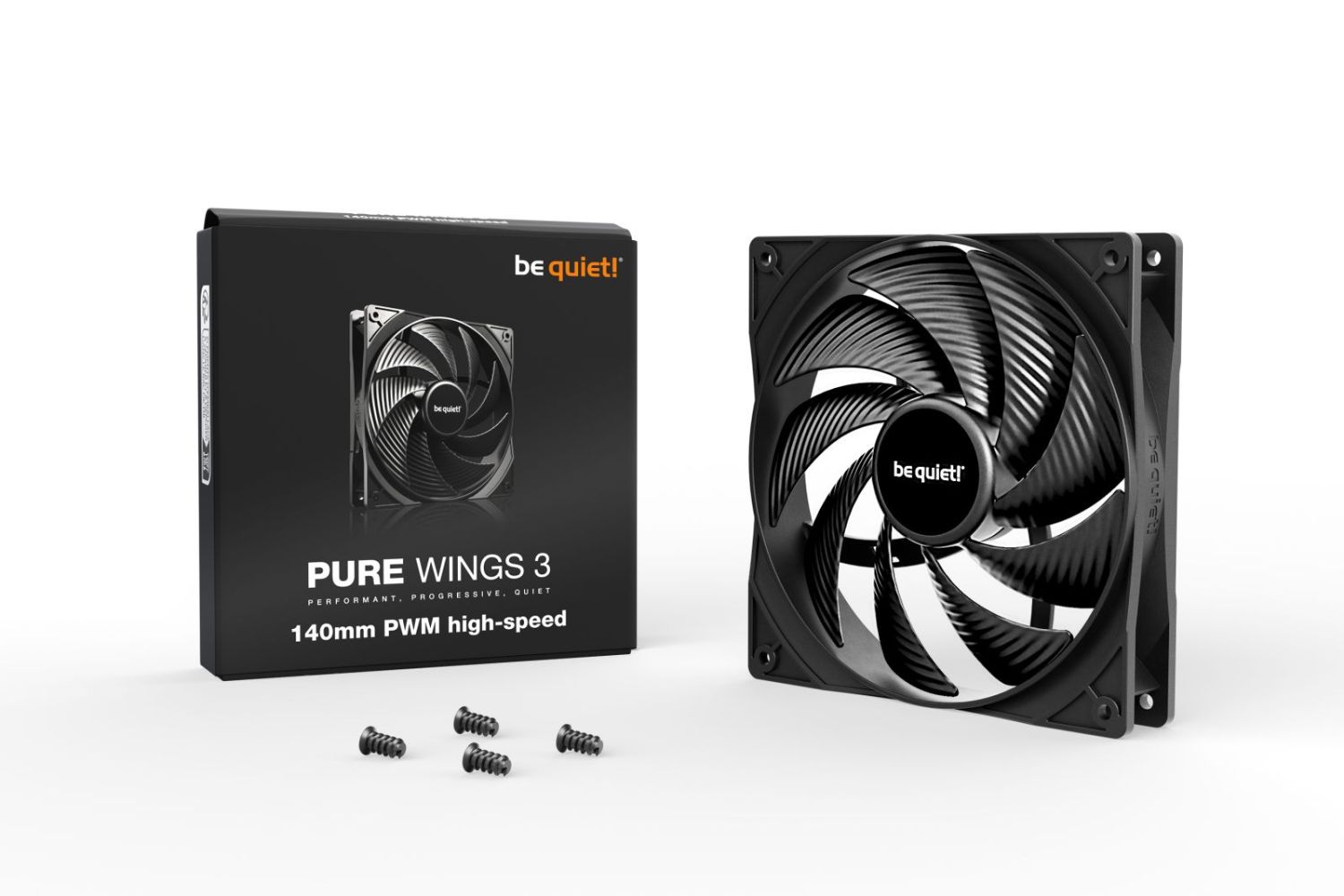

The fan is designed for standard 140 mm installations in computer cases and fits most cases that support a 140 mm fan opening. The delivery includes four mounting screws for securing the fan in the case. Compatibility with other be quiet! products, particularly radiators and heatsinks, is ensured, as the fan technology is tailored to the requirements of high-performance cooling systems.

Installation and Mounting

Installation is performed by securing the screws at the designated mounting points in the case. The cable length of 0.46 m allows for flexible positioning, with the connection made to a 4-pin PWM connector. Mounting requires no special tools, as the screws can be tightened with a standard screwdriver. The fan should be positioned to ensure optimal airflow into the system, for example in the front or rear area of the case.

Operational Advantages

The fan offers an excellent combination of high airflow performance and low noise level. The service life of 80,000 hours ensures high reliability, and the PWM control enables flexible adaptation to different operating conditions. The construction with rifle bearing and closed-loop regulation ensures stable and quiet operation, even under load. The black color and slim design seamlessly integrate into modern PC cases.

Sustainability and Compliance

The fan meets the requirements of CE, RoHS, and UKCA certification and is marked with the WEEE compliance symbol. It also carries the Triman sustainability certificate, indicating environmentally conscious manufacturing. Product development, design, and quality control take place in Germany, ensuring high product quality.

Design
Product colourBlack
Number of fans1 fan(s)
Fan connector4-pin
Display typeNot applicable
Illumination LEDNo
Logistics data
Products per shipping (inner) case72 pc(s)
Shipping (inner) case width39.5 cm
Shipping (inner) case length48.2 cm
Shipping (inner) case height37 cm
Shipping (inner) case gross weight17.5 kg
Packaging content
Number of screws4
Screws includedYes
Performance
Suitable locationComputer case
TypeFan
Fan diameter14 cm
Rotational speed (max)1800 RPM
Noise level (high speed)30.5 dB
Maximum airflow72.2 cfm
Airflow122.6 m³/h
Maximum air pressure2.44 mmH2O
Bearing typeRifle bearing
Fan bearing technologyRifle bearing
Quantity per pack1 pc(s)
Fan's mean time to failure (MTTF)80000 h
Pulse-width modulation (PWM) supportYes
Power
Voltage5 - 13.2 V
Rated voltage12 V
Fan power consumption6 W
Fan current0.12 A
Technical details
Sustainability certificatesTriman
Compliance certificatesCE, RoHS, UKCA, WEEE
Sustainability complianceYes
Weight & dimensions
Width140 mm
Depth140 mm
Height25 mm
Weight188 g
Cable length0.46 m
Package width142 mm
Package depth174 mm
Package height27 mm
Package weight221 g


Product data sheet
Datasheet for Be quiet! BL109, EAN: 4260052190814

Questions & answers

What is the delivery time of Be quiet! BL109 Fan 140×140×25 Pure Wings 3 PWM high-speed ?

The article Be quiet! BL109 Fan 140×140×25 Pure Wings 3 PWM high-speed is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Be quiet! BL109 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Be quiet! BL109 Fan 140×140×25 Pure Wings 3 PWM high-speed always at the best possible price. We can give you a discount of 2% on Be quiet! BL109 Fan 140×140×25 Pure Wings 3 PWM high-speed if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
