Be Quiet! Logo

Be quiet! BL106 Fan 120×120×25 Pure Wings 3 PWM high-speed

Your rating:
Average rating
product review for Be quiet! BL106 Fan 120×120×25 Pure Wings 3 PWM high-speed
( 4 / 5 ) 1 ratings
Be quiet! BL106
This image may differ from the desired article.
Be quiet! BL106Be quiet! BL106Be quiet! BL106Be quiet! BL106
11,37 EUR 11,79 EUR
( 13,53 EUR incl. VAT )
≈ £9.52  |  ≈ $12.50
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Be quiet! BL106 Fan 120×120×25 Pure Wings 3 PWM high-speed
Datasheet:file_download Download
Lieske Part No.:1211356
Mfg Part No: BL106
UPC/EAN: 4260052190784
Weight:0.178 kg
Type:CPNT

Product information for Be quiet! BL106:

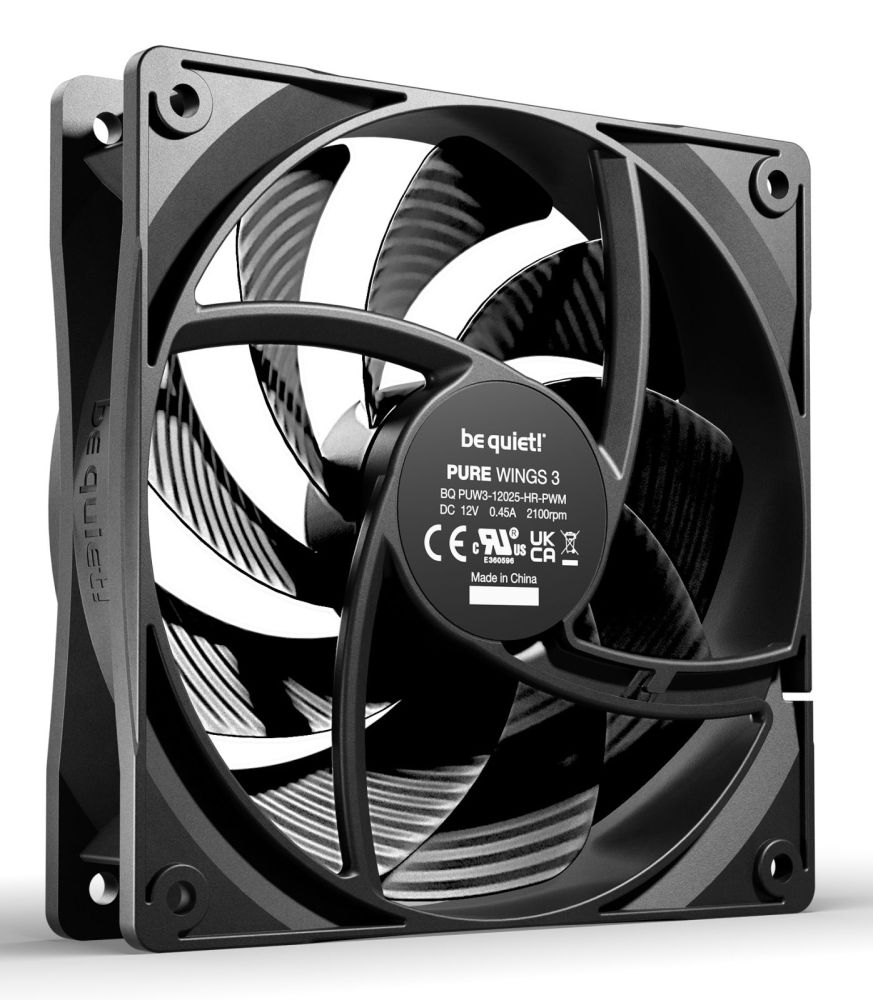

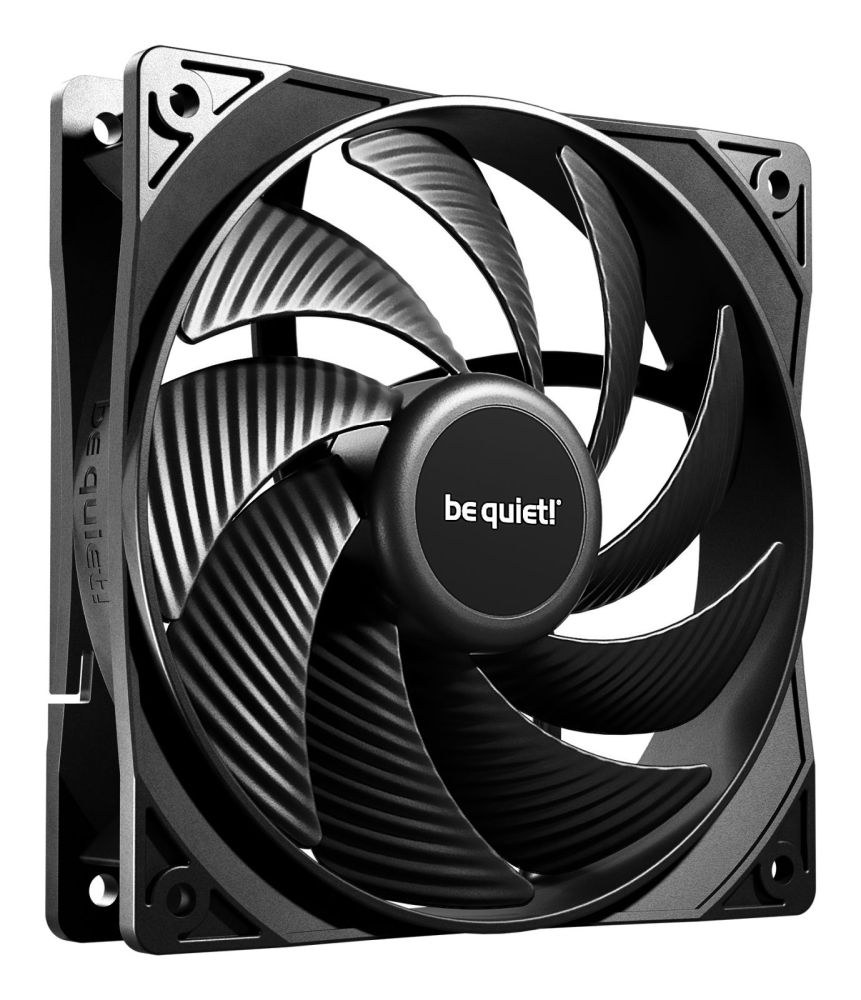

The be quiet! Pure Wings 3 120mm PWM high-speed is a computer case-compatible fan with a diameter of 12 cm, designed for applications requiring high airflow and pressure. The fan features a 4-pin PWM interface, enabling precise speed control via the motherboard. It is specifically designed for use in gaming and multimedia systems, as well as in demanding PC builds with water or air cooling. The closed-loop motor design ensures stable rotational speed even under high air resistance, which is particularly beneficial for coolers with narrow channels or radiators.

Applications
This fan is particularly suitable for systems requiring high air pressure to force air through dense coolers or radiators. It is ideal for use on the front or rear of a computer case, where it can function as an intake or exhaust fan. The high airflow performance of 101.2 m³/h and a maximum air pressure of 2.41 mmH2O enable efficient cooling even in complex setups. Use in silent systems is also possible, as the fan operates very quietly at low speeds.

Features and Equipment in Detail
The fan reaches a maximum rotational speed of 2100 rpm, with a noise level of 30.9 dB(A) at full load. The optimized blade shape and newly designed angle ensure particularly high air pressure, increasing efficiency when cooling components with high heat output. The use of a rifle bearing ensures a long service life of up to 80,000 operating hours at an ambient temperature of 25 °C. The black color design integrates well visually into most computer cases.

Technology Explained Simply
The PWM control (pulse width modulation) allows fine adjustment of fan speed according to actual cooling requirements, enabling quieter operation at low loads. The voltage range of 5 to 13.2 V indicates that the fan can also be operated at lower voltages, which may be relevant for special power supplies or modifications. The nominal voltage is 12 V, the standard for PC fans. Power consumption is 3.6 W, equivalent to a current draw of 0.13 A. The cable length is 0.46 m, sufficient for connecting the fan in typical PC environments.

Compatibility and Accessories
The fan is designed for standard 120-mm installations in computer cases and fits into common mounting openings. The included screws (4 pieces) allow for easy installation. Use in combination with other be quiet! fans or coolers is possible, especially in systems requiring consistent cooling performance. Compliance with standards such as CE, RoHS, UKCA, and WEEE indicates that the fan meets European safety and environmental standards. Additionally, it is awarded the Triman sustainability certification.

Installation and Mounting
Mounting is done using the included screws at the designated mounting points in the case. The 4-pin connector is connected to the corresponding PWM port on the motherboard or a control device. The cable length of 0.46 m is sufficient for most standard PC setups. Installation requires no special tools or additional components.

Advantages in Operation
The fan offers an excellent combination of high air pressure and sufficient airflow, making it particularly suitable for coolers with high resistance. The long service life of 80,000 hours reduces maintenance requirements. PWM control enables adjustable fan speed, allowing operation to be both quiet and powerful. The simple, black design integrates seamlessly into most systems without causing visual distractions.

Design
Product colourBlack
Number of fans1 fan(s)
Fan connector4-pin
Display typeNot applicable
Illumination LEDNo
Logistics data
Products per shipping (inner) case60 pc(s)
Shipping (inner) case width35.5 cm
Shipping (inner) case length42.7 cm
Shipping (inner) case height33 cm
Shipping (inner) case gross weight11.8 kg
Packaging content

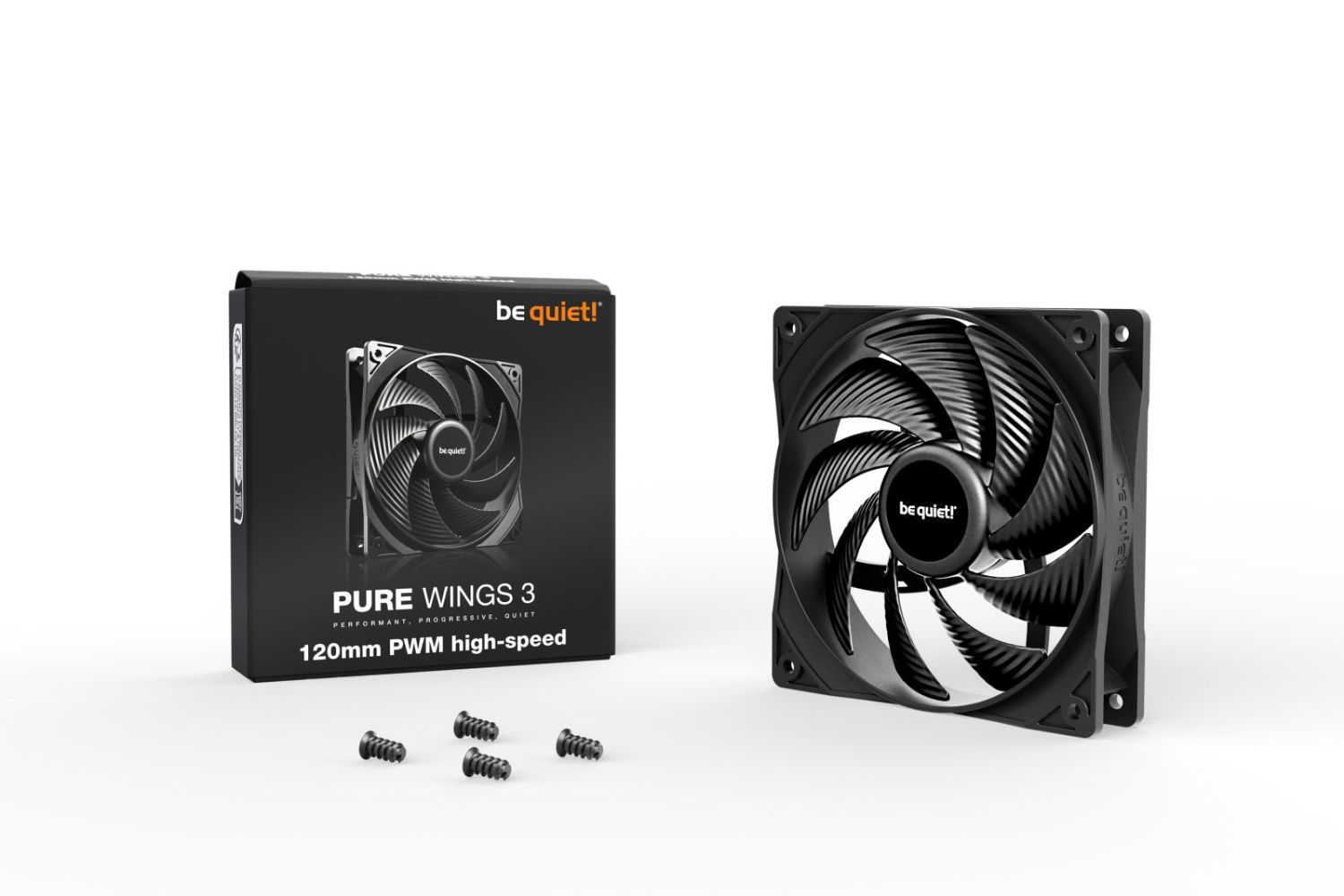

Number of screws4
Screws includedYes
Performance
Suitable locationComputer case
TypeFan
Fan diameter12 cm
Rotational speed (max)2100 RPM
Noise level (high speed)30.9 dB
Maximum airflow59.6 cfm
Airflow101.2 m³/h
Maximum air pressure2.41 mmH2O
Bearing typeRifle bearing
Fan bearing technologyRifle bearing
Quantity per pack1 pc(s)
Fan's mean time to failure (MTTF)80000 h
Pulse-width modulation (PWM) supportYes
Power
Voltage5 - 13.2 V
Rated voltage12 V
Fan power consumption3.6 W
Fan current0.13 A
Technical details
Sustainability certificatesTriman
Compliance certificatesCE, RoHS, UKCA, WEEE
Sustainability complianceYes
Weight & dimensions
Width120 mm
Depth120 mm
Height25 mm
Weight149 g
Cable length0.46 m
Package width122 mm
Package depth155 mm
Package height27 mm
Package weight176 g


Product data sheet
Datasheet for Be quiet! BL106, EAN: 4260052190784

Questions & answers

What is the delivery time of Be quiet! BL106 Fan 120×120×25 Pure Wings 3 PWM high-speed ?

The article Be quiet! BL106 Fan 120×120×25 Pure Wings 3 PWM high-speed is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Be quiet! BL106 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Be quiet! BL106 Fan 120×120×25 Pure Wings 3 PWM high-speed always at the best possible price. We can give you a discount of 2% on Be quiet! BL106 Fan 120×120×25 Pure Wings 3 PWM high-speed if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
