Be quiet! BL105 Fan 120×120×25 Pure Wings 3 PWM

Your rating:
Average rating
product review for Be quiet! BL105 Fan 120×120×25 Pure Wings 3 PWM
( 4.3 / 5 ) 3 ratings
Be quiet! BL105
This image may differ from the desired article.
Be quiet! BL105Be quiet! BL105Be quiet! BL105
11,37 EUR
( 13,53 EUR incl. VAT )
≈ £9.52  |  ≈ $12.50
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >25 pieces
1x Be quiet! BL105 Fan 120×120×25 Pure Wings 3 PWM
Datasheet:file_download Download
Lieske Part No.:2120152
Mfg Part No: BL105
UPC/EAN: 4260052190777
Weight:0.18 kg
Type:CPNT

Product information for Be quiet! BL105:

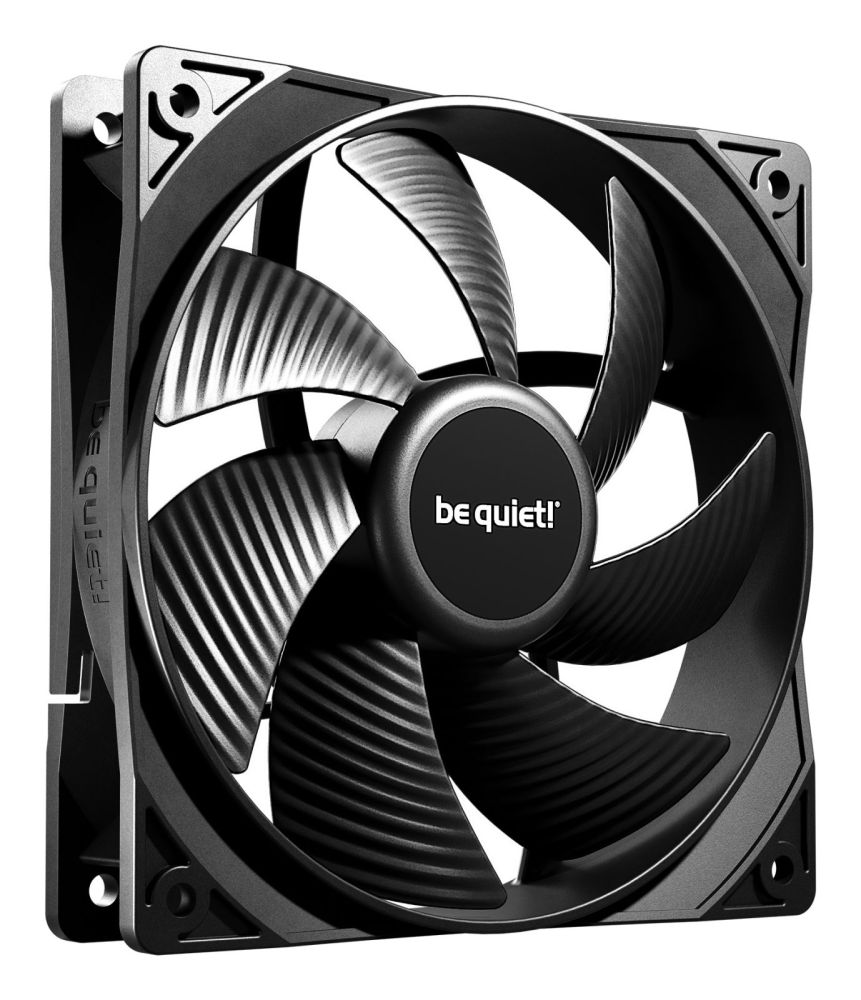

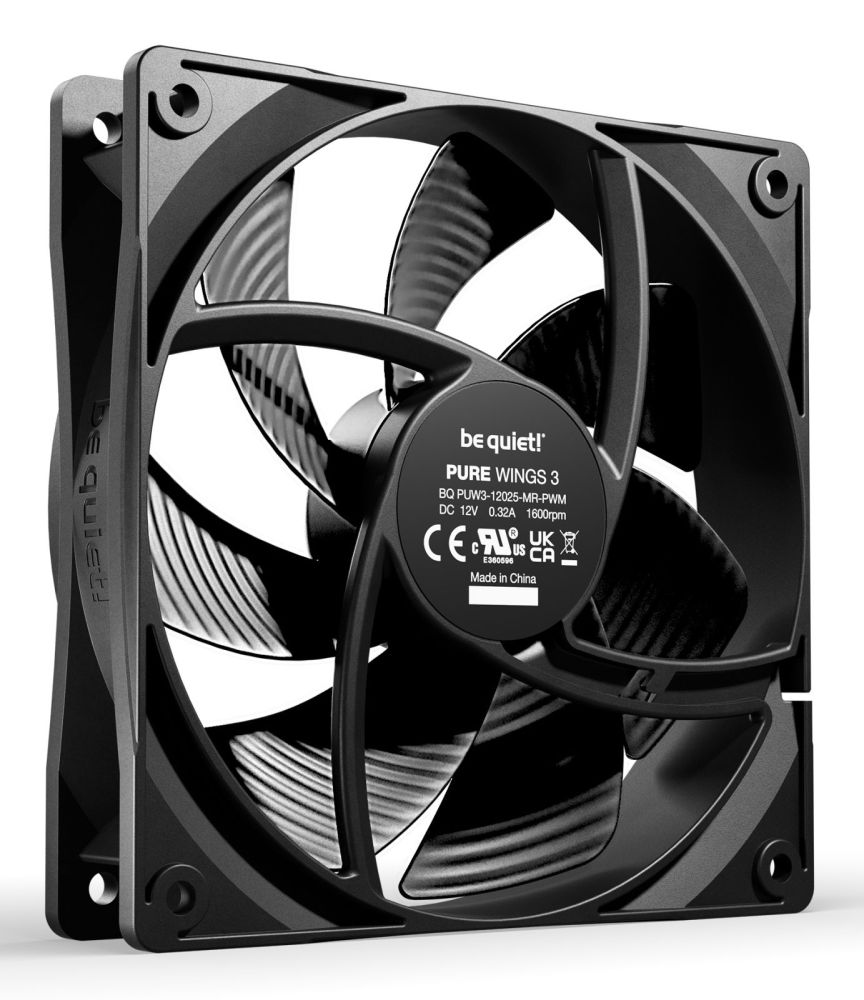

The be quiet! Pure Wings 3 120mm PWM is a computer fan for cooling computer enclosures, developed for systems requiring efficient and quiet air circulation. The fan has a 12 cm diameter and is equipped with a 4-pin connector supporting Pulse Width Modulation (PWM). This technology enables precise control of rotational speed, allowing the fan to automatically adjust its RPM according to system load. The maximum rotational speed is 1600 revolutions per minute (RPM), achieving an airflow of 84.8 m³/h at full speed. The maximum air pressure is 1.45 mmH2O, making it suitable for applications with increased resistance, such as radiators. The fan operates at a noise level of 25.5 dB(A) at high speed, ensuring quiet operation even under load. Power supply is via a voltage range of 5 to 13.2 V, with a nominal voltage of 12 V. Power consumption is 2.4 W, and current draw is 0.1 A. The fan’s lifespan is specified with a mean time to failure (MTTF) of 80,000 hours at 25 °C, indicating high reliability.

Applications

The fan is designed for gaming and multimedia systems as well as demanding PC builds. It is particularly suitable for water and air cooling systems where high air pressure performance and low noise emission are required. It is also appropriate for quiet systems where minimal operational noise is important, as it operates very quietly at low RPM. The optimized shape of the fan blades and the redesigned angle ensure efficient airflow and minimize air losses, enhancing cooling performance.

Features and Equipment in Detail

The fan features a rifle bearing, ensuring long service life and stable rotational speed. The fan frame construction is designed to minimize air losses, improving overall performance. The 4-pin connector enables PWM control, allowing dynamic speed adjustment. The fan is black in color, allowing it to blend visually into most computer enclosures. Cable length is 0.46 m, sufficient for connecting the fan in typical PC setups.

Technology Explained Simply

The rifle bearing technology used ensures high rotational stability and minimizes vibrations, resulting in quieter and more reliable operation. PWM control allows precise adjustment of fan speed according to current cooling requirements, avoiding unnecessary noise. The air pressure of 1.45 mmH2O is particularly relevant for applications where the fan must push air through dense cooling materials, such as radiators. The airflow of 84.8 m³/h ensures sufficient air circulation within the enclosure. The voltage range of 5 to 13.2 V allows use in various systems with different power supplies.

Compatibility and Accessories

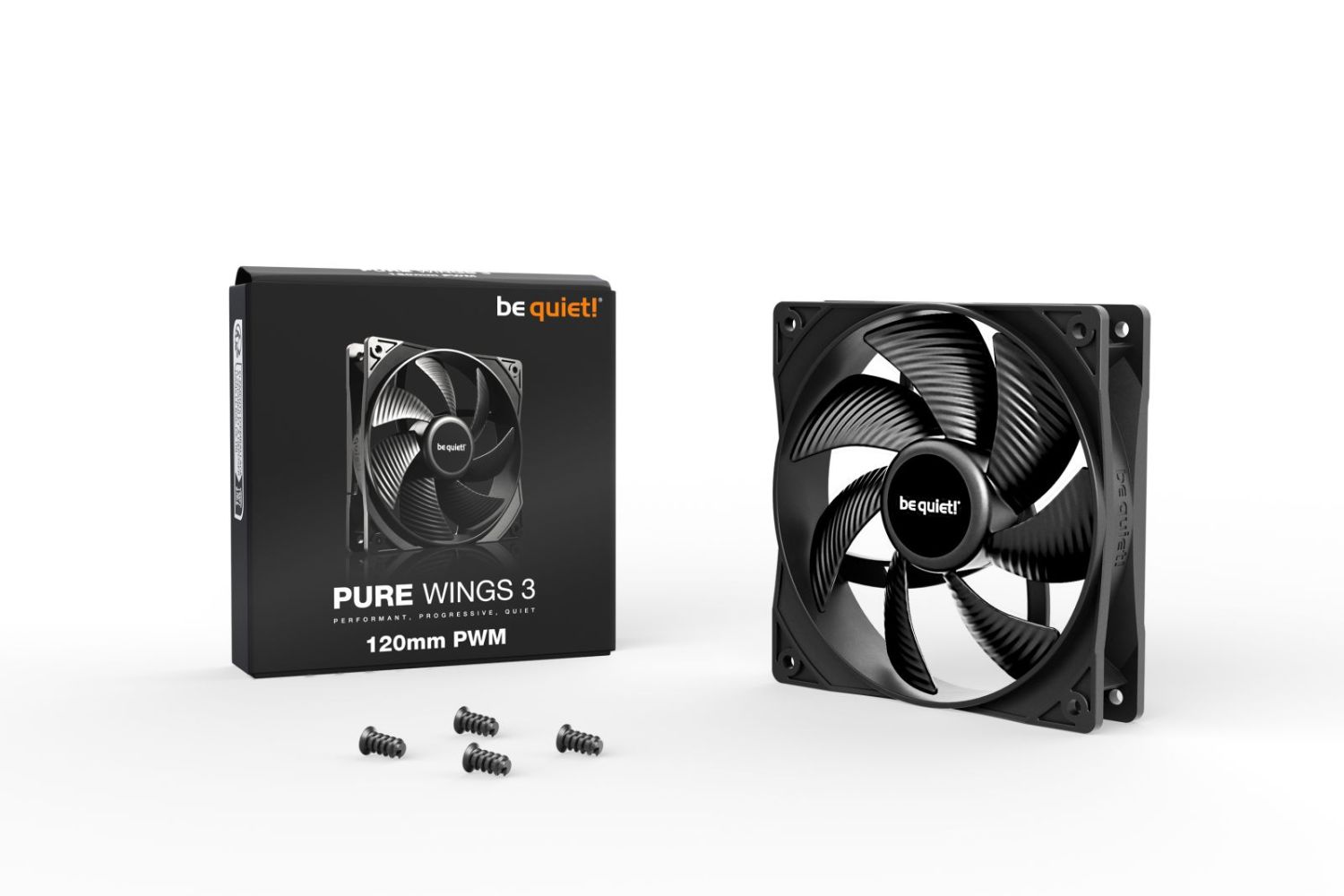

The fan is designed for standard 120 mm fan openings in computer enclosures. It is compatible with systems supporting a 4-pin PWM connector. The delivery includes 4 screws for mounting the fan in the enclosure. The screws are designed for attachment to standard 120 mm fan holes.

Installation and Mounting

Mounting is done by securing the fan to the designated mounting points in the computer enclosure using the included screws. The cable length of 0.46 m allows flexible positioning within the enclosure. The 4-pin connector requires a corresponding connection on the motherboard or a fan controller to utilize PWM control. Installation requires no special tools, as the screws can be mounted with a standard screwdriver.

Operational Advantages

The fan offers an excellent combination of performance and quiet operation. The long service life of 80,000 hours at 25 °C ensures long-term reliability. PWM control enables intelligent speed adjustment, allowing the fan to run quieter at low loads and increase cooling performance at high loads. The optimized fan geometry ensures efficient airflow and minimizes air losses, improving cooling performance. The black painted surface blends visually into most enclosure installations. The use of rifle bearings ensures stable and quiet rotation, enhancing operational safety.

Sustainability and Compliance

The fan complies with CE, RoHS, UKCA, and WEEE standards. It is equipped with the Triman sustainability certification, indicating environmentally friendly manufacturing and disposal. Product development, design, and quality control take place in Germany, indicating high product quality. The conformity certificates guarantee compliance with applicable European and British regulations.

Design
Product colourBlack
Number of fans1 fan(s)
Fan connector4-pin
Display typeNot applicable
Illumination LEDNo
Logistics data
Products per shipping (inner) case60 pc(s)
Shipping (inner) case width35.5 cm
Shipping (inner) case length42.7 cm
Shipping (inner) case height33 cm
Shipping (inner) case gross weight11.7 kg
Packaging content
Number of screws4
Screws includedYes
Performance
Suitable locationComputer case
TypeFan
Fan diameter12 cm
Rotational speed (max)1600 RPM
Noise level (high speed)25.5 dB
Maximum airflow49.9 cfm
Airflow84.8 m³/h
Maximum air pressure1.45 mmH2O
Bearing typeRifle bearing
Fan bearing technologyRifle bearing
Quantity per pack1 pc(s)
Fan's mean time to failure (MTTF)80000 h
Pulse-width modulation (PWM) supportYes
Power
Voltage5 - 13.2 V
Rated voltage12 V
Fan power consumption2.4 W
Fan current0.1 A
Technical details
Sustainability certificatesTriman
Compliance certificatesCE, RoHS, UKCA, WEEE
Sustainability complianceYes
Weight & dimensions
Width120 mm
Depth120 mm
Height25 mm
Weight148 g
Cable length0.46 m
Package width122 mm
Package depth155 mm
Package height27 mm
Package weight175 g


Product data sheet
Datasheet for Be quiet! BL105, EAN: 4260052190777
