Be quiet! BL097 Fan 140×140×25 SilentWings 4 PWM High-Speed

Your rating:
Average rating
product review for Be quiet! BL097 Fan 140×140×25 SilentWings 4 PWM High-Speed
( 0 / 5 ) 0 ratings
Be quiet! BL097
This image may differ from the desired article.
Be quiet! BL097Be quiet! BL097Be quiet! BL097Be quiet! BL097Be quiet! BL097
23,19 EUR 23,20 EUR
( 27,60 EUR incl. VAT )
≈ £19.41  |  ≈ $25.49
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Be quiet! BL097 Fan 140×140×25 SilentWings 4 PWM High-Speed
Datasheet:file_download Download
Lieske Part No.:1205807
Mfg Part No: BL097
UPC/EAN: 4260052188897
Weight:0.4 kg
Type:CPNT

Product information for Be quiet! BL097:

The be quiet! SilentWings 4 140mm PWM High-Speed fan (type CPNT, manufacturer number BL097) is a computer case fan designed for use in PC cases, radiators, and heat exchangers. With a fan diameter of 14 cm and a maximum rotational speed of 1900 rpm, it delivers a high airflow performance of 133.2 m³/h (78.4 cfm) at an air pressure of 2.36 mmH2O. The construction with optimized fan blades and a narrow gap between frame and blades ensures maximum efficiency, particularly for cooling radiators and heatsinks. The fan operates at a noise level of 29.3 dB(A) at full speed, ensuring quiet operation even under load.

Applications

The fan is suitable for use in high-end PC builds, powerful gaming systems, and computer cases with high cooling requirements. The high air pressure performance makes it especially suitable for applications with dense coolers or radiators, where a high static pressure is required to draw air through tight structures. Use in server or workstation environments is also possible, provided cooling requirements and space constraints are compatible.

Features and Equipment in Detail

The fan features a 4-pin PWM connector cable, enabling precise speed control via motherboard control. Power supply is via a voltage range of 5 to 13.2 V, with a nominal voltage of 12 V. Power consumption in standard operation is 4.8 W, indicating an energy-efficient design. The integrated support for Pulse Width Modulation (PWM) allows adaptive speed adjustment based on current load and temperature, thereby saving energy and minimizing noise.

Technology Explained Simply

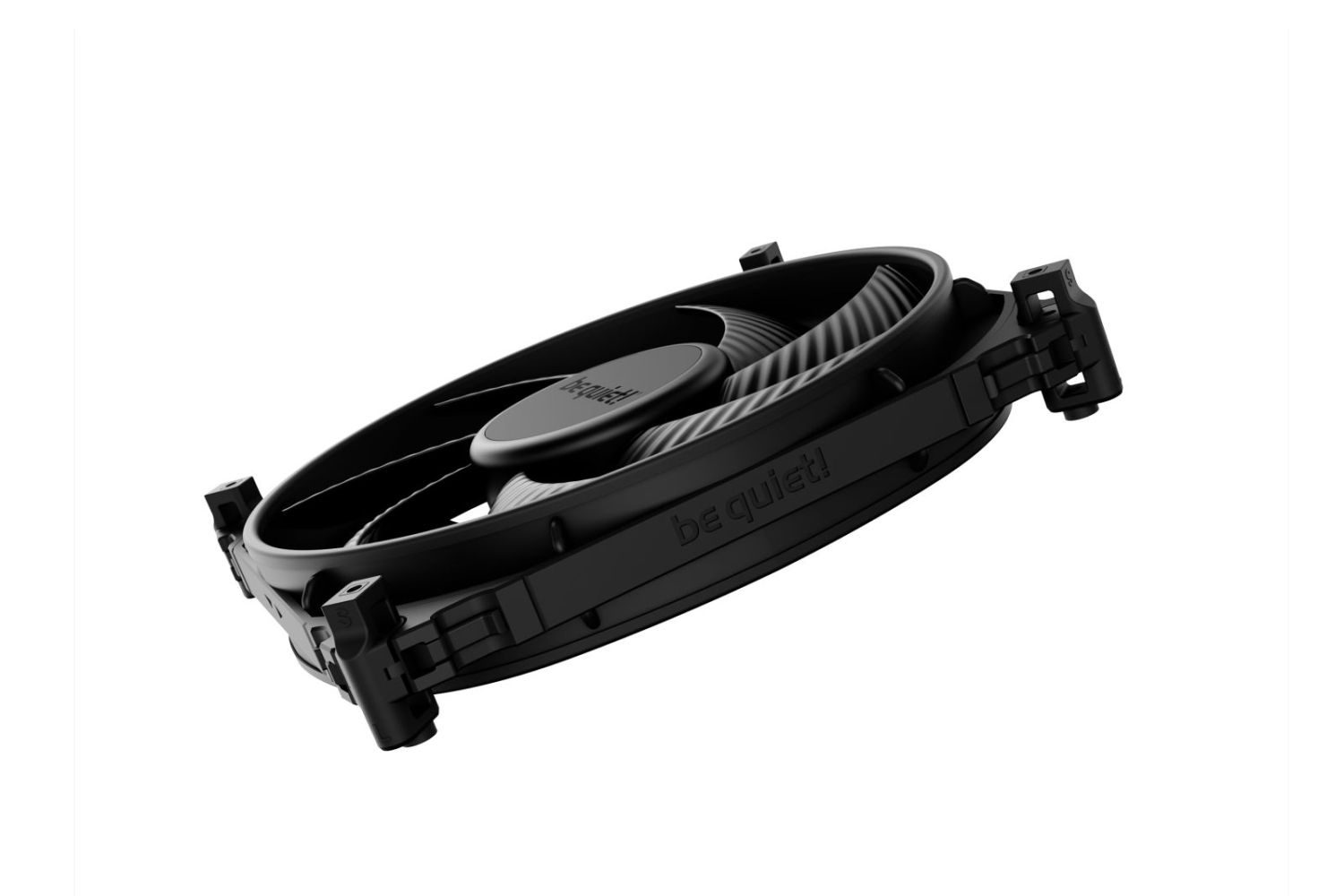

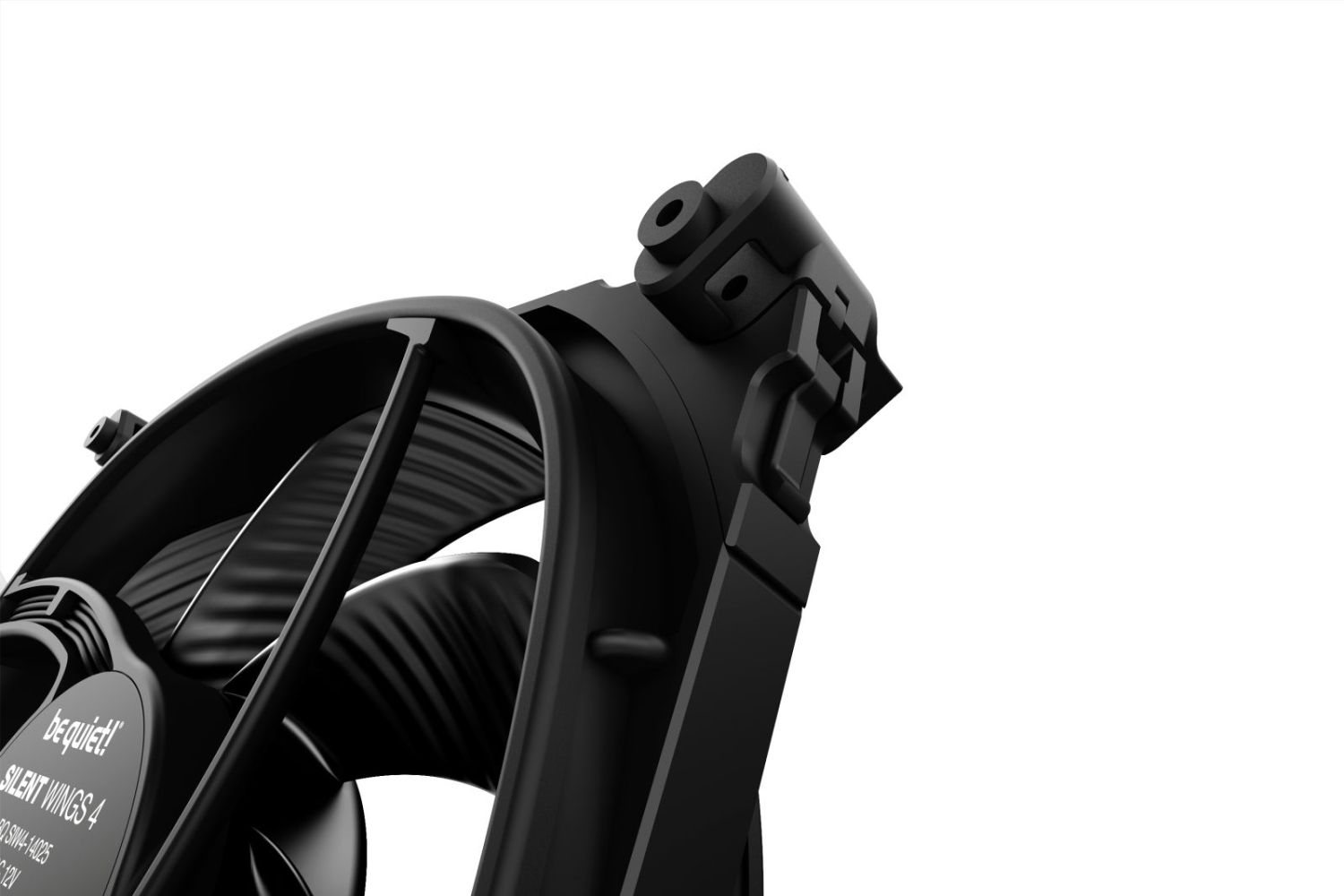

The fan is equipped with a fluid dynamic bearing (FDB), which ensures an exceptionally long service life of up to 300,000 operating hours at 25 °C ambient temperature. This bearing reduces vibrations and noise during operation, resulting in stable and quiet performance. The fan blades are designed to minimize air resistance while generating high air pressure. Mounting is possible via two different systems: an anti-vibration mounting with rubber elements and push-pins, and an alternative screw mounting. The rubber elements can be adjusted in two positions: in the L" direction for maximum decoupling (1 mm air gap between case and fan frame) or in the "S direction for flush mounting. The included screws and clips simplify installation.

Compatibility and Accessories

The fan is designed for standard PC cases with 140 mm fan openings. The 4-pin PWM connector is compatible with most modern motherboards. The mounting options allow for flexible installation, with the anti-vibration mounting further reducing noise emissions.

Mounting and Installation

Mounting is done using the included screws and clips. The anti-vibration mounting is secured by inserting the rubber elements into the designated holders and attaching the push-pins. The rubber elements can be adjusted to L" or "S position depending on requirements, to minimize vibrations or ensure flush mounting. Installation is simple and requires no special tools.

Operational Advantages

The fan stands out for its high airflow performance combined with low noise levels. The FDB bearing ensures long service life and minimal vibrations. PWM control enables intelligent speed adjustment according to system load, reducing both energy consumption and noise. The robust construction and easy installation make the fan a reliable solution for demanding cooling requirements in PC systems.

Certification and Safety

The fan meets the certifications CE, ROHS, RU, UKCA, TÜV, and WEEE, confirming compliance with European and international safety and environmental standards. Product safety is thus guaranteed, and disposal is carried out in accordance with applicable regulations.

Design and Color

The fan is black and features a high-quality, uniform design. The surface is smooth, and the logo is discreetly placed, creating a professional appearance. There is no integrated LED lighting, making it suitable for users who prefer discreet, interference-free cooling.

Manufacturer Warranty

The manufacturer be quiet! offers a 5-year warranty for end consumers who purchased the fan from an authorized dealer. Warranty claims require a copy of the purchase receipt. Modifications, structural changes, or damage caused by external mechanical forces will void the warranty.

Design
Product colourBlack
Number of fans1 fan(s)
Fan connector4-pin
Display typeNot applicable
CertificationCE / ROHS / RU / UKCA / TÜV / WEEE
Illumination LEDNo
Logistics data
Harmonized System (HS) code84733080
Products per shipping (inner) case32 pc(s)
Shipping (inner) case width31.7 cm
Shipping (inner) case length46.3 cm
Shipping (inner) case height38.8 cm
Shipping (inner) case gross weight13.7 kg
Other features
Country of originChina

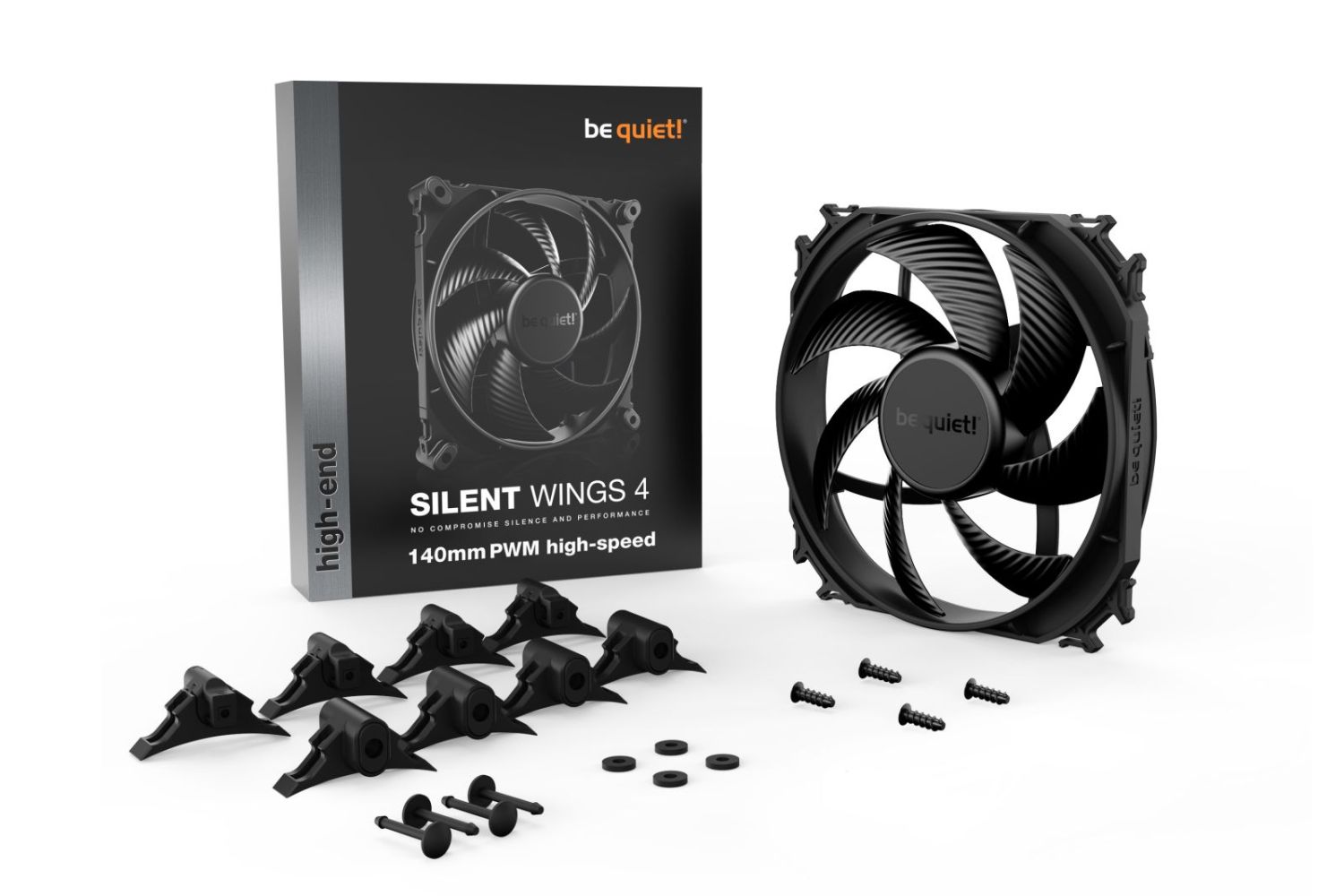

Packaging content
Number of screws4
Number of clips4
Screws includedYes
Performance
Suitable locationComputer case
TypeFan
Fan diameter14 cm
Rotational speed (max)1900 RPM
Noise level (high speed)29.3 dB
Maximum airflow78.4 cfm
Airflow133.2 m³/h
Maximum air pressure2.36 mmH2O
Bearing typeFluid Dynamic Bearing (FDB)
Quantity per pack1 pc(s)
Mean time between failures (MTBF)300000 h
Pulse-width modulation (PWM) supportYes
Power
Power consumption (typical)4.8 W
Voltage5 - 13.2 V
Rated voltage12 V
Rated current0.4 A
Maximum current0.4 A
Weight & dimensions

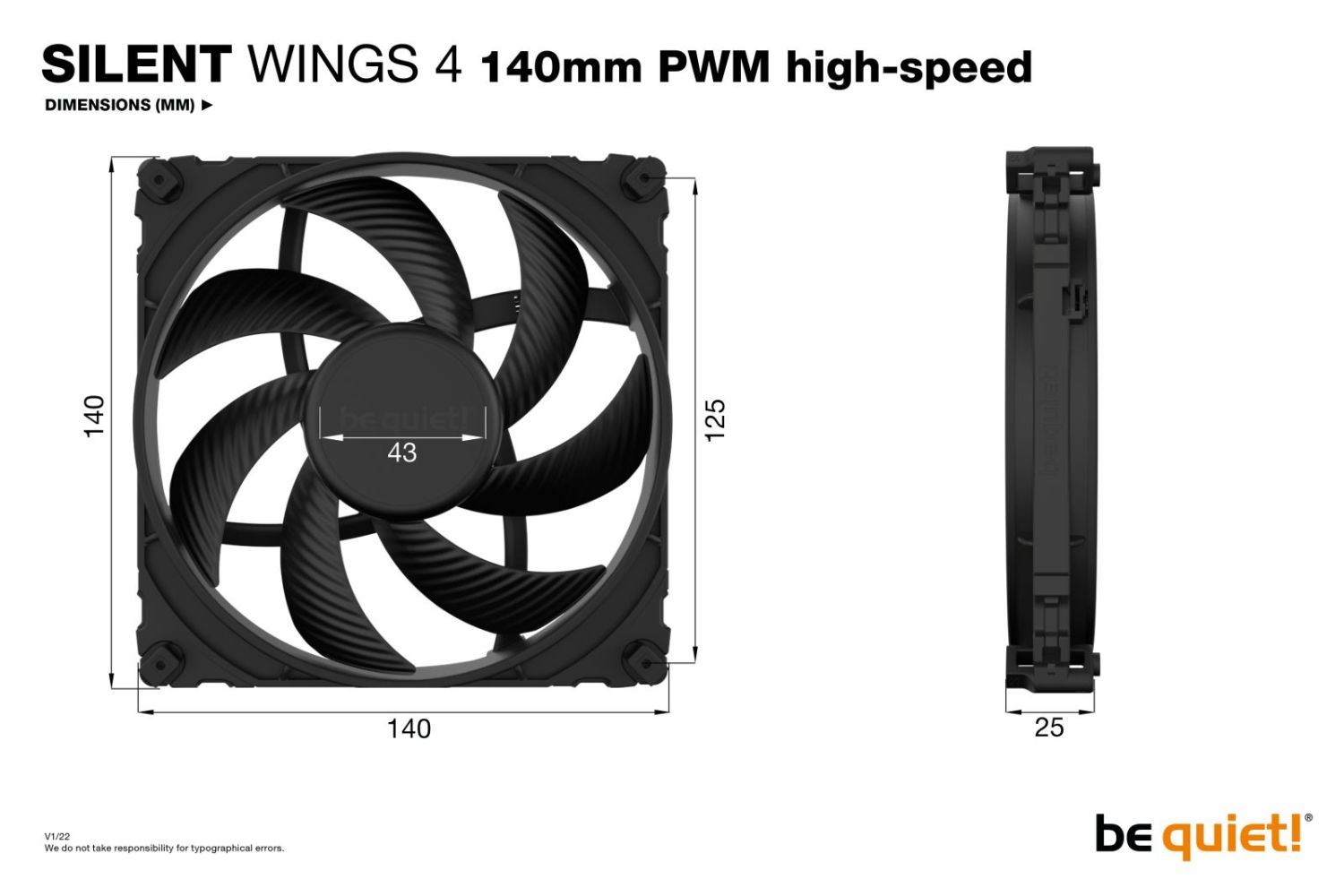

Width140 mm
Depth140 mm
Height25 mm
Weight220 g
Cable length0.5 m
Package width156 mm
Package depth206.5 mm
Package height31 mm
Package weight390 g


Product data sheet
Datasheet for Be quiet! BL097, EAN: 4260052188897
